Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

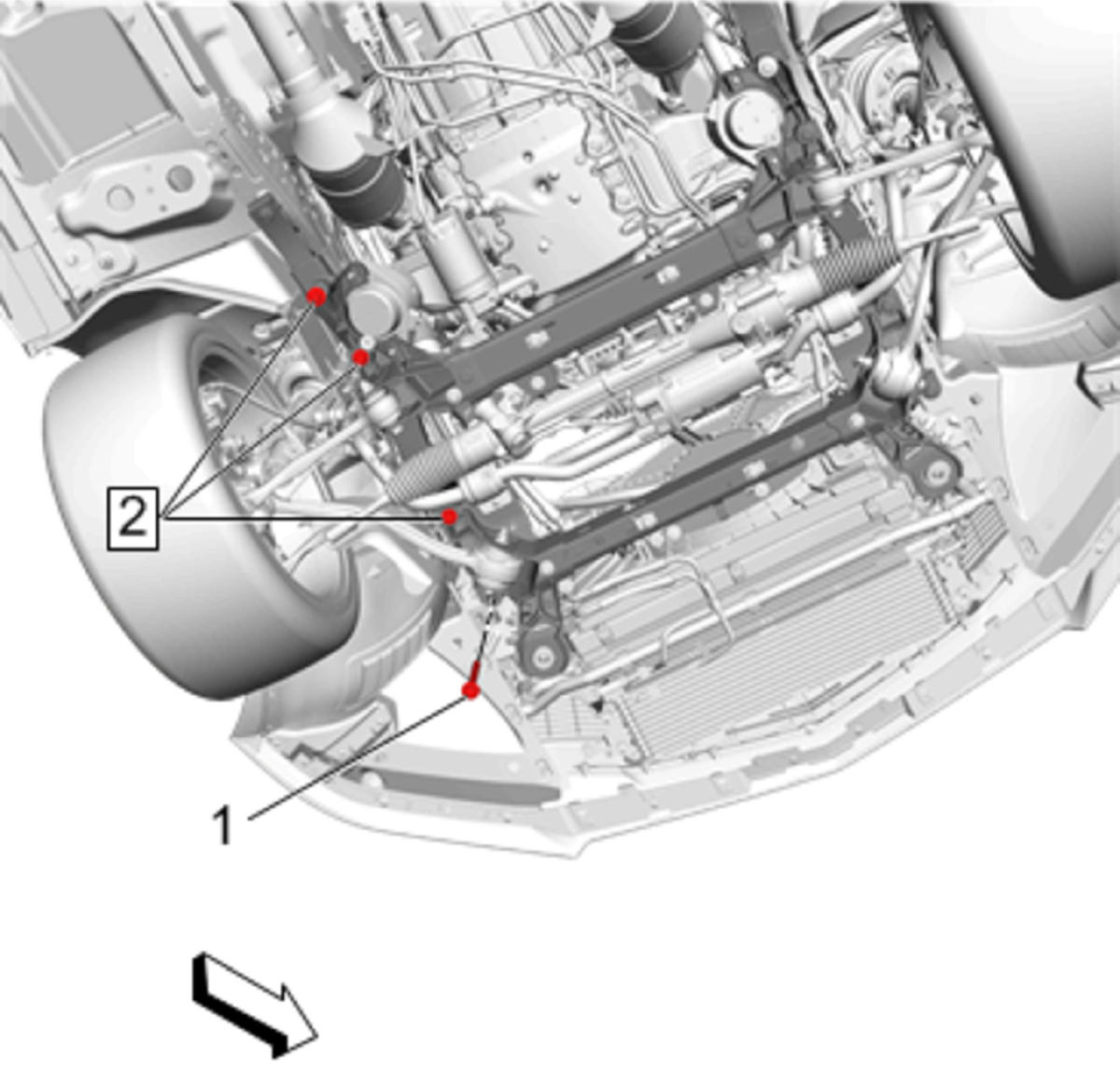

Fig 1: Front Crossmember Brace

Courtesy of GENERAL MOTORS COMPANY

Install Front Crossmember Brace (2)

CAUTION:

Refer to Fastener Caution

Install Front Crossmember Brace Bolt (1) and tighten 22 N.m (16 lb ft)

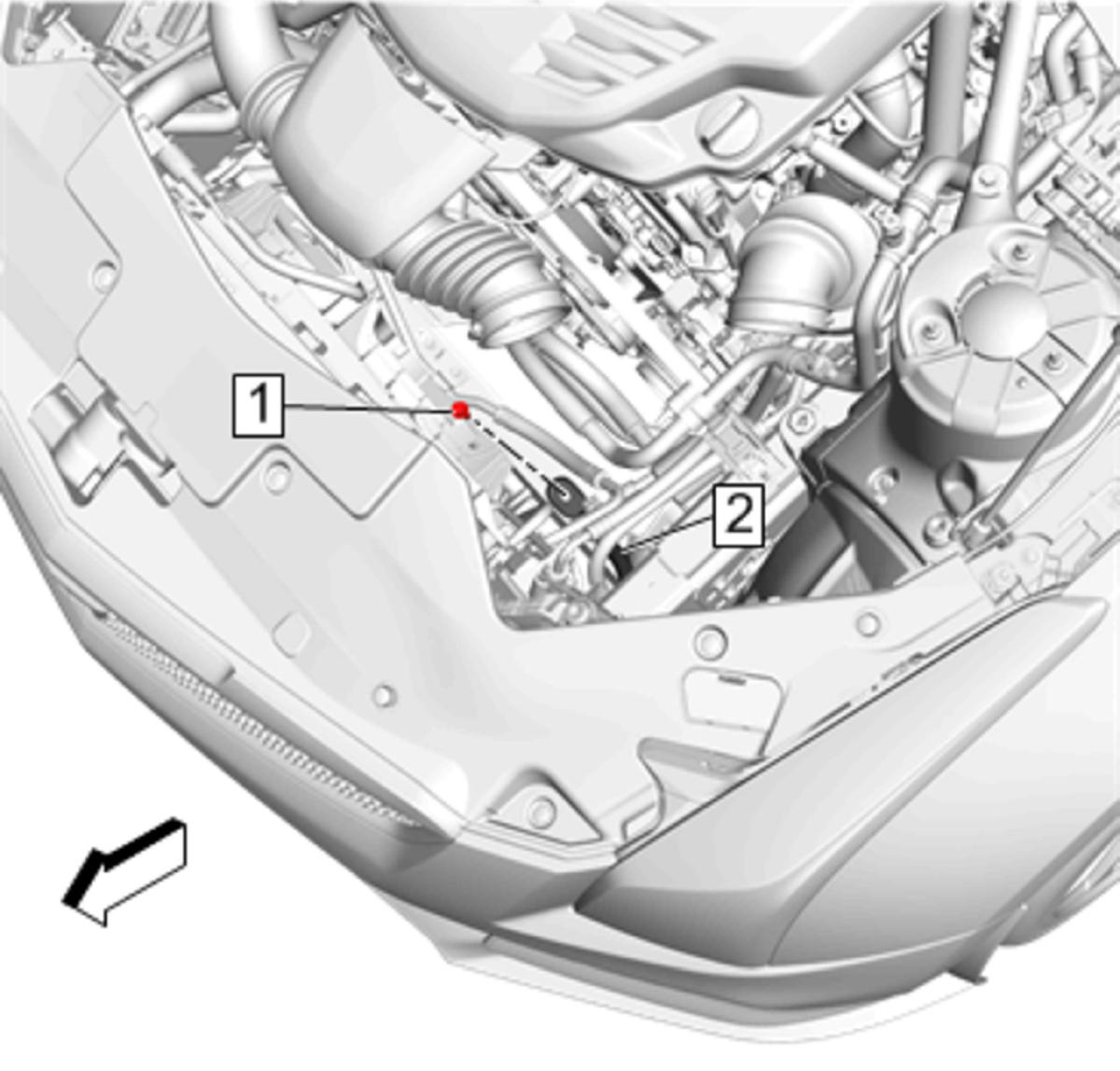

Fig 2: Radiator Outlet Hose And Clamp

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Outlet Hose (2)Radiator Outlet Hose Replacement (LF4)

Fig 3: Air Cleaner Assembly (LF4)

Courtesy of GENERAL MOTORS COMPANY

Install Air Cleaner Assembly (1)Air Cleaner Assembly Replacement (LF4)

Fig 4: Drivetrain and Front Suspension Cradle Bolts

Courtesy of GENERAL MOTORS COMPANY

Install Drivetrain and Front Suspension Cradle Front Bolt (1) and tighten 100 N.m (74 lb ft)
Drivetrain and Front Suspension Cradle Bolt (2) Tighten 105 N.m (77 lb ft)

Fig 5: Front Cradle Shear Plate (Left Side LF4)

Courtesy of GENERAL MOTORS COMPANY

Install Front Cradle Shear Plate (3)Front Cradle Shear Plate Replacement (V Series)
Lower the vehicle.
