Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS-V)

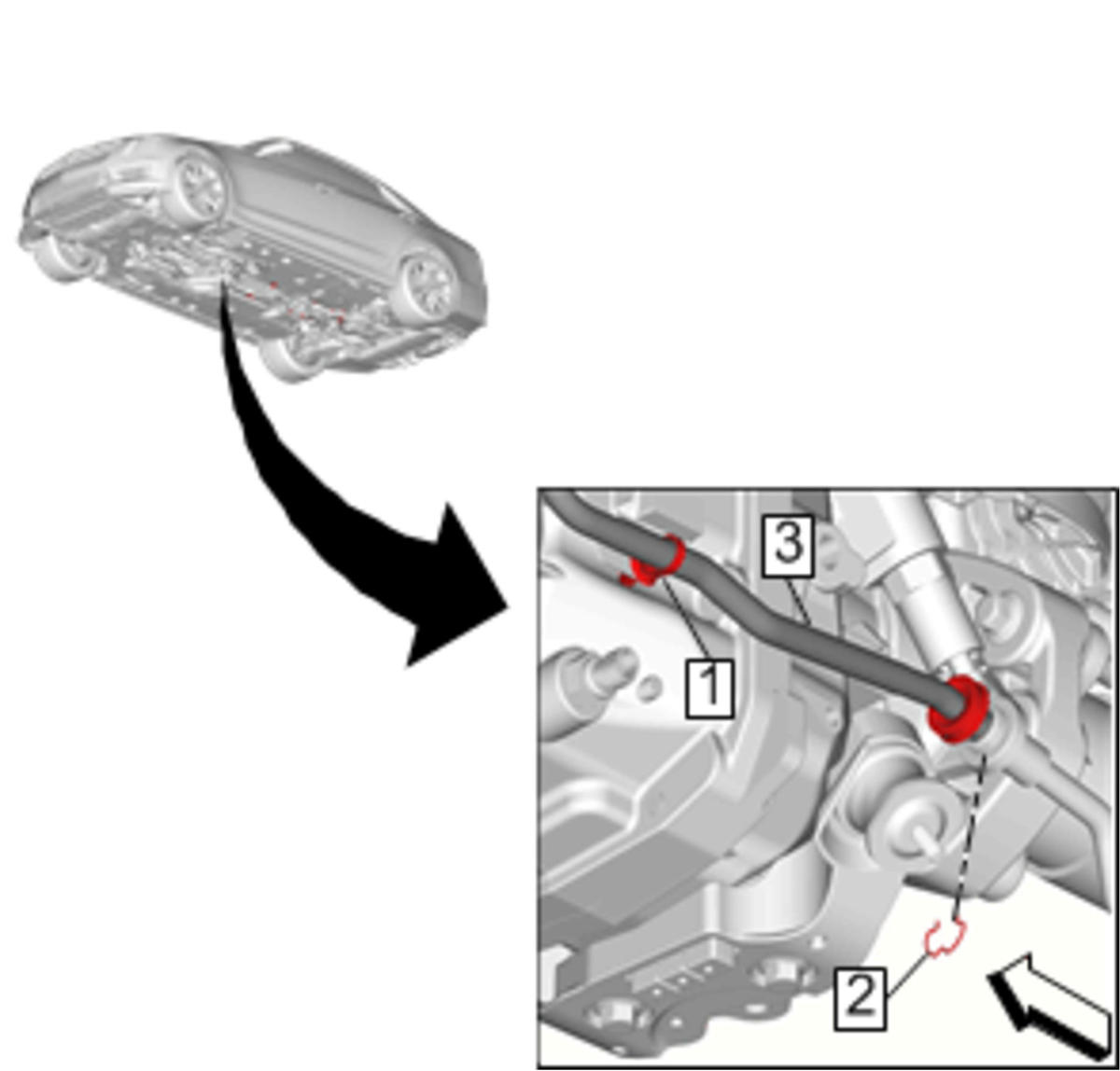

    2. Fig 1: Transmission Fluid Cooler Pipe Clip At Transmission Bracket
    GM4050817Courtesy of GENERAL MOTORS COMPANY
  2. Remove the transmission fluid cooler pipe clip (1) from the transmission bracket.
  3. Remove Transmission Fluid Cooler Pipe Fitting Retainer (2) @Transmission Fluid Cooler Pipe(Mid Line Left) Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    4. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  4. Remove Transmission Fluid Cooler Pipe(Front Jumper Left) (3) @Transmission Fluid Cooler Pipe(Mid Line Left)
    5. Fig 2: Transmission Fluid Cooler Pipe Fitting Retainer At Transmission
    GM4050818Courtesy of GENERAL MOTORS COMPANY
  5. Remove Transmission Fluid Cooler Pipe Fitting Retainer (1) @Transmission Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    6. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  6. Remove Transmission Fluid Cooler Pipe(Front Jumper Left) (2) @Transmission

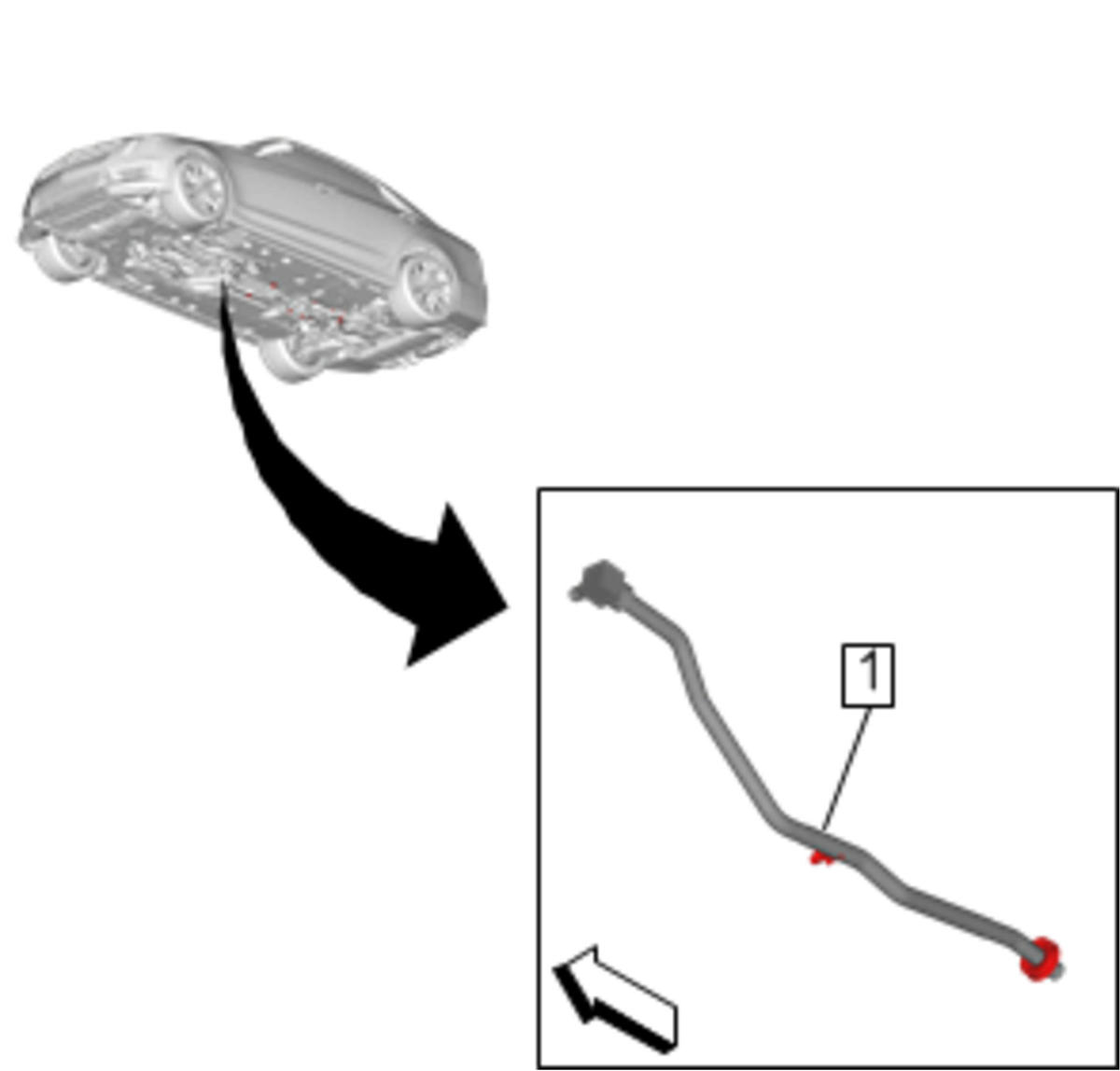

    7. Fig 3: Transmission Fluid Cooler Pipe
    GM4050819Courtesy of GENERAL MOTORS COMPANY
  7. Remove Transmission Fluid Cooler Pipe (Front Jumper Left) (1)
  8. Transfer components as necessary.
