Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

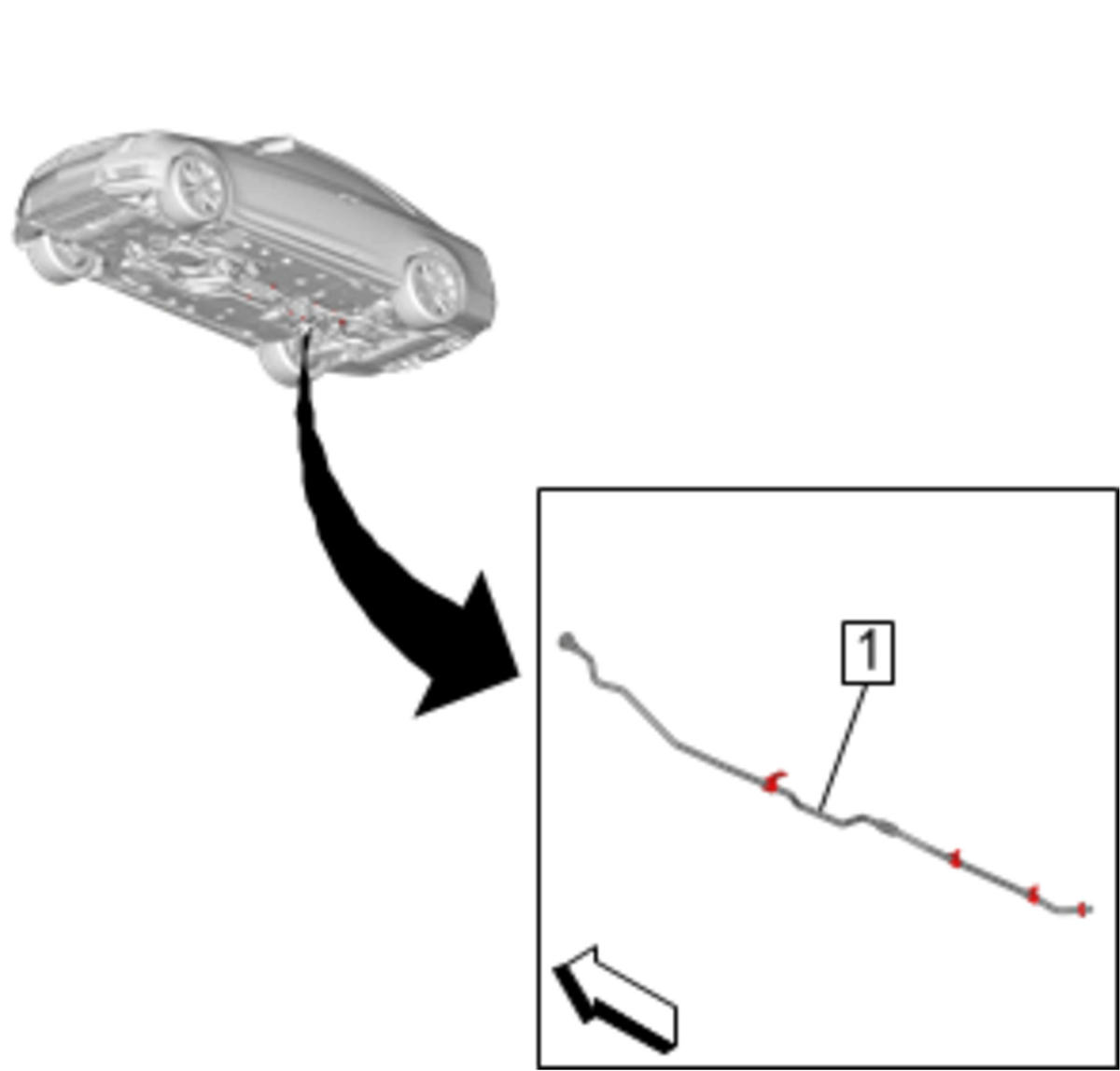

- Install Transmission Fluid Cooler Pipe(Mid Line Left) (1)

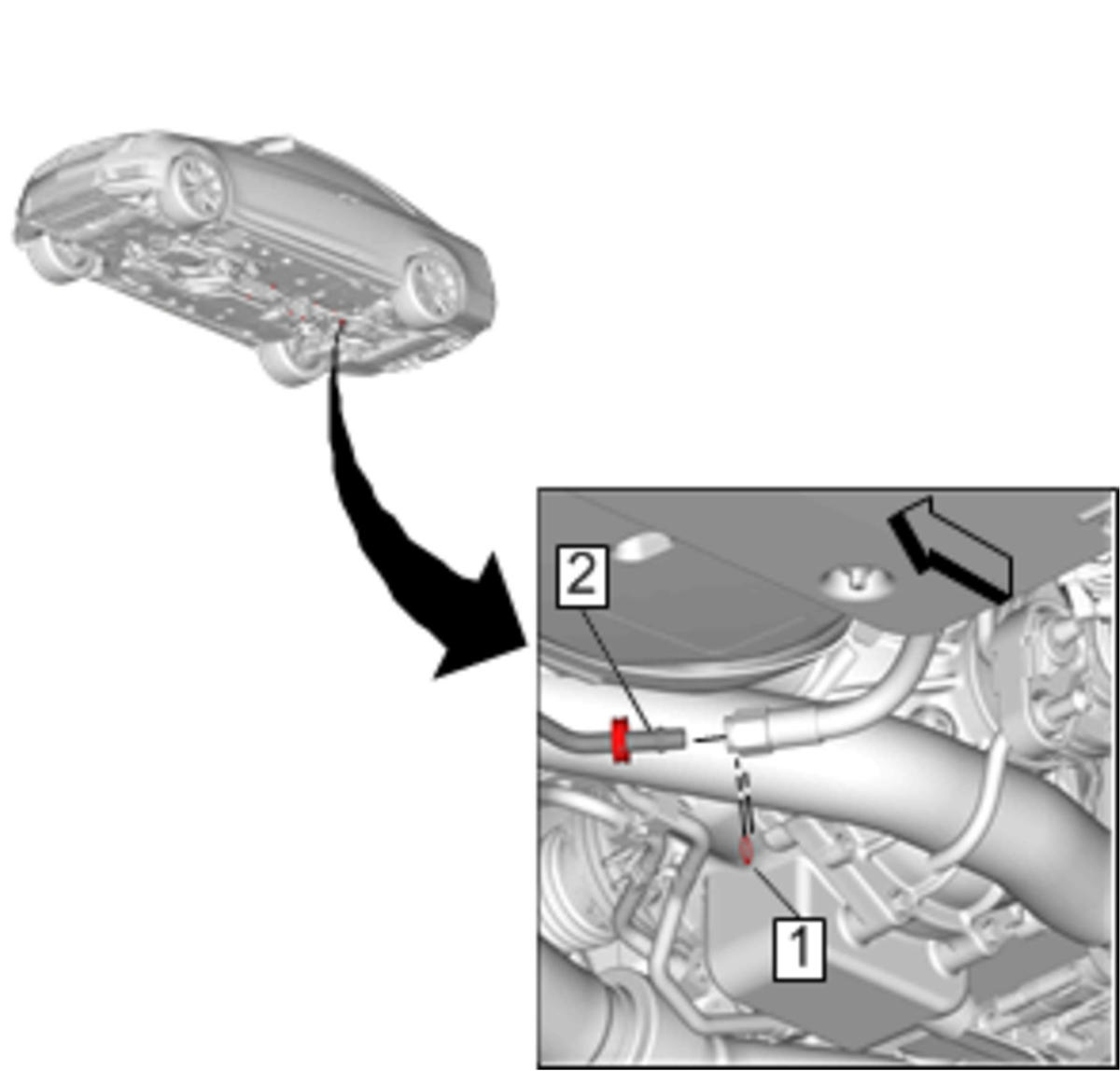

- Install Transmission Fluid Cooler Pipe Fitting Retainer (1) @Transmission Fluid Cooler Pipe(Rear Differential Inlet Hose)Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Install Transmission Fluid Cooler Pipe(Mid Line Left) (2) @Transmission Fluid Cooler Pipe(Rear Differential Inlet Hose)

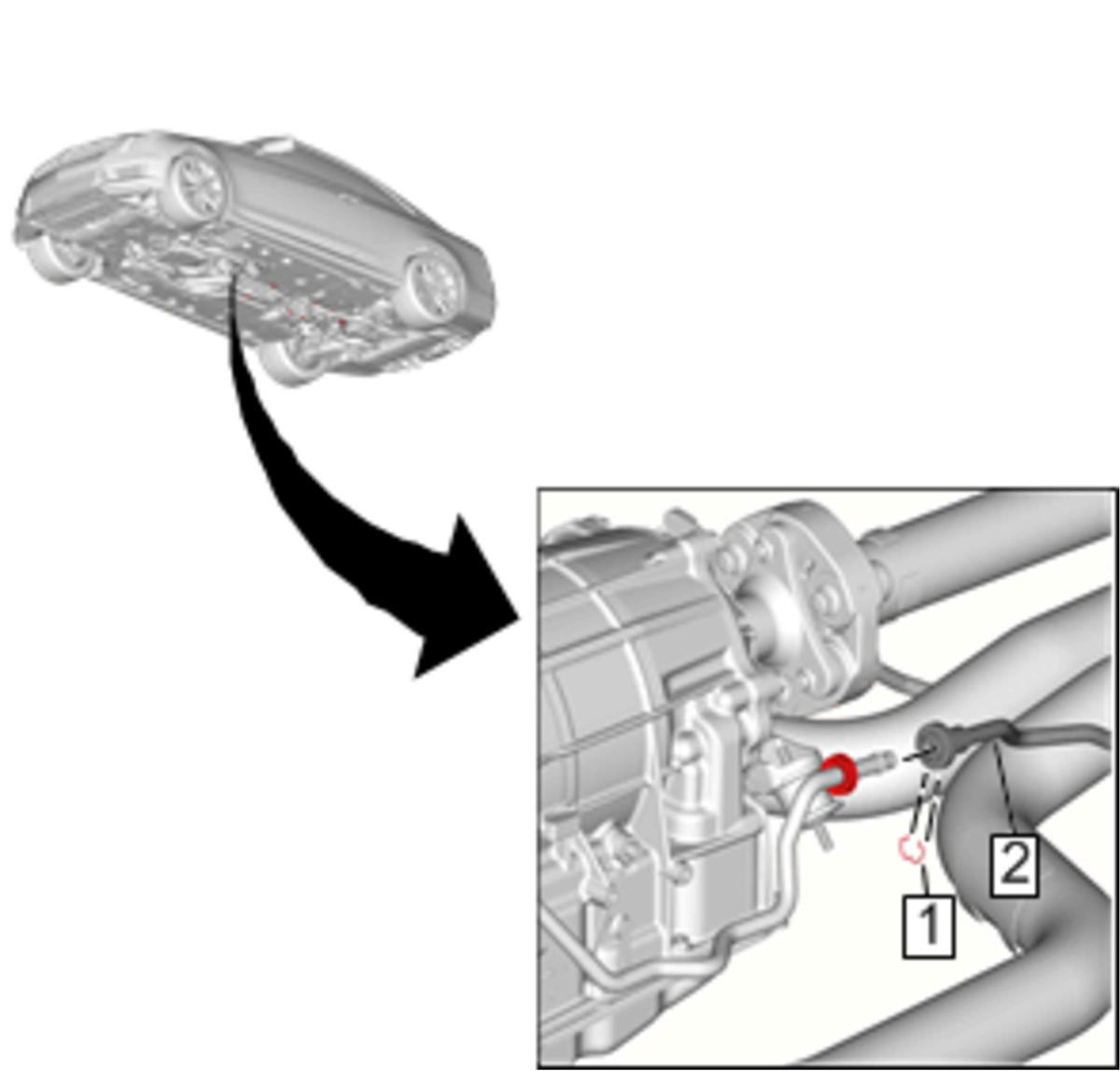

- Install Transmission Fluid Cooler Pipe Fitting Retainer (1) @Transmission Fluid Cooler Pipe(Mid Line Left)Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Install Transmission Fluid Cooler Pipe(Mid Line Left) (2) @Transmission Fluid Cooler Inlet and Outlet Pipe

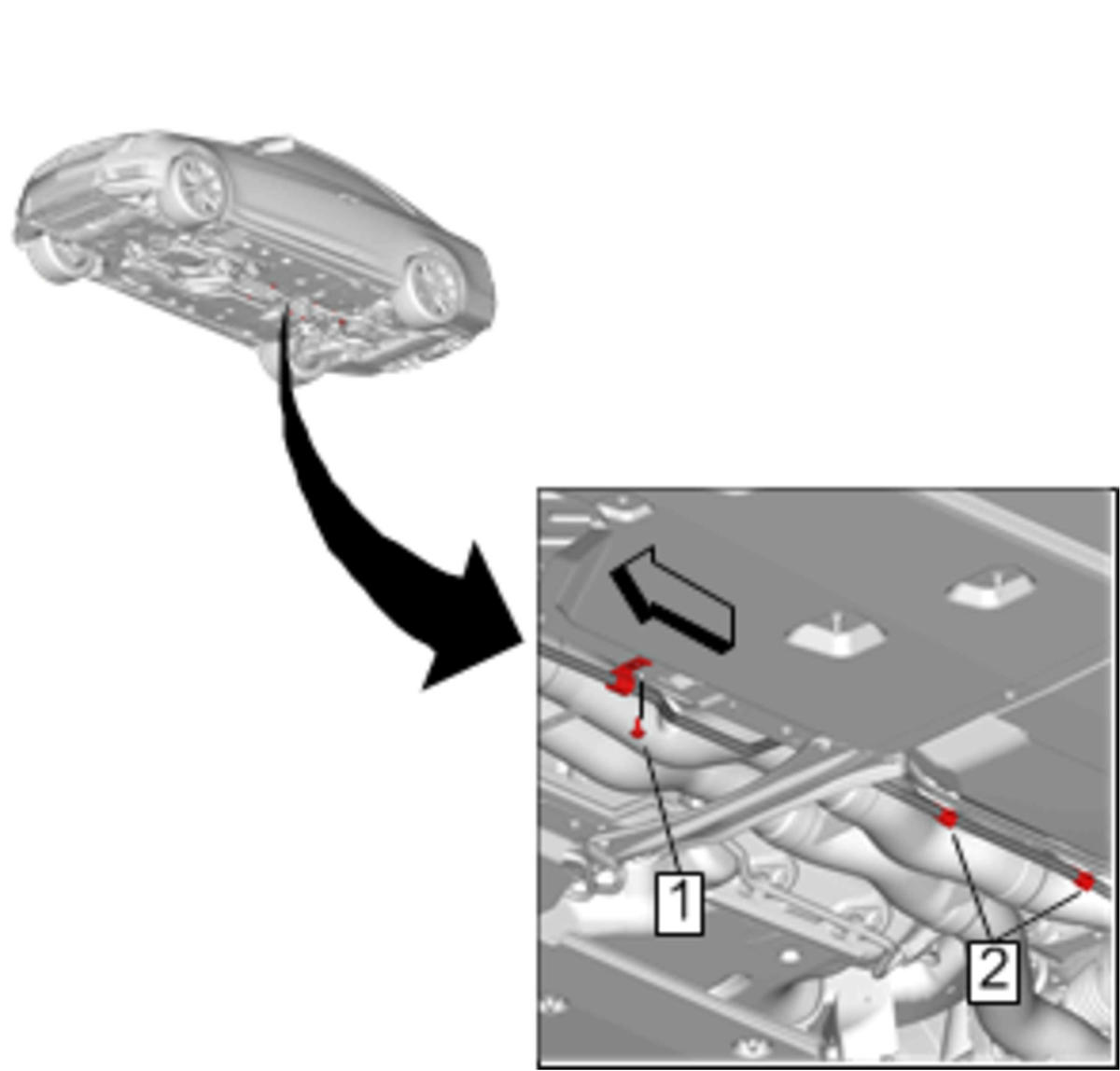

- Install the left side underbody front air deflector bolt (1) and tighten to 9 N.m (80 lb in).
- Install the transmission fluid cooler pipe clips (2) in the left side underbody front air deflector.
- Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Fill Procedure
- Inspect for transmission fluid leaks.
CAUTION:
Refer to Fastener Caution .
