Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS-V)

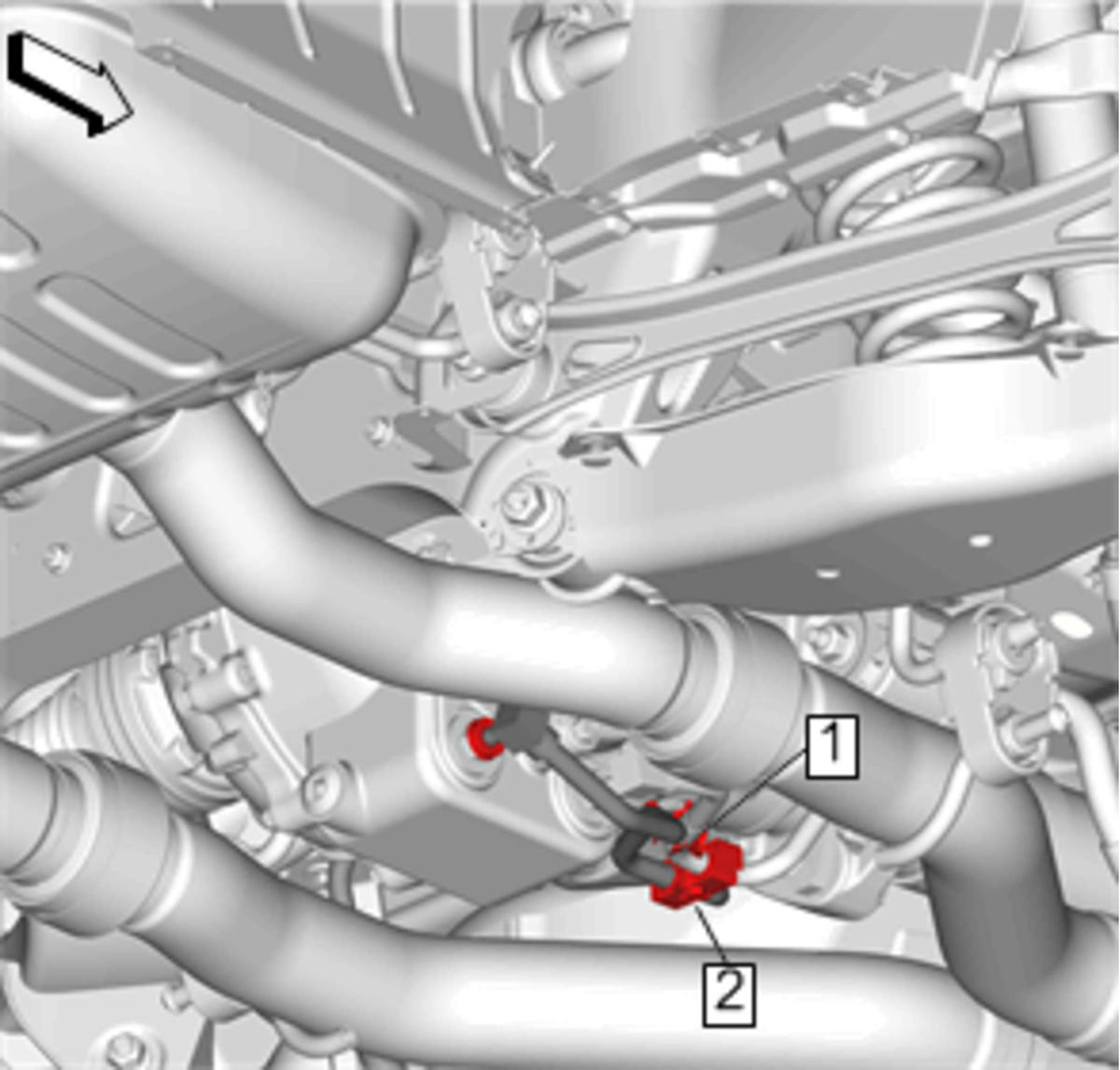

Fig 1: Transmission Fluid Cooler Pipe Tie Strap

Courtesy of GENERAL MOTORS COMPANY

Separate the transmission fluid cooler pipe tie strap (1) from the rear differential outlet hose.
Remove the transmission fluid cooler pipe bracket bolt (2) and remove the rear differential hoses from the bracket.

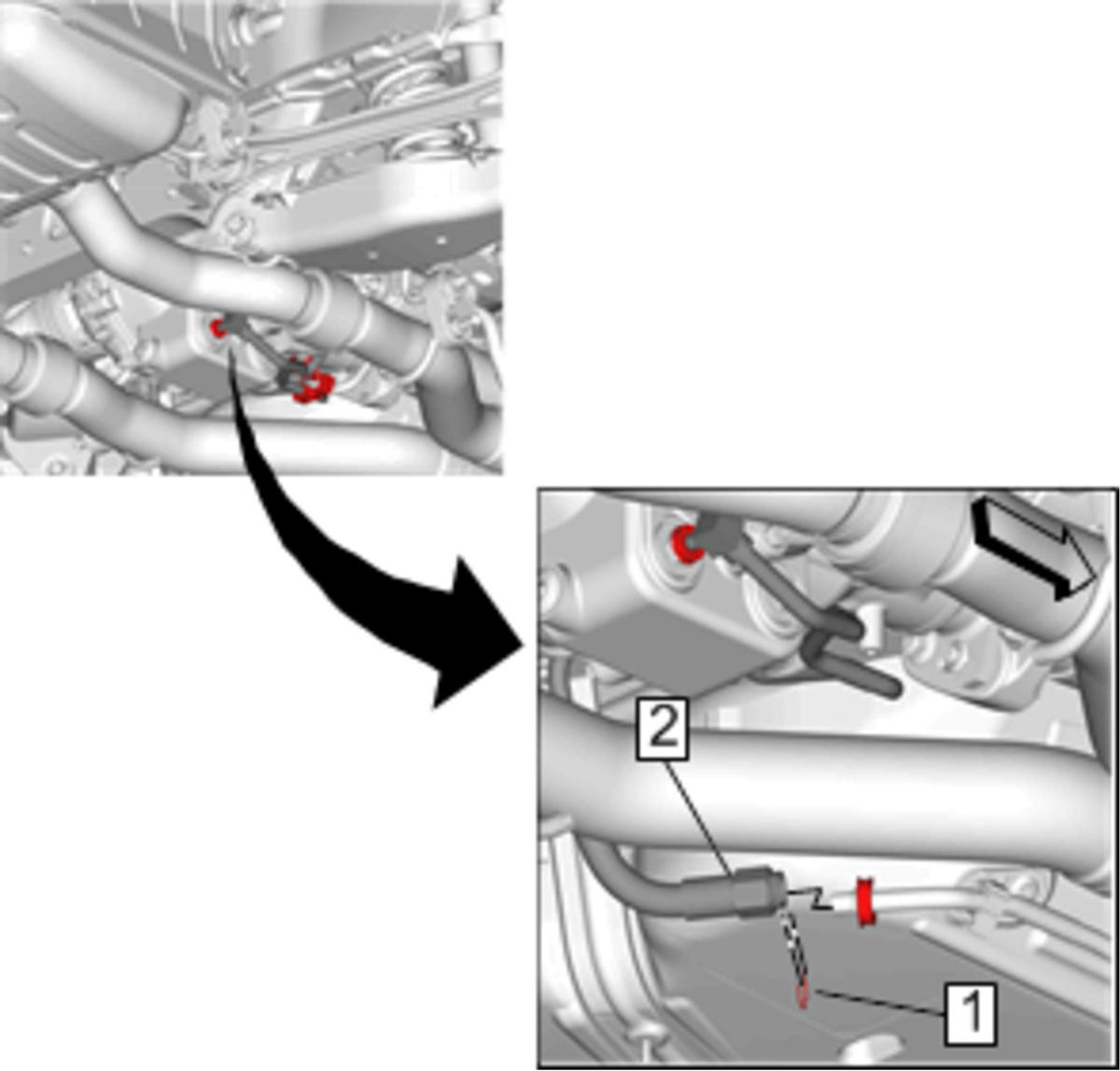

Fig 2: Transmission Fluid Cooler Pipe Fitting Retainer At Rear Axle

Courtesy of GENERAL MOTORS COMPANY

Remove Transmission Fluid Cooler Pipe Fitting Retainer (1) @Rear Axle Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

NOTE:

Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

Remove Transmission Fluid Cooler Pipe(Rear Differential Inlet Hose) (2) @Rear Axle

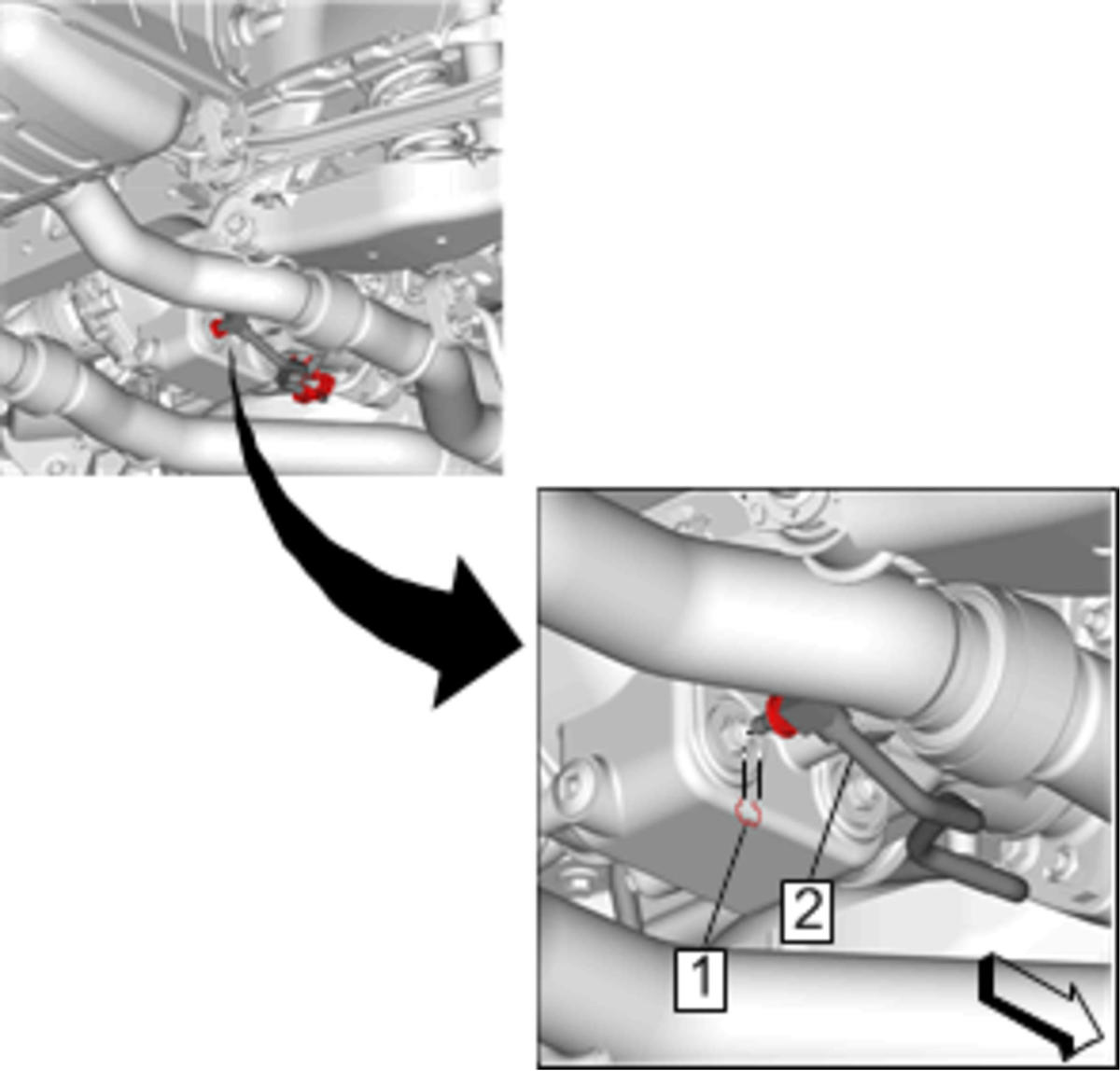

Fig 3: Transmission Fluid Cooler Pipe Fitting Retainer At Transmission Fluid Cooler Pipe

Courtesy of GENERAL MOTORS COMPANY

Remove Transmission Fluid Cooler Pipe Fitting Retainer (1) @Transmission Fluid Cooler Pipe(Rear Differential Inlet Hose)Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

NOTE:

Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

Remove Transmission Fluid Cooler Pipe(Rear Differential Inlet Hose) (2) @Transmission Fluid Cooler Pipe(Mid Line Left)

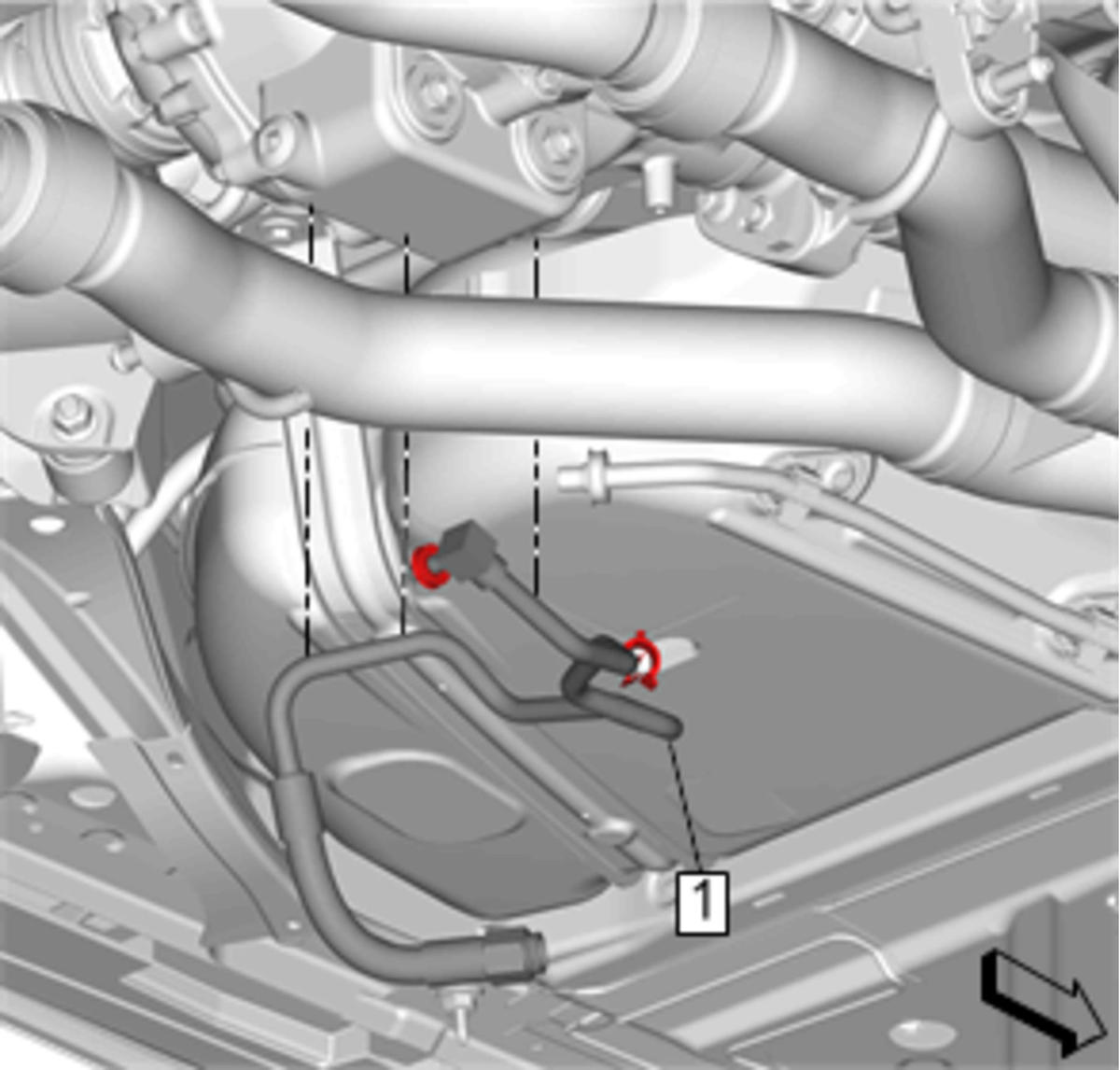

Fig 4: Transmission Fluid Cooler Pipe

Courtesy of GENERAL MOTORS COMPANY

Remove Transmission Fluid Cooler Pipe(Rear Differential Inlet Hose) (1)
Transfer components as necessary.
