Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Front Compartment Air Deflector.Front Compartment Air Deflector Replacement (V Series)
  2. Remove Front Wheelhouse Liner.Front Wheelhouse Liner Replacement (V-Series)

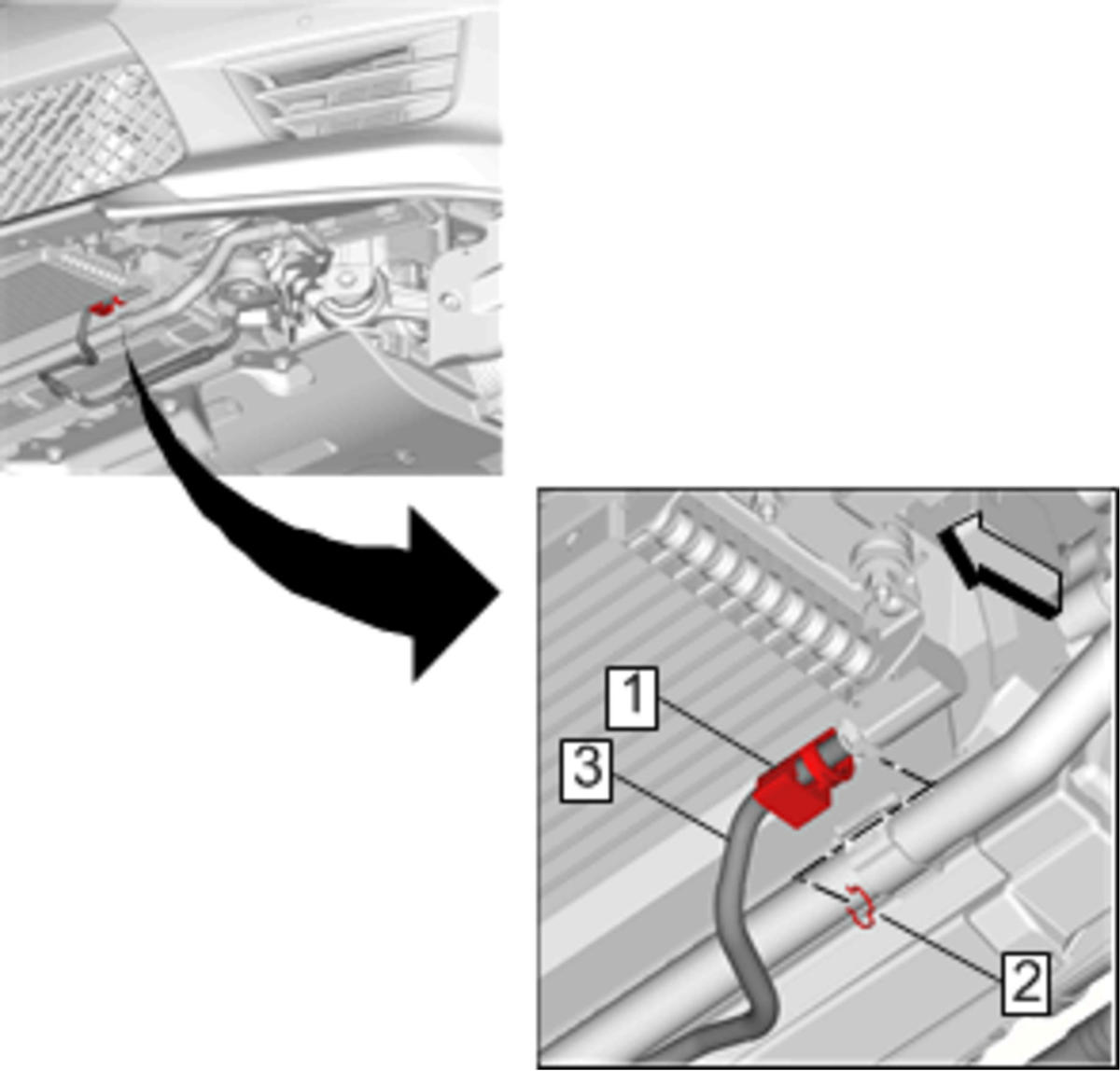

    3. Fig 1: Transmission Fluid Cooler Pipe Clip
    GM4045583Courtesy of GENERAL MOTORS COMPANY
  3. Open the transmission fluid cooler pipe clip (1).
  4. Remove Transmission Fluid Cooler Pipe Fitting Retainer (2) @Transmission Fluid Auxiliary Cooler Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    5. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  5. Remove Transmission Fluid Cooler Pipe (ATOC Jumper) (3) @Transmission Fluid Auxiliary Cooler

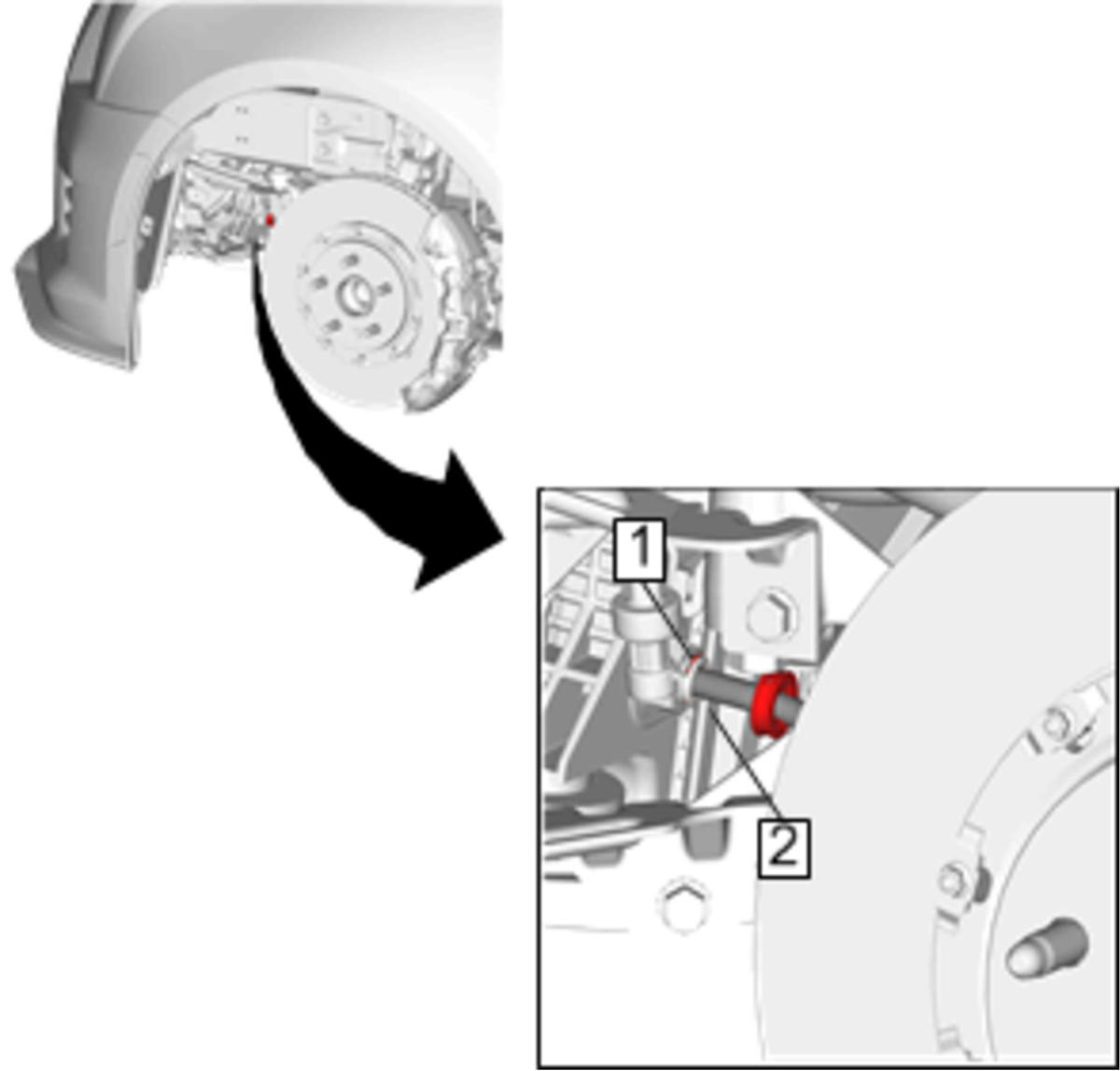

    6. Fig 2: Transmission Fluid Cooler Pipe Fitting Retainer At Radiator
    GM4045584Courtesy of GENERAL MOTORS COMPANY
  6. Remove Transmission Fluid Cooler Pipe Fitting Retainer (1) @Radiator Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    7. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  7. Remove Transmission Fluid Cooler Pipe(ATOC Jumper) (2) @Radiator

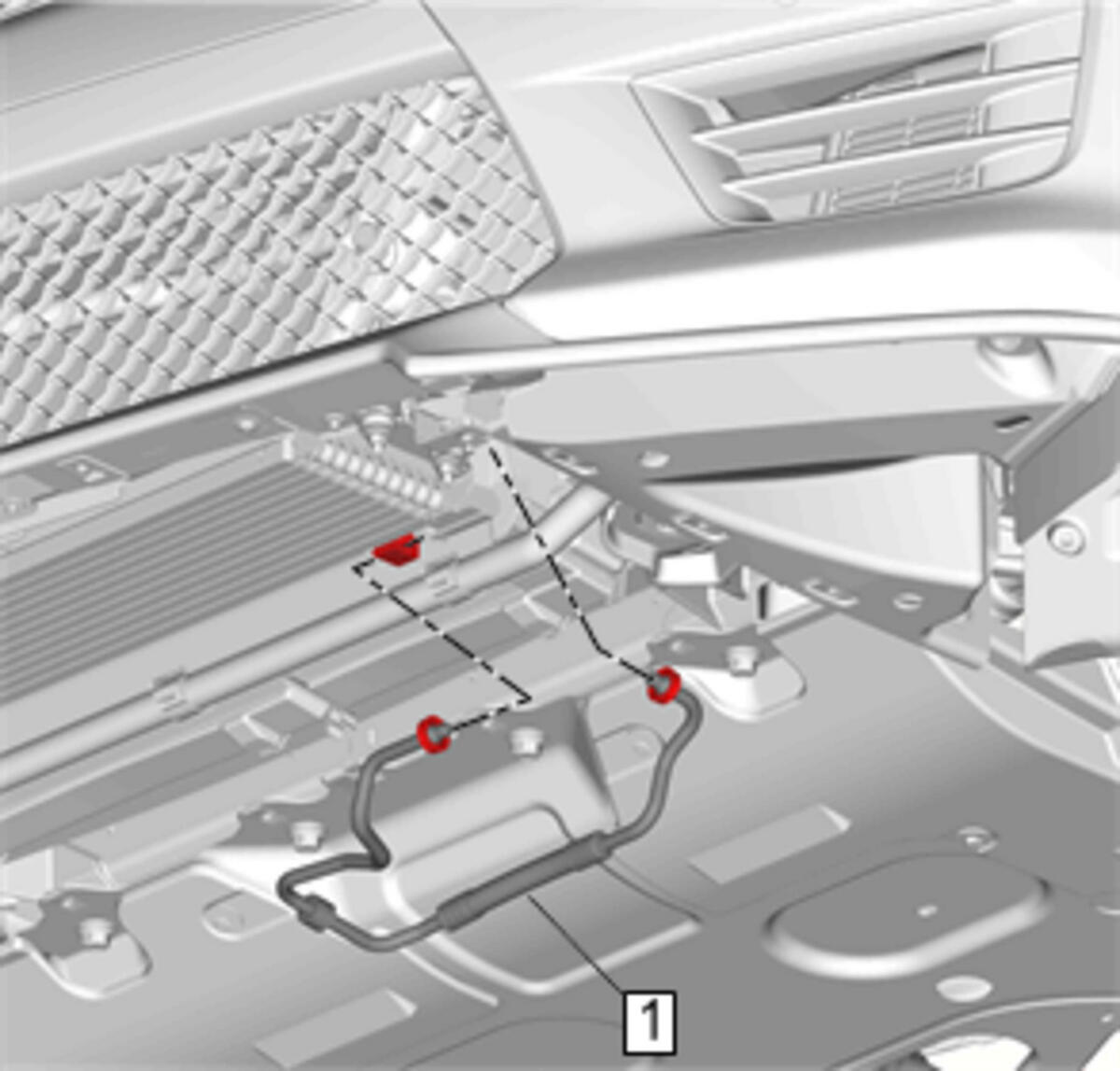

    8. Fig 3: Transmission Fluid Cooler Pipe
    GM4045585Courtesy of GENERAL MOTORS COMPANY
  8. Remove Transmission Fluid Cooler Pipe(ATOC Jumper) (1)
