Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission fluid cooler pipe/hose from the oil cooler fittings (1) on the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

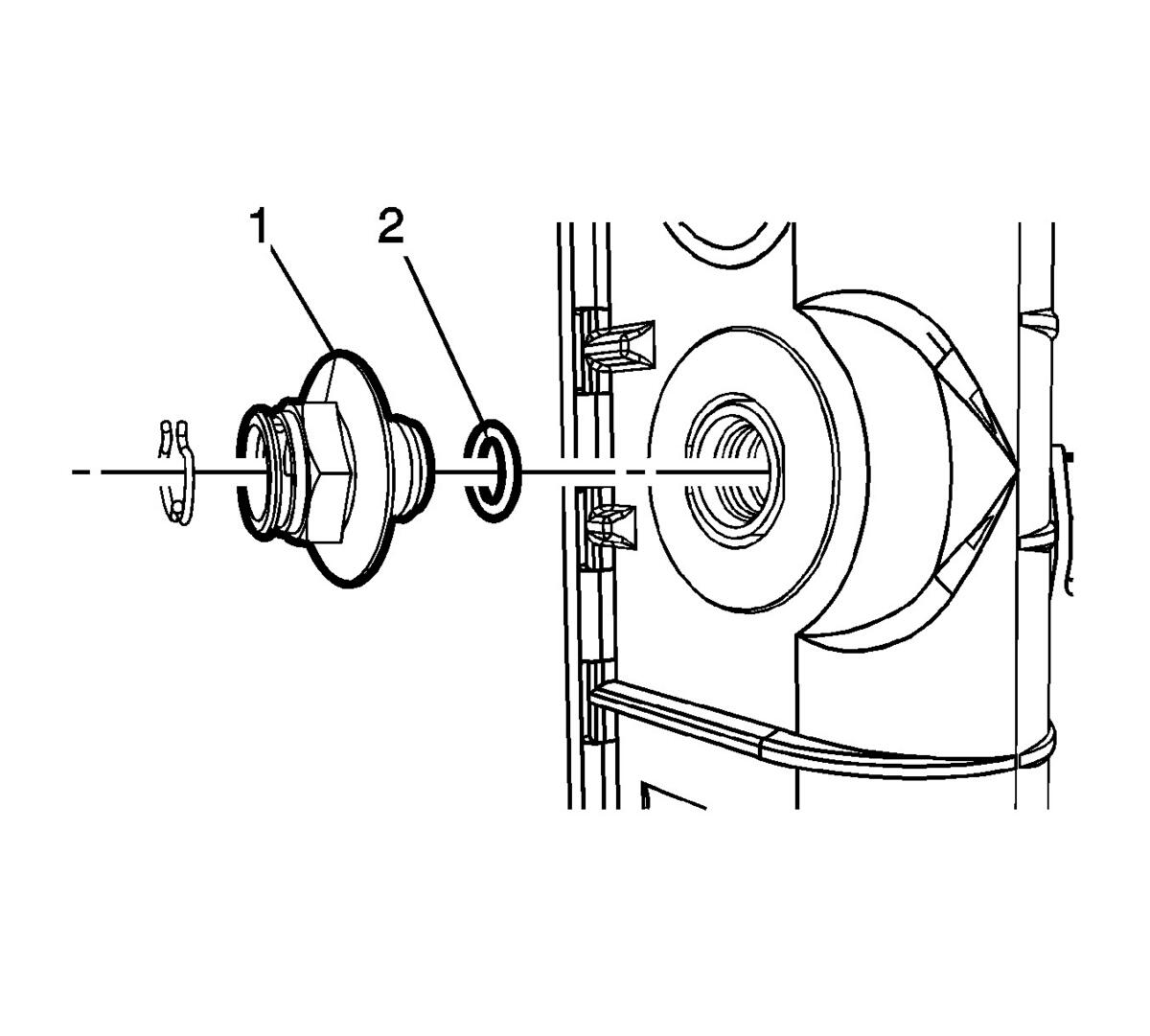

- Remove the oil cooler fitting (1) from the radiator.
NOTE:
Do not remove the upper and lower transmission oil cooler fittings from the radiator at the same time other wise the transmission fluid oil cooler will fall inside the radiator end tank.
