Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Front Compartment Front Sight Shield.Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe)
  2. Remove Air Cleaner Assembly. Air Cleaner Assembly Replacement (LTG)
  3. Remove Front Wheelhouse Liner.Front Wheelhouse Liner Replacement (Non V-Series)
  4. Remove Charge Air Cooler Outlet Air Tube.Charge Air Cooler Outlet Air Tube Replacement (LTG)
    5. Fig 1: Transmission Fluid Cooler Inlet And Outlet Pipe Retaining Clip At Air Conditioning Condenser
    GM4067445Courtesy of GENERAL MOTORS COMPANY
  5. Remove Transmission Fluid Cooler Inlet and Outlet Pipe Clip (1) @Air Conditioning Condenser Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    6. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  6. Remove Transmission Fluid Cooler Inlet and Outlet Pipe (2) @Air Conditioning Condenser
  7. Remove Front Air Deflector.Front Air Deflector Replacement
  8. Remove Engine Compartment Lower Noise Shield Engine Compartment Lower Noise Shield Replacement (All Wheel Drive)
    9. Fig 2: Transmission Fluid Cooler Inlet And Outlet Pipe Retaining Clip At Radiator
    GM4056793Courtesy of GENERAL MOTORS COMPANY
  9. Remove Transmission Fluid Cooler Inlet and Outlet Pipe Clip (1) @Radiator Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    10. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  10. Remove Transmission Fluid Cooler Inlet and Outlet Pipe (2) @Radiator
    11. Fig 3: Transmission Fluid Cooler Inlet And Outlet Pipe Clip Bolts At Engine Oil Pan
    GM4090452Courtesy of GENERAL MOTORS COMPANY
  11. Remove the transmission fluid cooler inlet and outlet pipe clip bolts (1) from the engine oil pan.
    12. Fig 4: Transmission Fluid Cooler Inlet And Outlet Pipe Bolt At Transmission
    GM4056800Courtesy of GENERAL MOTORS COMPANY
  12. Remove the transmission fluid cooler inlet and outlet pipe bolt (1) from the transmission.
    13. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  13. Remove the transmission fluid cooler inlet and outlet pipe (2) from the transmission.
    14. Fig 5: Transmission Fluid Cooler Pipe Fitting Seal
    GM4062912Courtesy of GENERAL MOTORS COMPANY
  14. Remove the transmission fluid cooler inlet and outlet pipe fitting seal (1).

    DISCARD the seal.

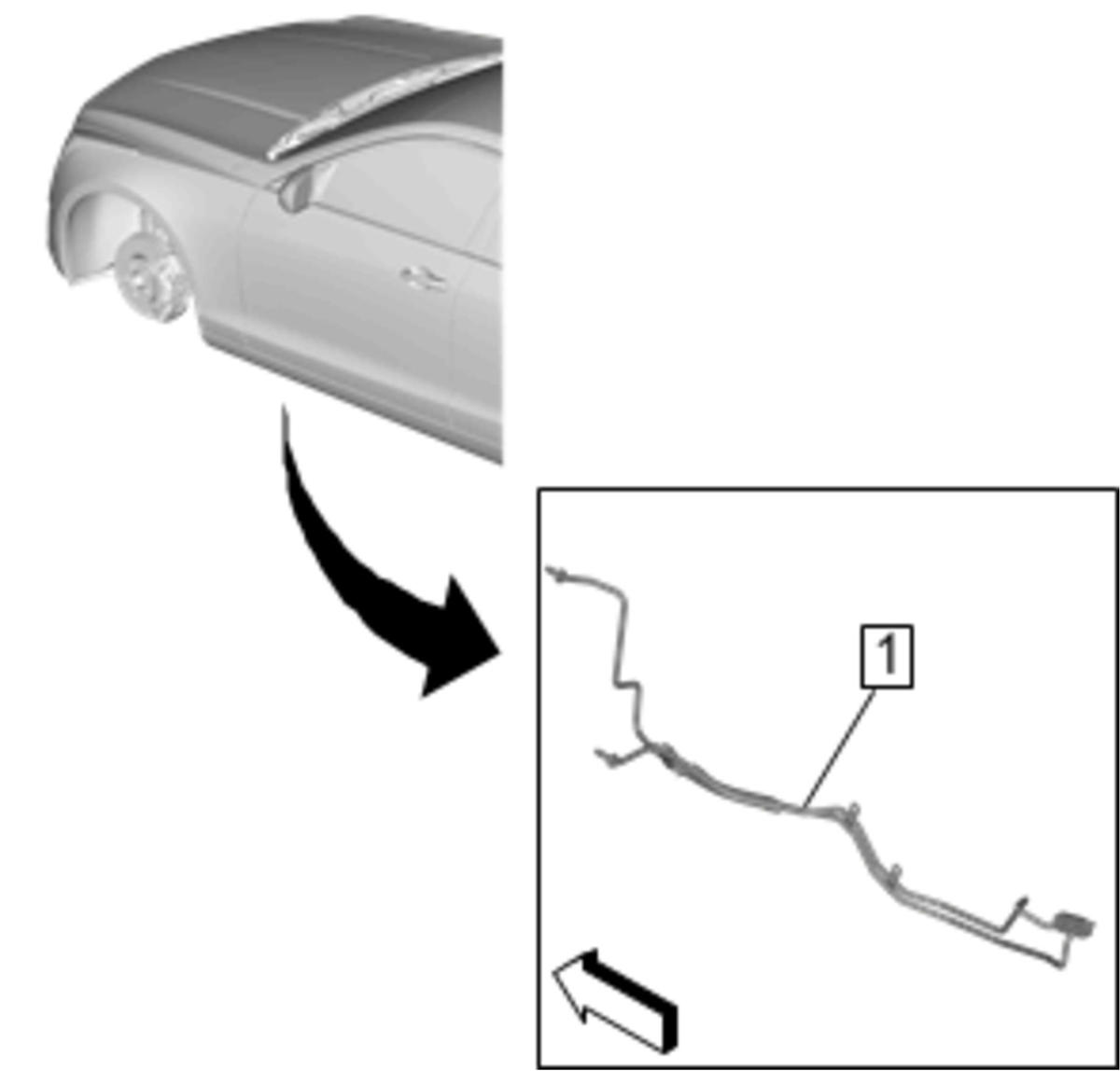

    15. Fig 6: Transmission Fluid Cooler Inlet And Outlet Pipe
    GM4067446Courtesy of GENERAL MOTORS COMPANY
  15. Remove the transmission fluid cooler inlet and outlet pipe (1) from the vehicle.
  16. Transfer components as necessary.
