Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

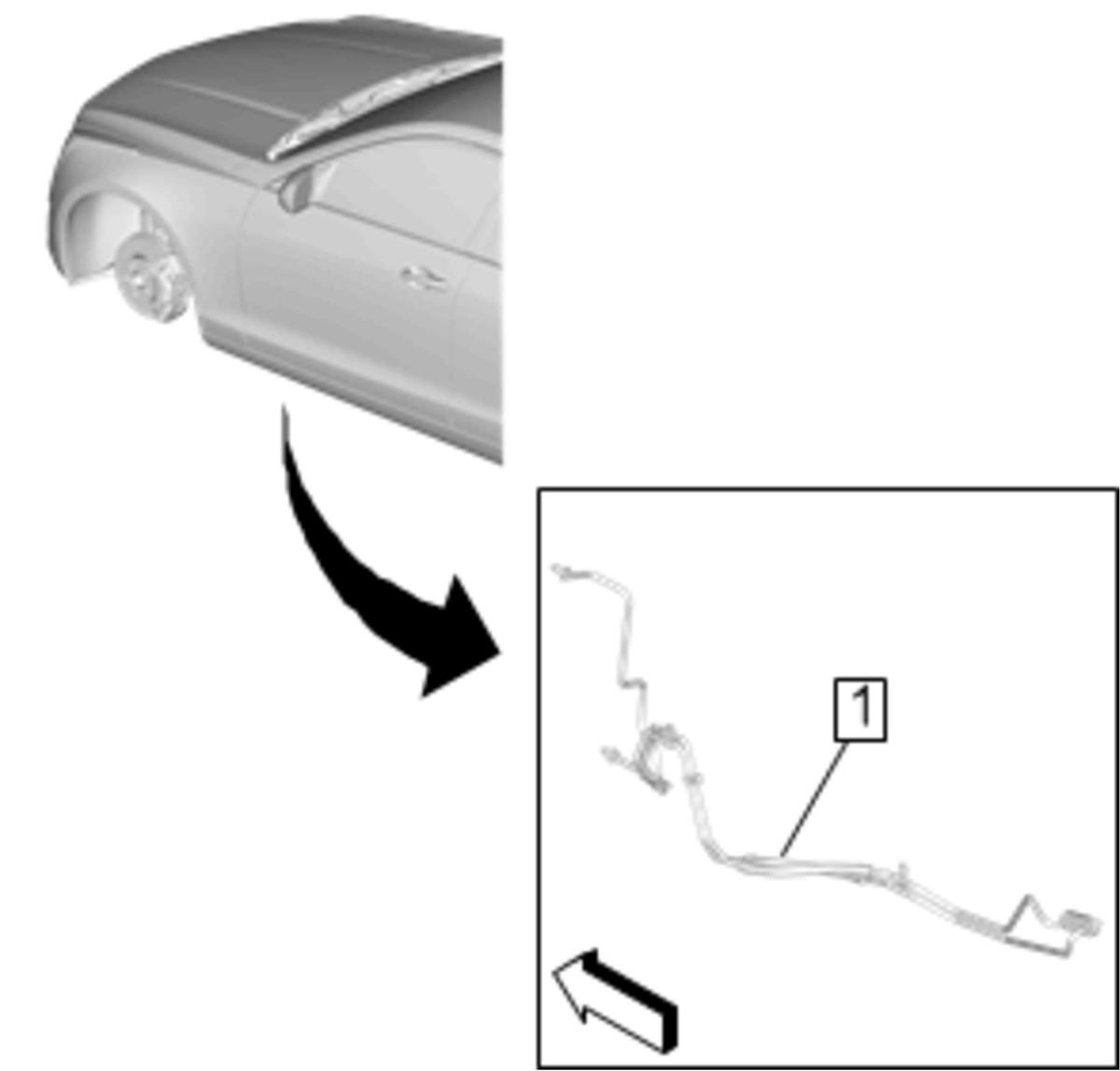

    Fig 1: Transmission Fluid Cooler Inlet And Outlet Pipe
    GM4067463Courtesy of GENERAL MOTORS COMPANY
  1. Position the transmission fluid cooler inlet and outlet pipe (1) on the vehicle.
    2. Fig 2: Transmission Fluid Cooler Pipe Fitting Seal
    GM4062912Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW transmission fluid cooler inlet and outlet pipe fitting seal (1).
    3. Fig 3: Transmission Fluid Cooler Inlet And Outlet Pipe Bolt At Transmission
    GM4056800Courtesy of GENERAL MOTORS COMPANY
  3. Install the transmission fluid cooler inlet and outlet pipe (2) in the transmission.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the transmission fluid cooler inlet and outlet pipe bolt (1) in the transmission and tighten to 22 N.m (16 lb ft).
    5. Fig 4: Transmission Fluid Cooler Inlet And Outlet Pipe Clip Bolt At Engine Oil Pan
    GM4056796Courtesy of GENERAL MOTORS COMPANY
  5. Install the transmission fluid cooler inlet and outlet pipe clip bolt (1) in the engine oil pan and tighten to 22 N.m (16 lb ft).
    6. Fig 5: Transmission Fluid Cooler Inlet And Outlet Pipe Retaining Clip At Radiator
    GM4056793Courtesy of GENERAL MOTORS COMPANY
  6. Install Transmission Fluid Cooler Inlet and Outlet Pipe Clip (1) @Radiator Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
  7. Install Transmission Fluid Cooler Inlet and Outlet Pipe (2) @Radiator
  8. Install Engine Compartment Lower Noise Shield.Engine Compartment Lower Noise Shield Replacement (All Wheel Drive)Engine Compartment Lower Noise Shield Replacement (Front Wheel Drive)
  9. Install Front Air Deflector.Front Air Deflector Replacement

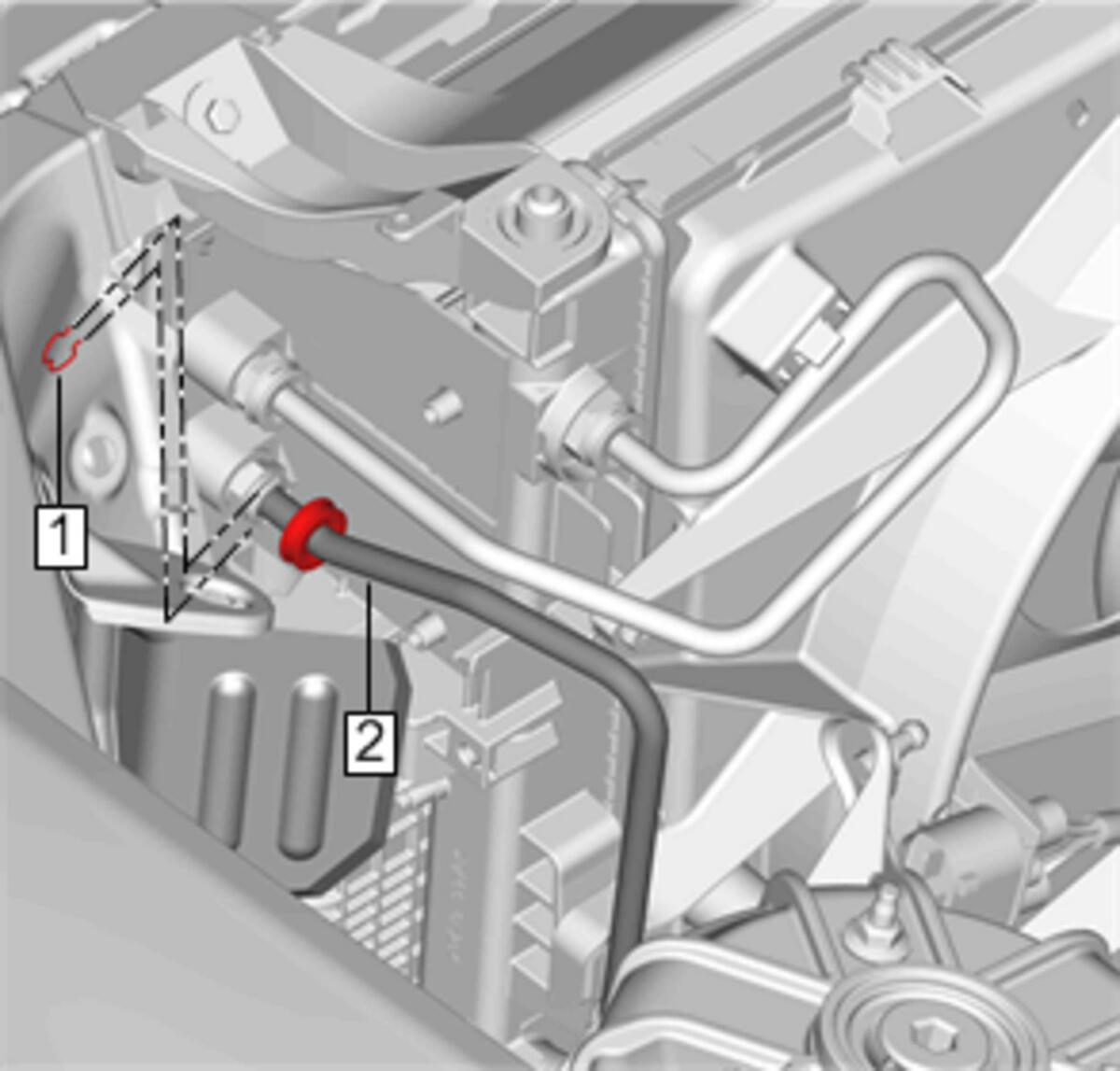

    10. Fig 6: Transmission Fluid Cooler Inlet And Outlet Pipe Retaining Clip At Air Conditioning Condenser
    GM4067445Courtesy of GENERAL MOTORS COMPANY
  10. Install Transmission Fluid Cooler Inlet and Outlet Pipe Clip (1) @Air Conditioning Condenser Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
  11. Install Transmission Fluid Cooler Inlet and Outlet Pipe (2) @Air Conditioning Condenser
  12. Install Charge Air Cooler Outlet Air Tube.Charge Air Cooler Outlet Air Tube Replacement (LTG)
  13. Install Air Cleaner Assembly Air Cleaner Assembly Replacement (LTG)
  14. Install Front Compartment Front Sight Shield.Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe)
  15. Install Front Wheelhouse Liner.Front Wheelhouse Liner Replacement (Non V-Series)
  16. Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
  17. Inspect for transmission fluid leaks.
