Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

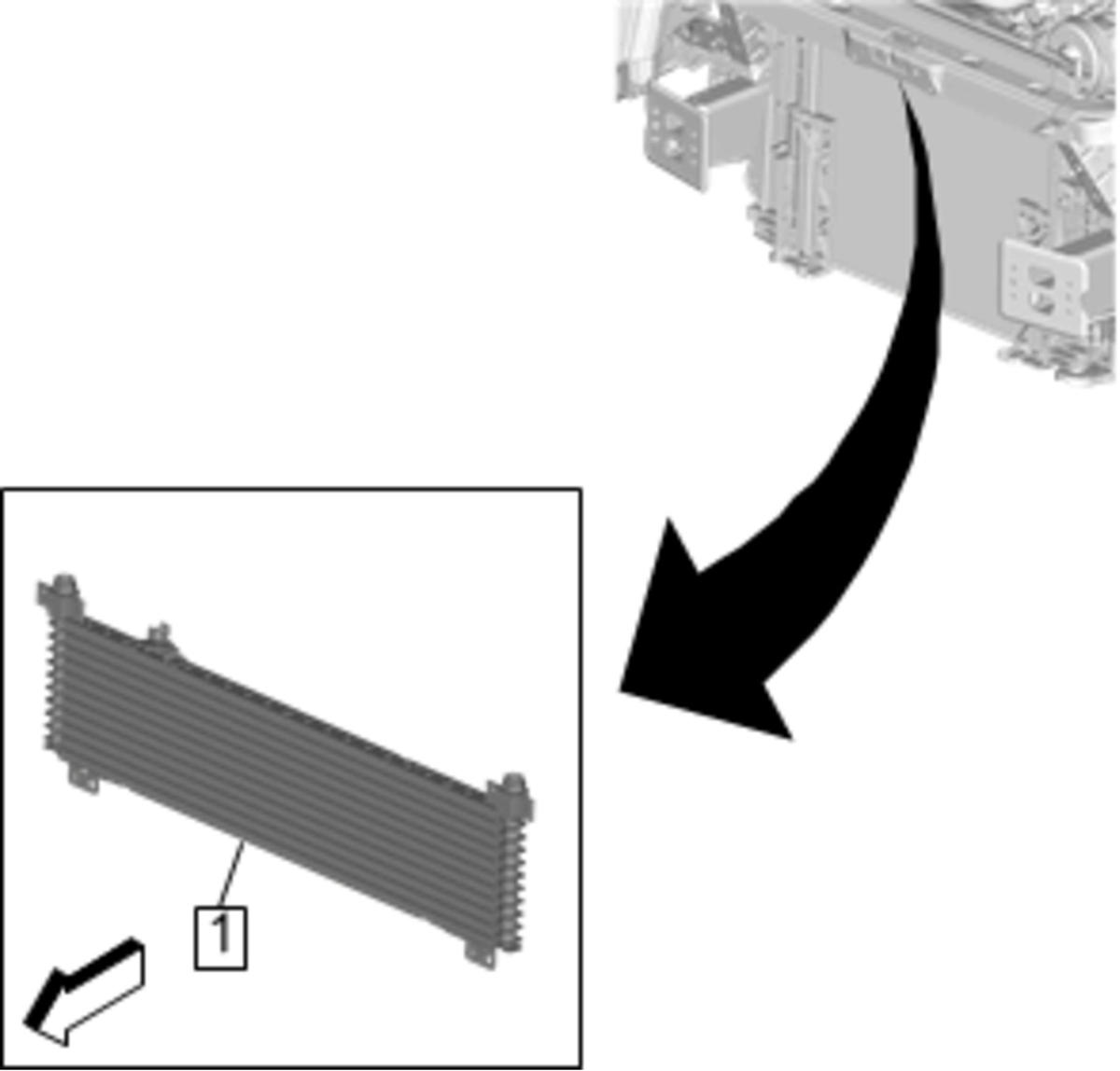

    Fig 1: Transmission Fluid Auxiliary Cooler
    GM4168535Courtesy of GENERAL MOTORS COMPANY
  1. Position the transmission fluid auxiliary cooler (1) on the vehicle.

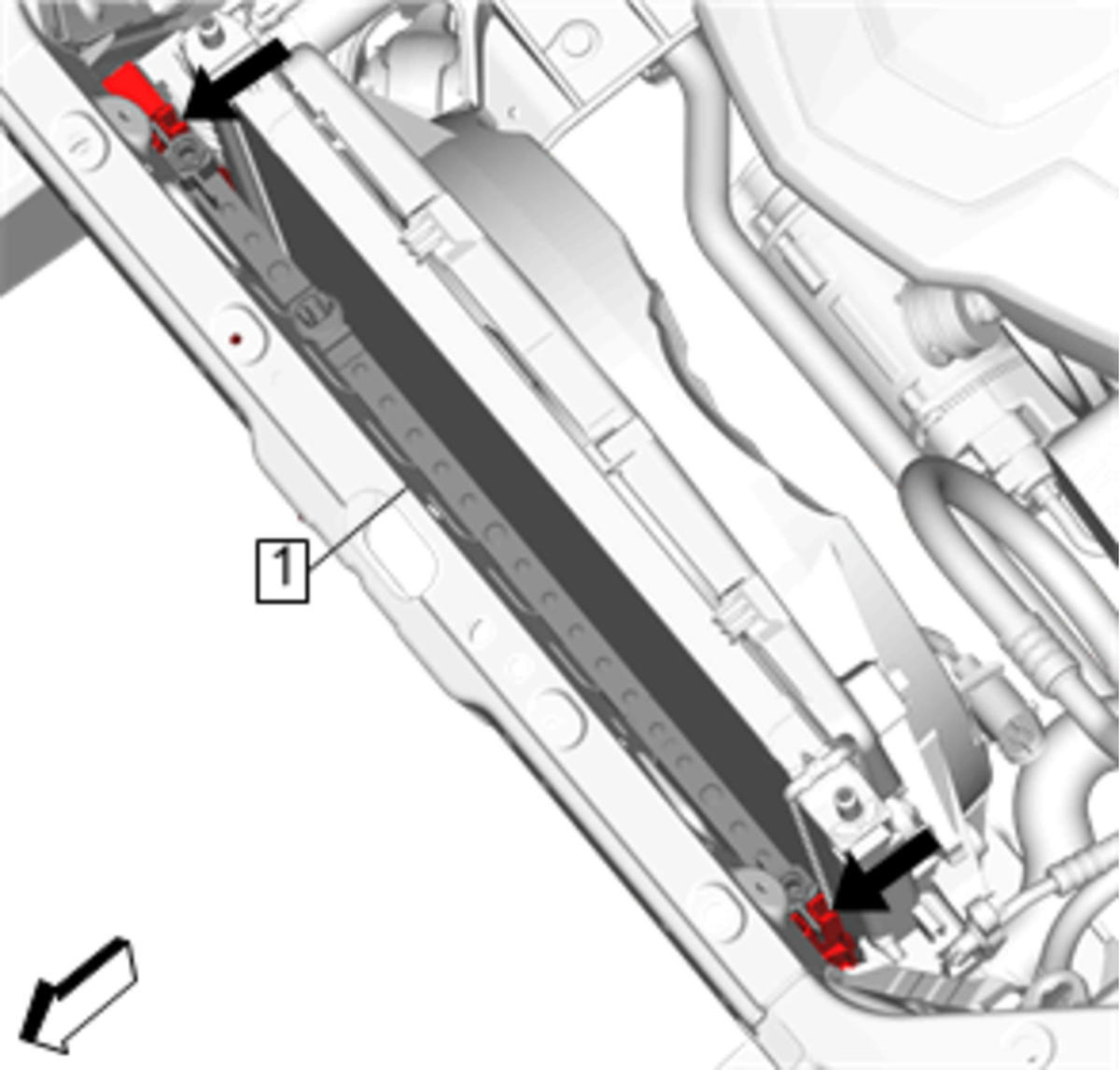

    2. Fig 2: Transmission Fluid Auxiliary Cooler And Engine Oil Cooler Bracket
    GM4168534Courtesy of GENERAL MOTORS COMPANY
  2. Clip the transmission fluid auxiliary cooler (1) in the engine oil cooler bracket.

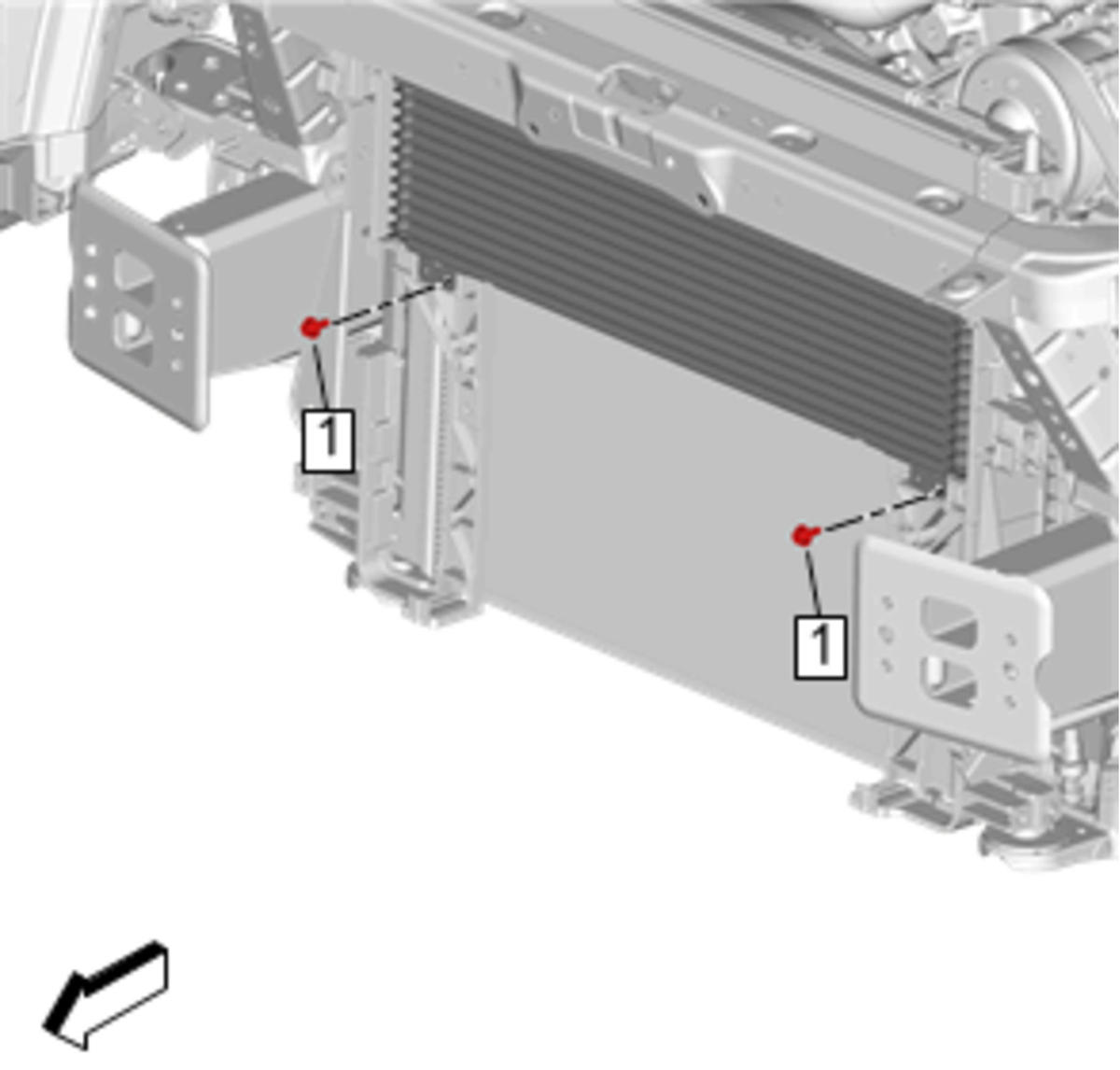

    3. Fig 3: Transmission Fluid Auxiliary Cooler Bracket Bolt
    GM4168533Courtesy of GENERAL MOTORS COMPANY
  3. Install Transmission Fluid Auxiliary Cooler Bracket Bolt and tighten 9 N.m (80 lb in)
  4. Install Front Bumper Fascia Center Support. Front Bumper Fascia Center Support Replacement
  5. Install Transmission Fluid Auxiliary Cooler Outlet Pipe.Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (LGX With RWD, With V03)
  6. Install Transmission Fluid Auxiliary Cooler Inlet Pipe. Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LGX With RWD, With V03)
  7. Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Fill Procedure
  8. Inspect for transmission fluid leaks.
