Isolated Low Speed GMLAN

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

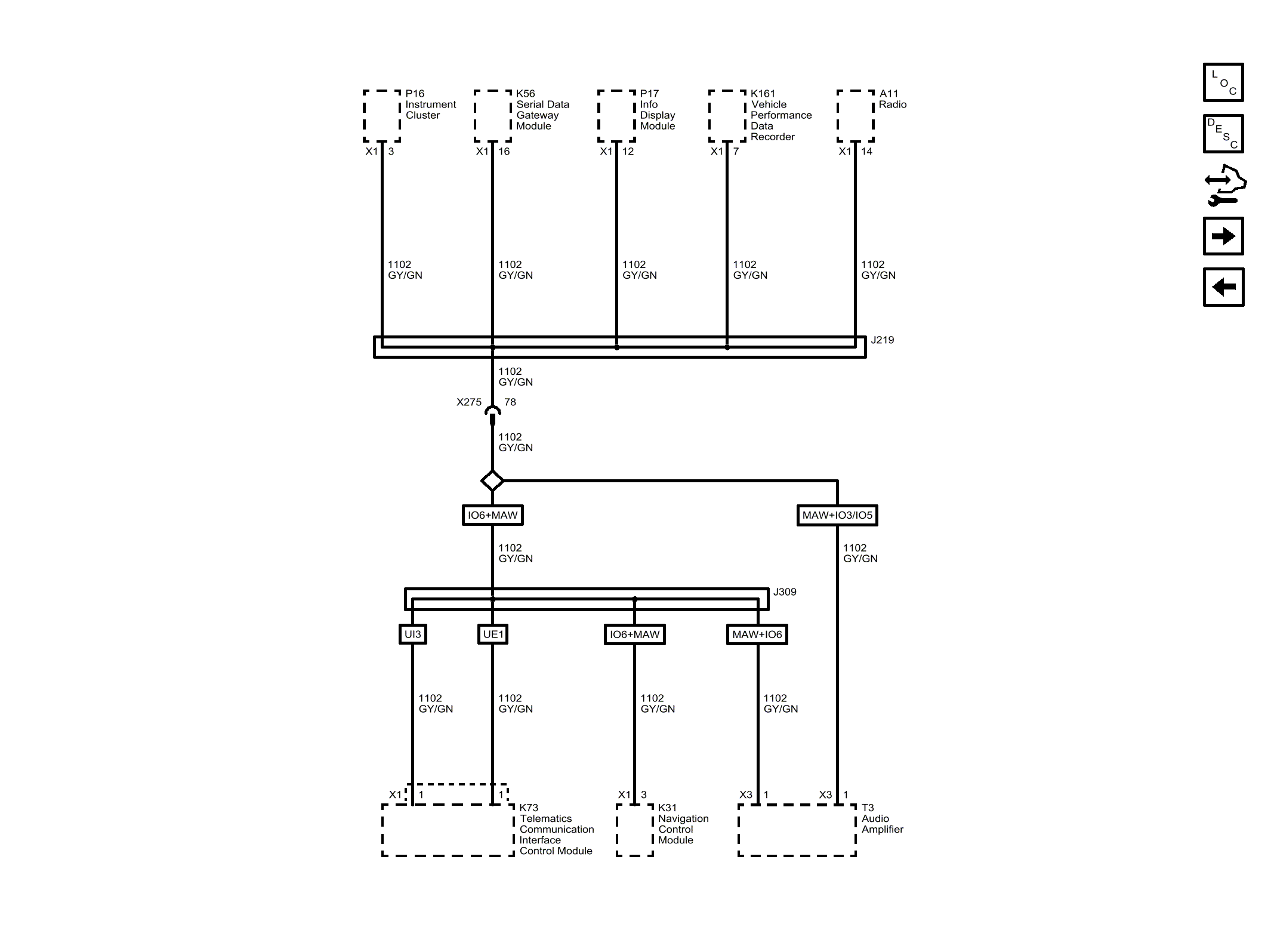

Fig 1: Isolated Low Speed GMLAN
GM4454191Courtesy of GENERAL MOTORS COMPANY
