Section 190 (Steering Wheel And Steering Column)
>>
Schematic Wiring Diagrams
>>
Tilt/Telescoping Steering Column Wiring Schematics
>>
Power Tilt and Telescoping Steering Column (N38)
Power Tilt and Telescoping Steering Column (N38)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

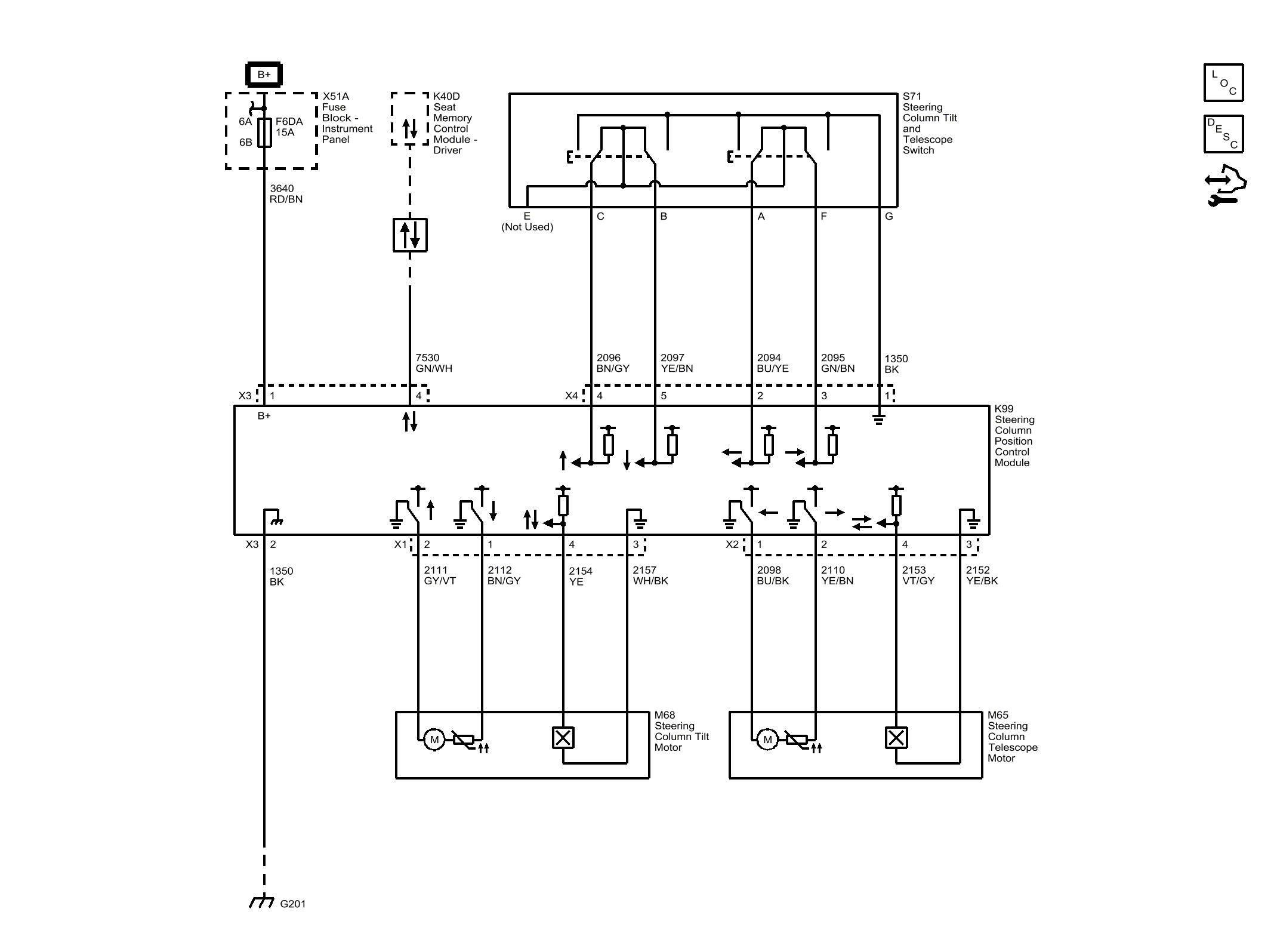

Fig 1: Power Tilt and Telescoping Steering Column (N38)
Courtesy of GENERAL MOTORS COMPANY
