Steering Column Lock (ULS)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

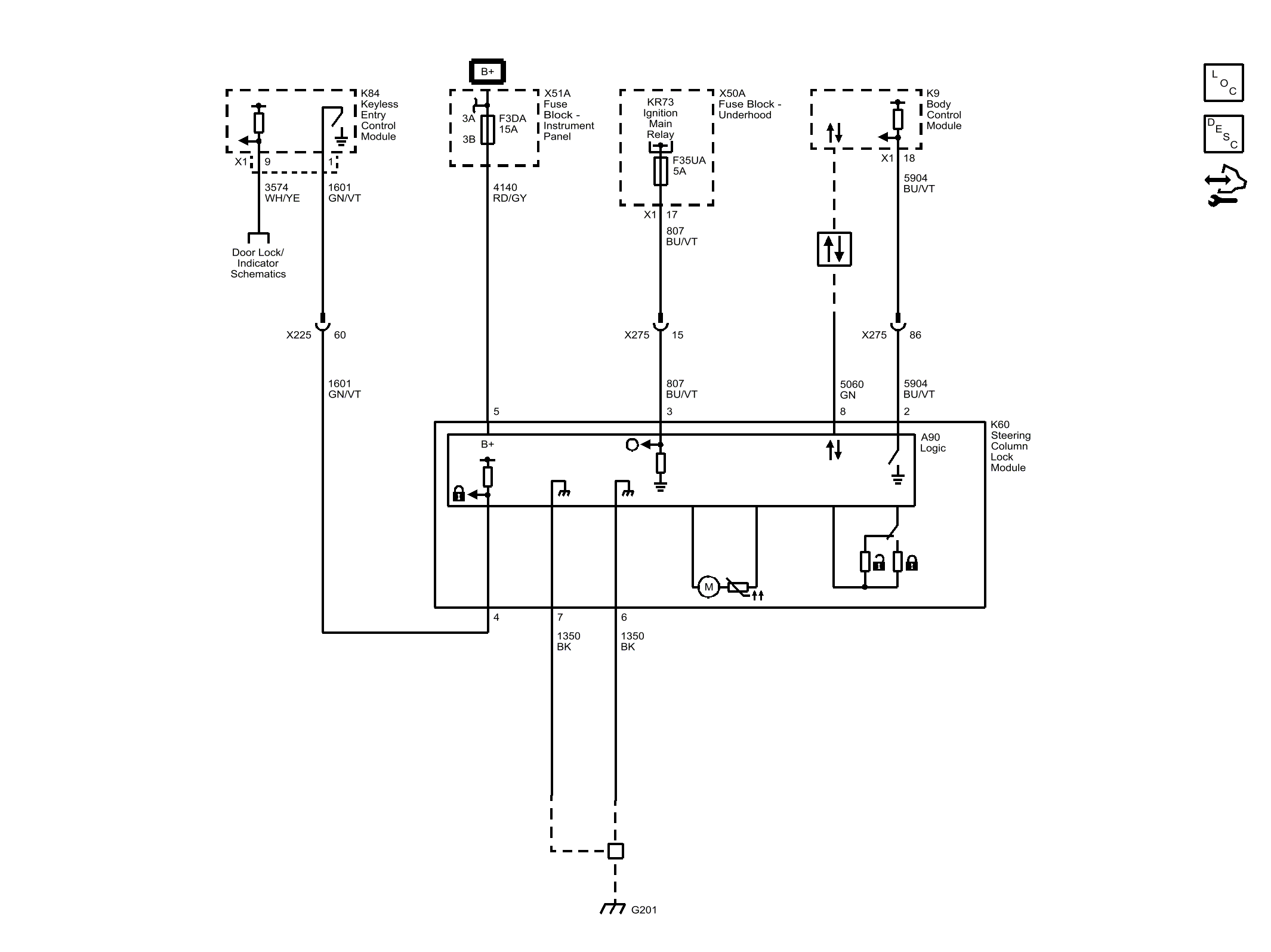

Fig 1: Steering Column Lock (ULS)
GM4492565Courtesy of GENERAL MOTORS COMPANY
