Steering Column Tilt Wheel and Telescope Switch Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Steering Column Upper Trim Cover Replacement
- Remove the steering column lower trim cover fasteners and tilt the cover to access the steering column tilt wheel and telescope switch. Steering Column Lower Trim Cover Replacement
|

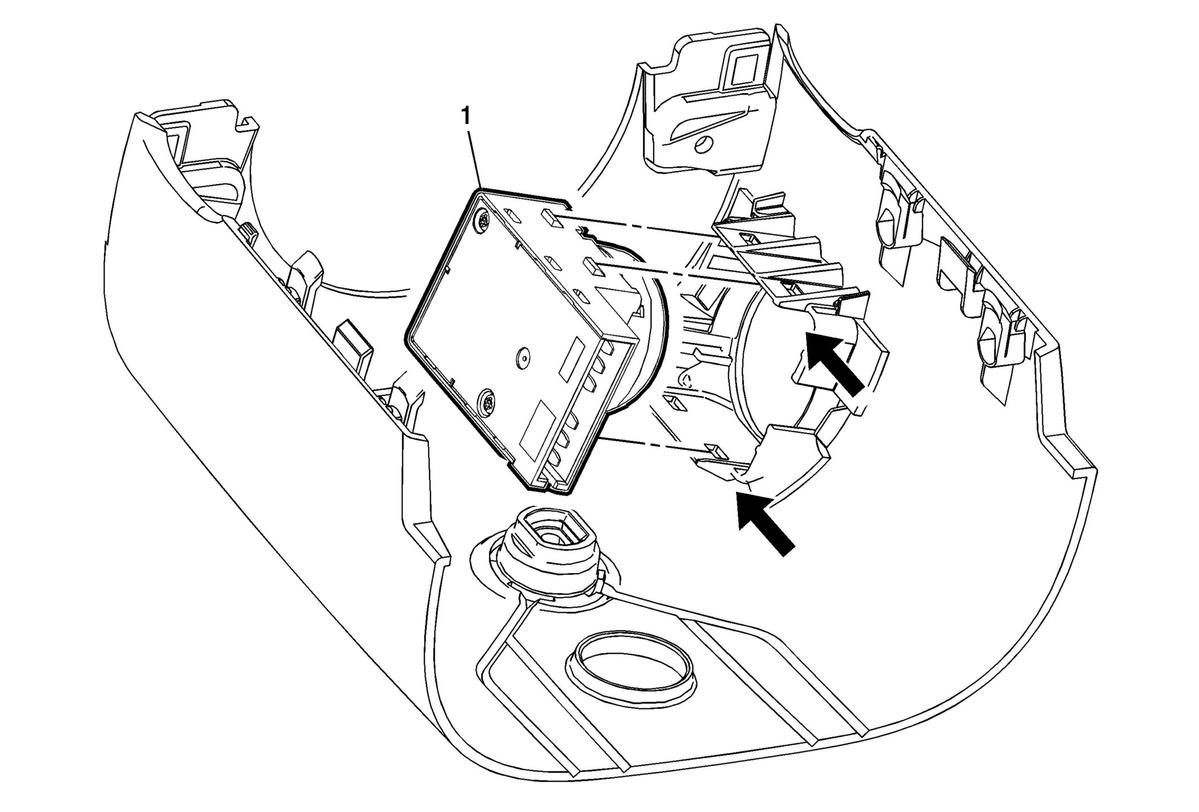

| 1 |
Steering Column Tilt Wheel and Telescope Switch Procedure
- Release the retaining tabs and remove the steering column tilt wheel and telescope switch from the steering column lower trim cover.
- Disconnect the electrical connector.
|
