Steering Column Telescope Actuator Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

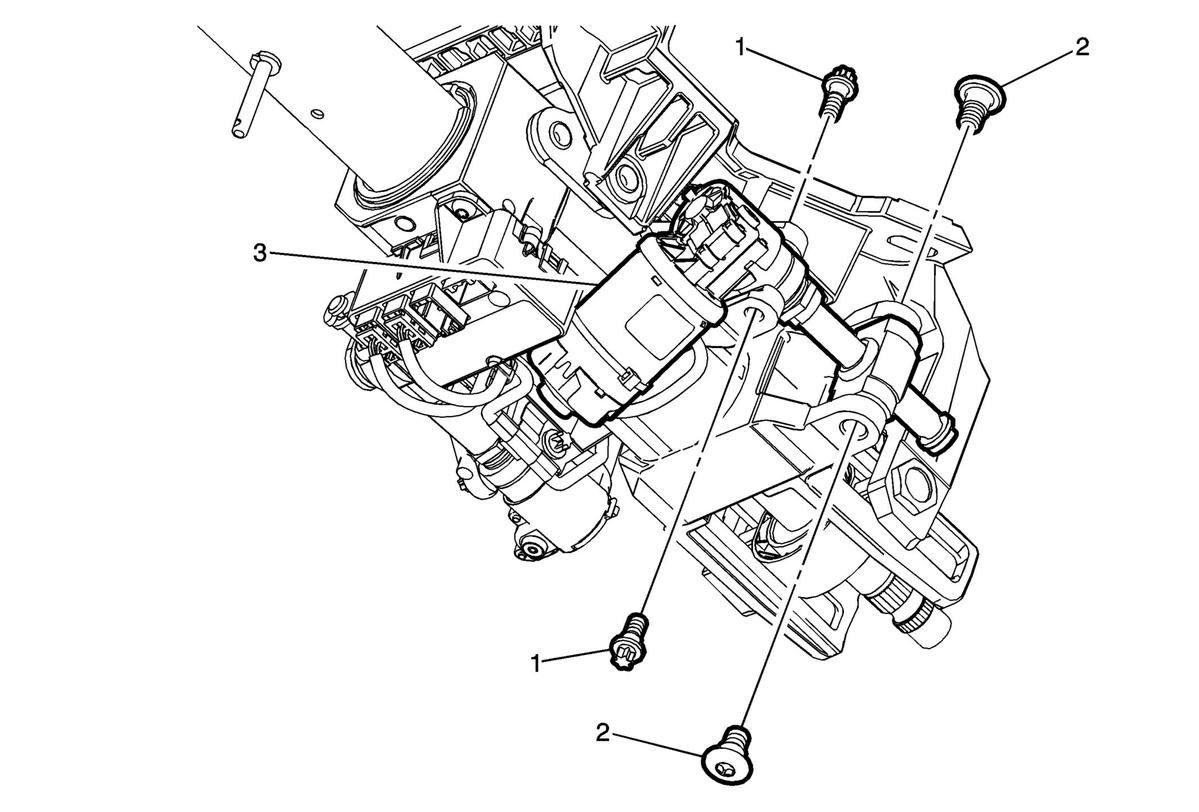

Fig 1: Steering Column Telescope Actuator & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Replacement (N37) Steering Column Replacement (N38)
1	Steering Column Telescope Actuator Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Steering Column Telescope Actuator Pivot Bolt (Qty: 2) Tighten 18 N.m (13 lb ft)
3	Steering Column Telescope Actuator Procedure Disconnect the electrical connectors. After installation and before the steering column upper and lower trim covers are installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn NOTE: In order to relearn the steering column soft and hard stops, the steering column MUST be mounted and fastened and the steering column upper and lower trim covers CANNOT be installed.
