Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

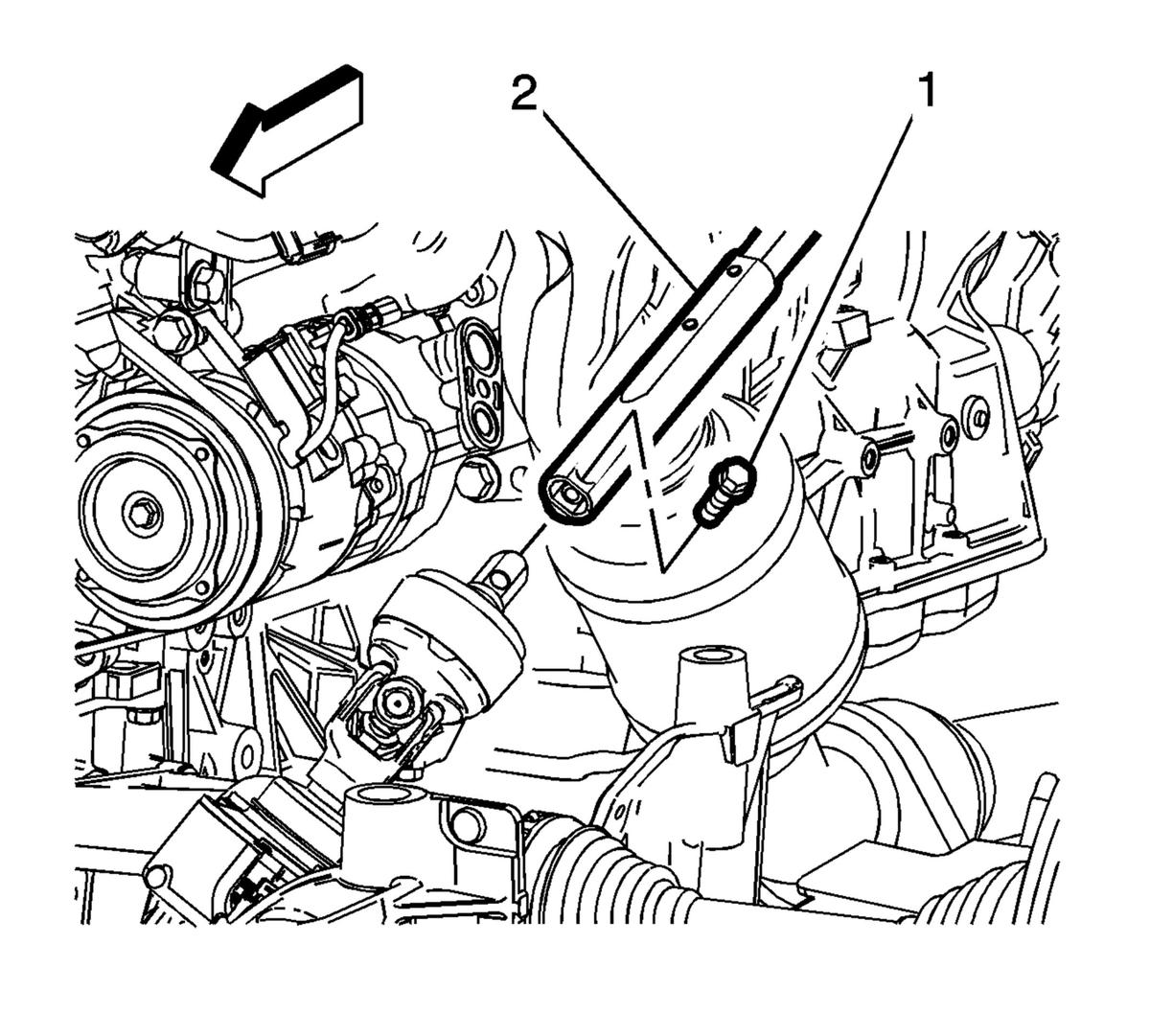

- Install Mid Lower Intermediate Steering Shaft (2) @Intermediate Steering Shaft
- Install Mid Lower Intermediate Steering Shaft Bolt (1) and tighten 36 N.m (27 lb ft)
- Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
- Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

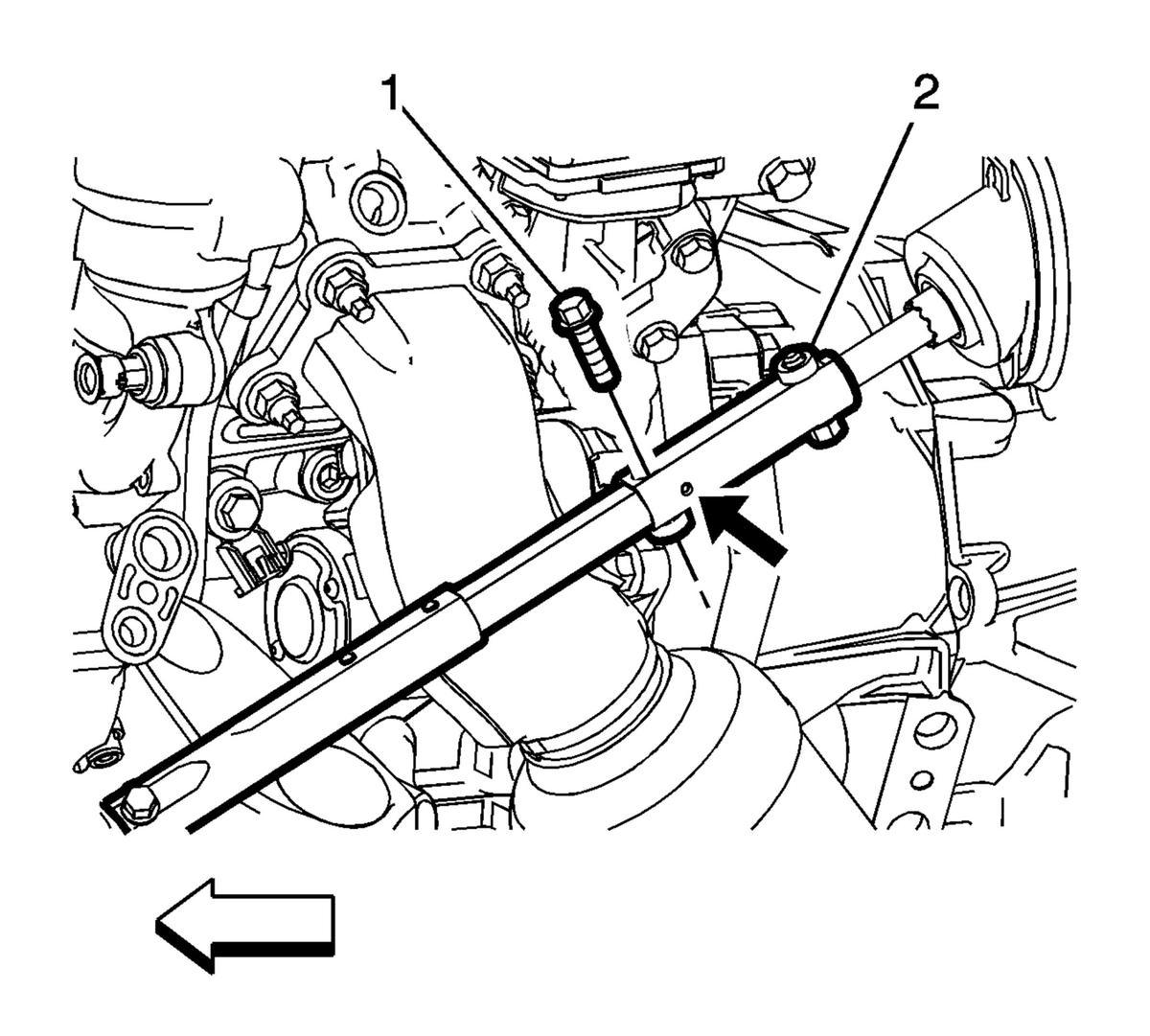

- Press in the lock pin on the mid lower intermediate steering shaft and pull the mid intermediate steering shaft (2) and upper intermediate steering shaft downward and forward along the axis of the upper intermediate steering shaft onto the mid lower intermediate steering shaft. Make sure the lock pin is seated correctly.
- Install Mid Intermediate Steering Shaft Bolt (1) and tighten 36 N.m (27 lb ft)
- Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
- Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers
CAUTION:
Refer to Fastener Caution .
