Intermediate Steering Shaft Inner Boot Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

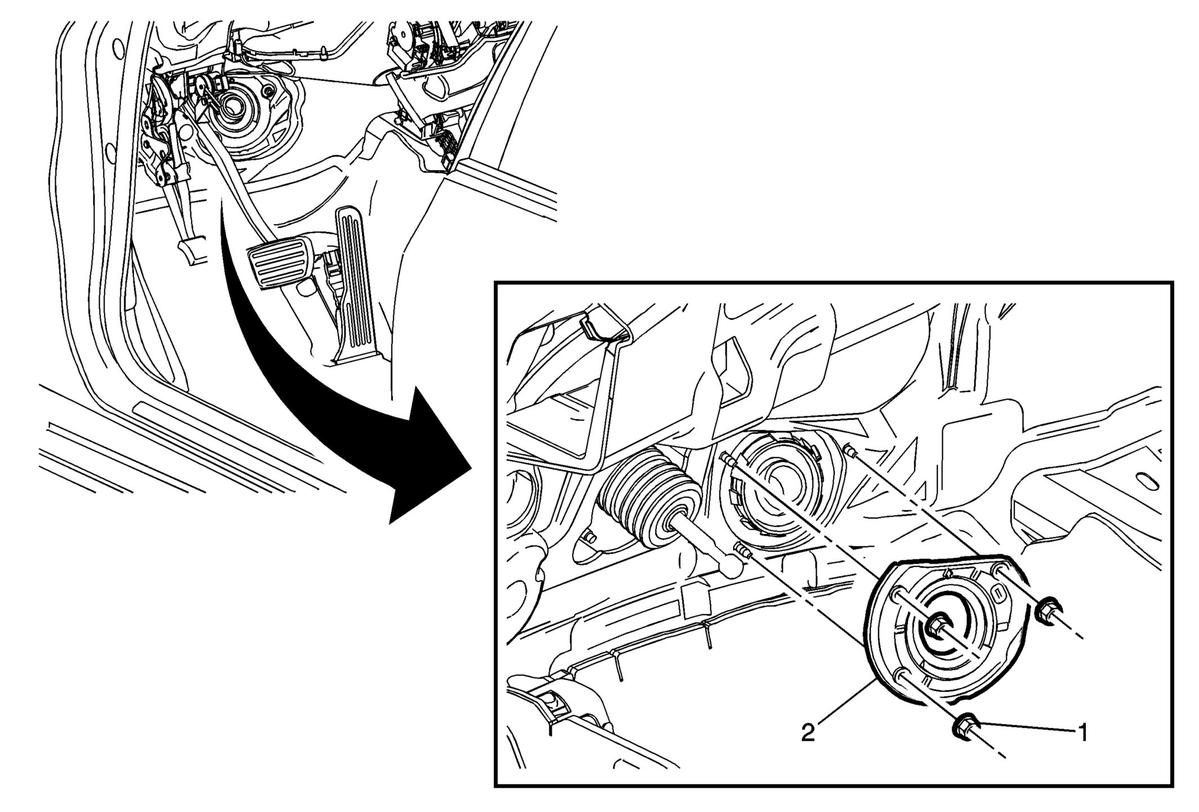

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Tie Bar Replacement |
|
| 1 | Intermediate Steering Shaft Inner Boot Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Intermediate Steering Shaft Boot Procedure When installing the intermediate steering shaft inner boot, align the boot using the alignment arrow on the outside of the boot and the alignment tab on the inside of the boot. |
