Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LCV)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

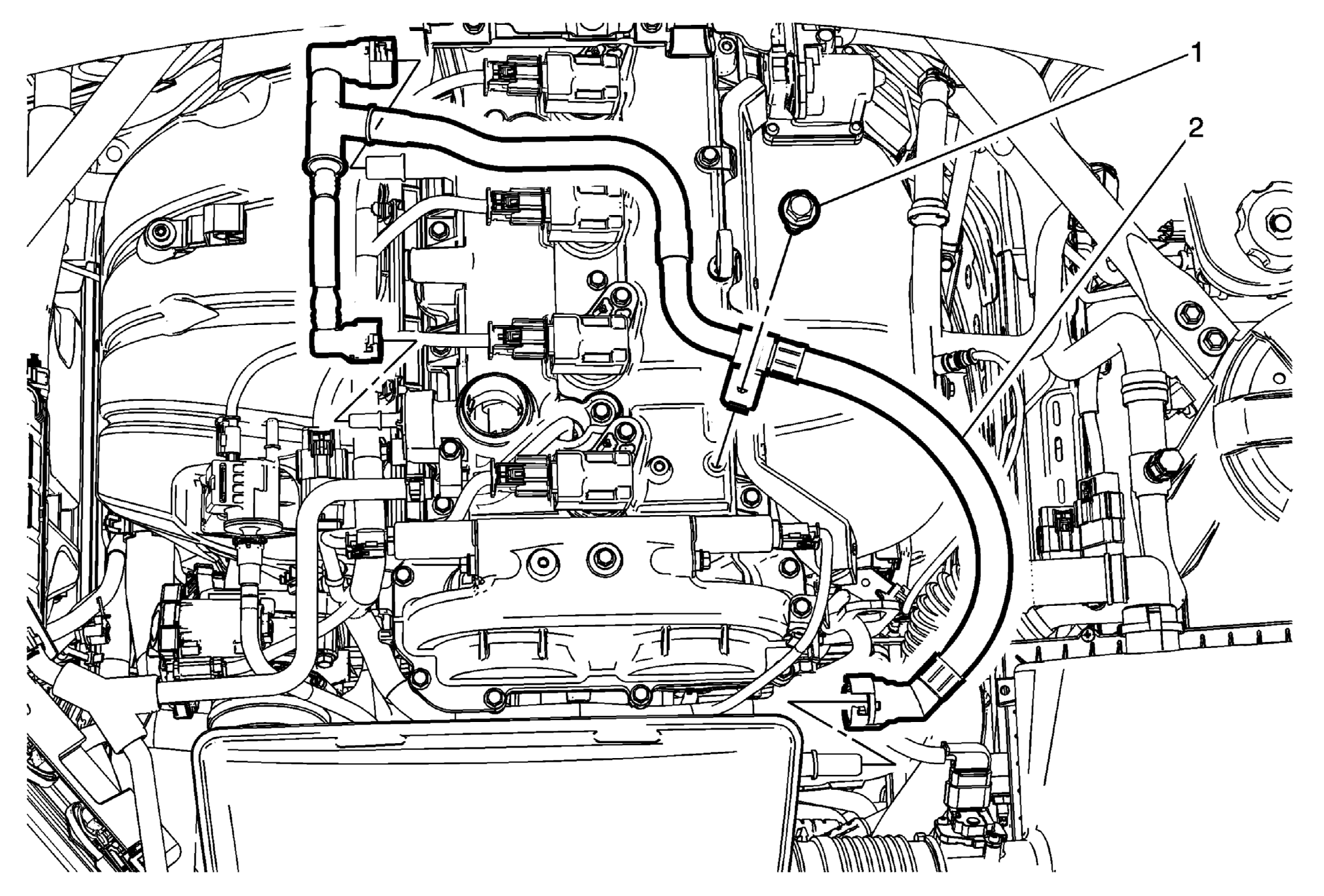

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Positive Crankcase Ventilation Hose Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Positive Crankcase Ventilation Hose |
