Lower Oil Pan Replacement (RWD)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

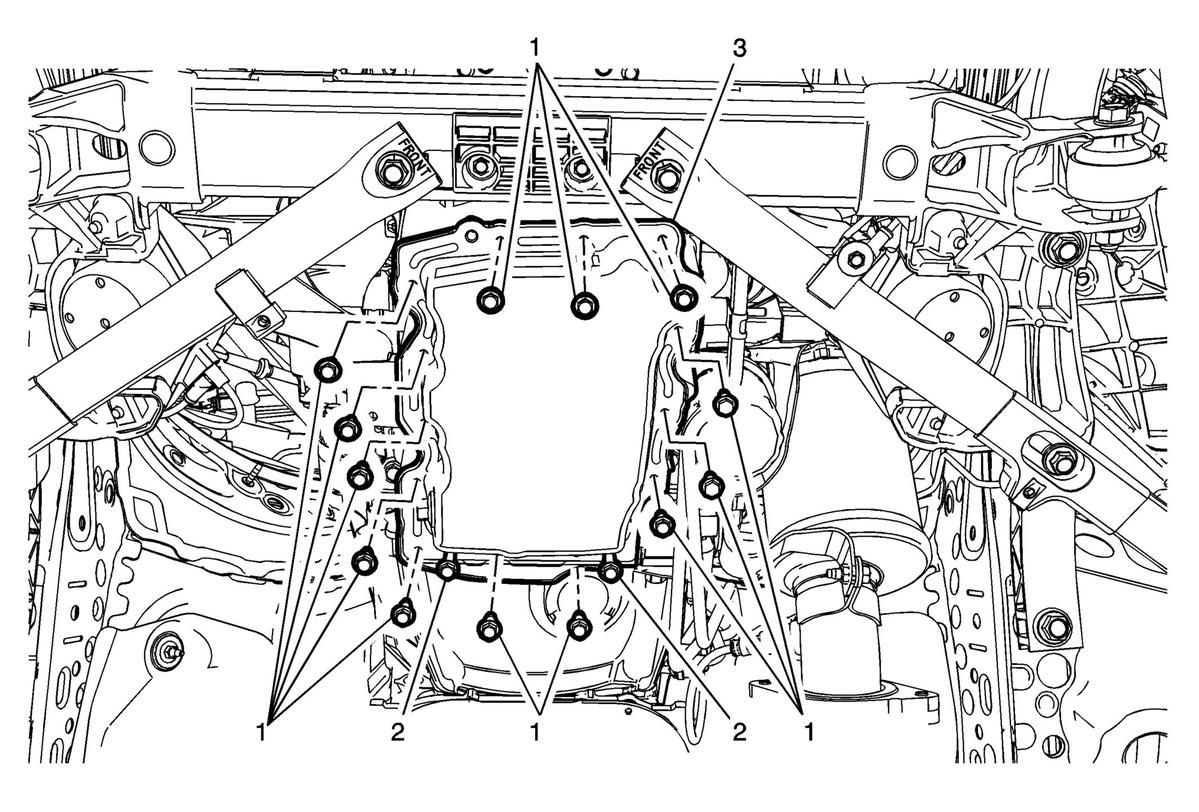

Fig 1: Lower Oil Pan (RWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain engine oil. Refer to Engine Oil and Oil Filter Replacement
1	Oil Pan Bolts (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Oil Pan Bolts (Qty: 13) Tighten 10 N.m (89 lb in)
3	Oil Pan Procedure Apply a 2.25 mm bead of sealer on the level part of the flange around the perimeter of the oil pan. Refer to Adhesives, Fluids, Lubricants, and Sealers (LTG)Adhesives, Fluids, Lubricants, and Sealers (LCV) . NOTE: The lower crankcase surface must be free of contamination prior to applying the sealer. Install and align the oil pan to block within 20 minutes of applying the sealer. The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
