Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG)

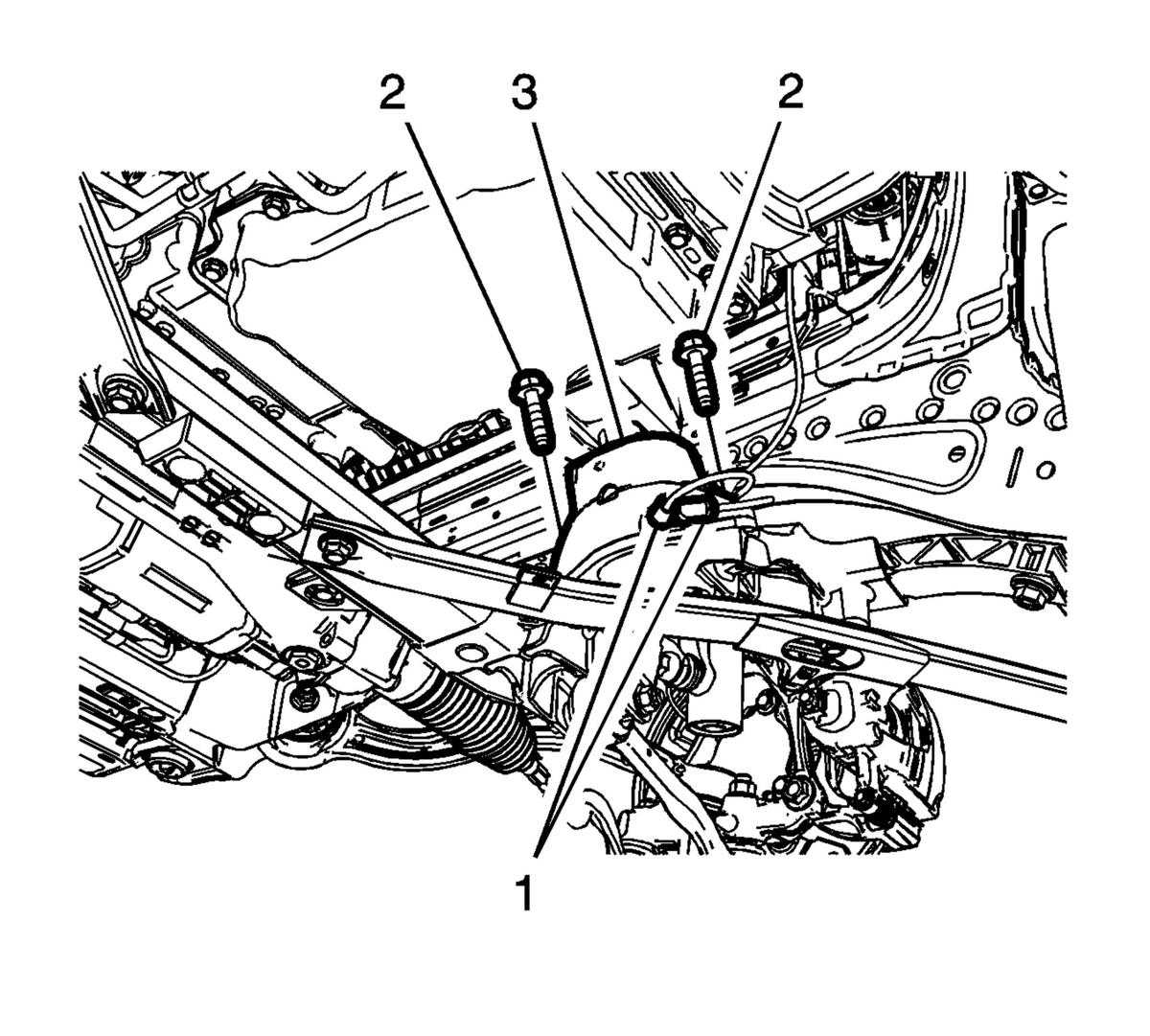

    2. Fig 1: Engine Mount, Vacuum Hose And Bolts - Right Side
    GM2835711Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the engine mount vacuum hose (1).
  3. Remove and DISCARD the engine mount bolts (2).
  4. Remove the engine mount (3).
