Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

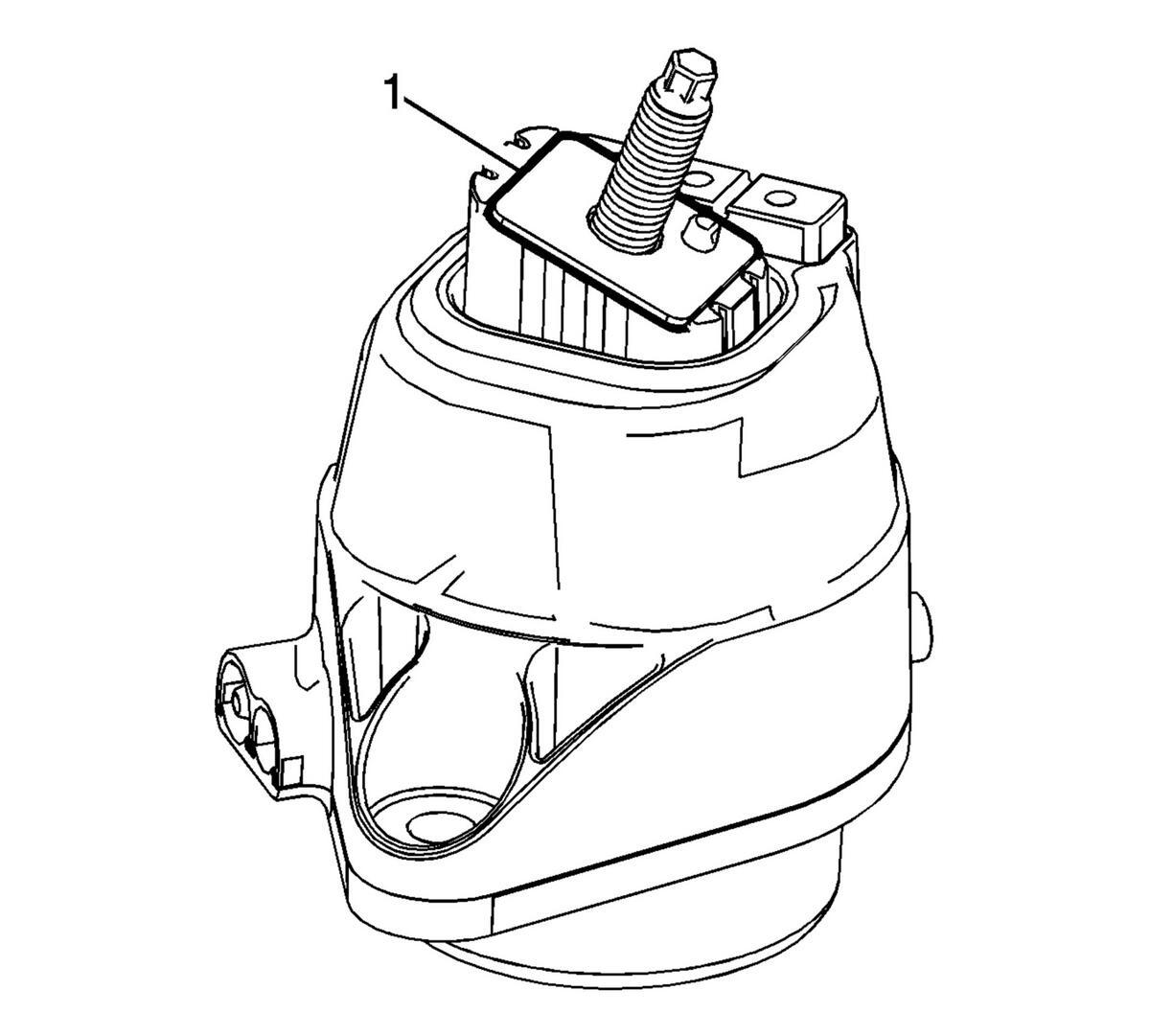

- Inspect the engine mount to ensure the phenolic spacer (1) is in place and not damaged.

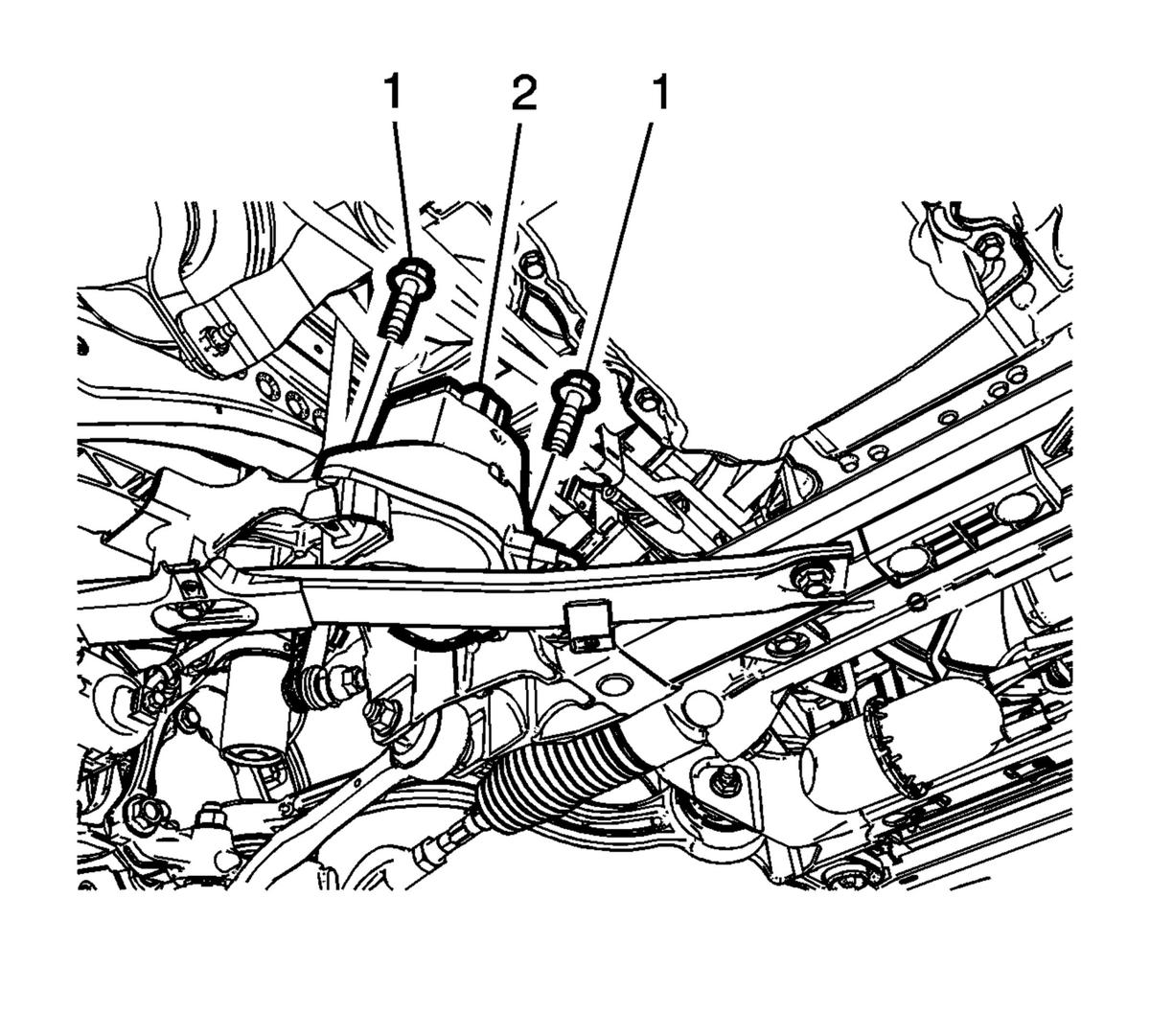

- Install the engine mount (2).
- Install NEW Engine Mount Bolt (1) (Qty: 2)
- Tighten Engine Mount Bolts (1) (Qty: 2)
Tighten
- First Pass: 58 N.m (43 lb ft)
- Final Pass: plus 60-75 degrees
- Connect the engine mount vacuum hose.
- Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG)
CAUTION:
Phenolic spacer must be present to prevent galvanic/corrosive reaction and/or excessive temperature conduction between engine mount bracket and engine mount. Replace mount if phenolic spacer is missing or damaged. Failure to ensure phenolic spacer is intact and not damaged can lead to premature failure of engine mount and/or engine mount bracket.
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
