Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG) .

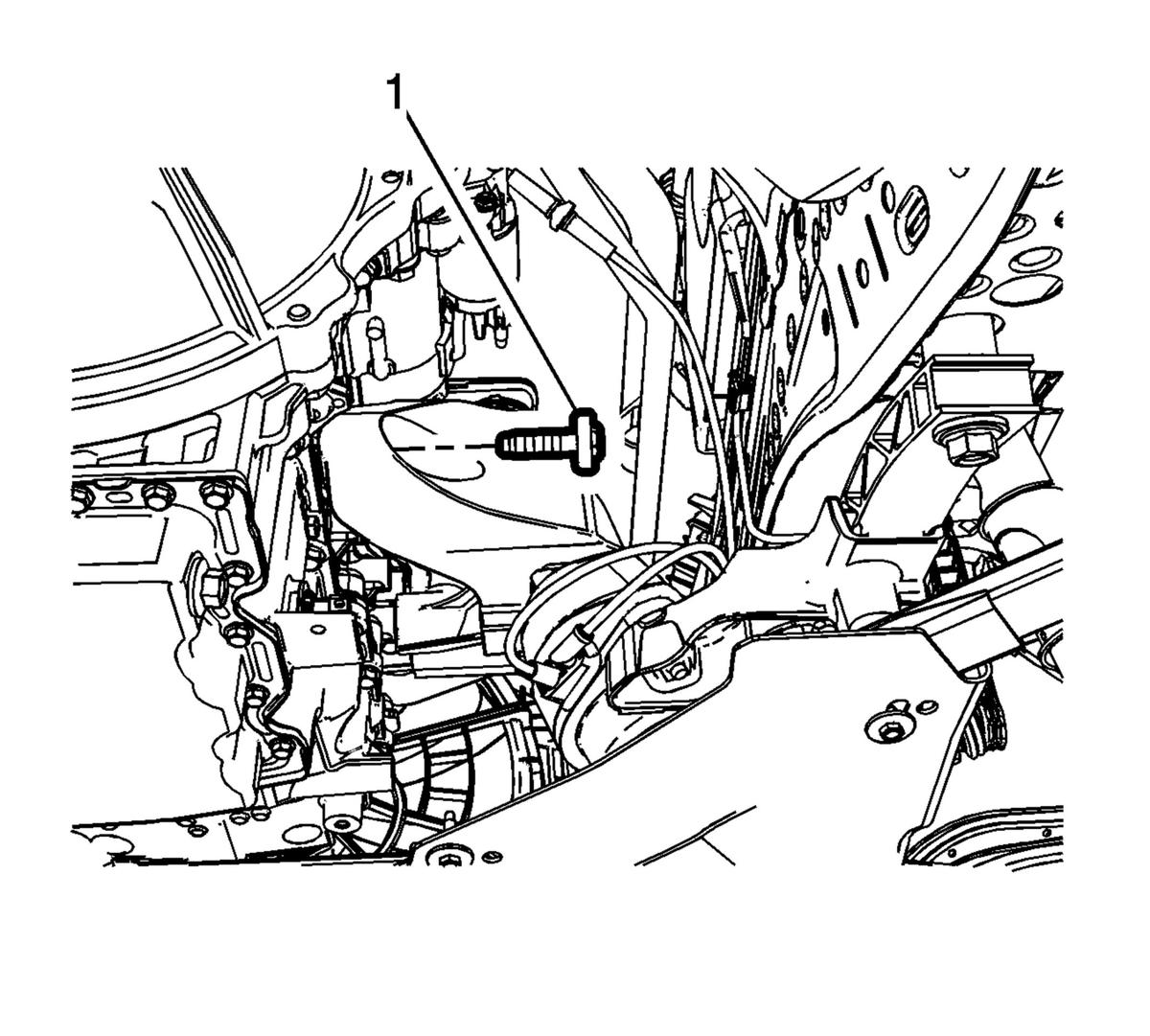

Fig 1: Engine Mount Bracket Bolt

Courtesy of GENERAL MOTORS COMPANY

Remove the engine mount bracket bolt (1).

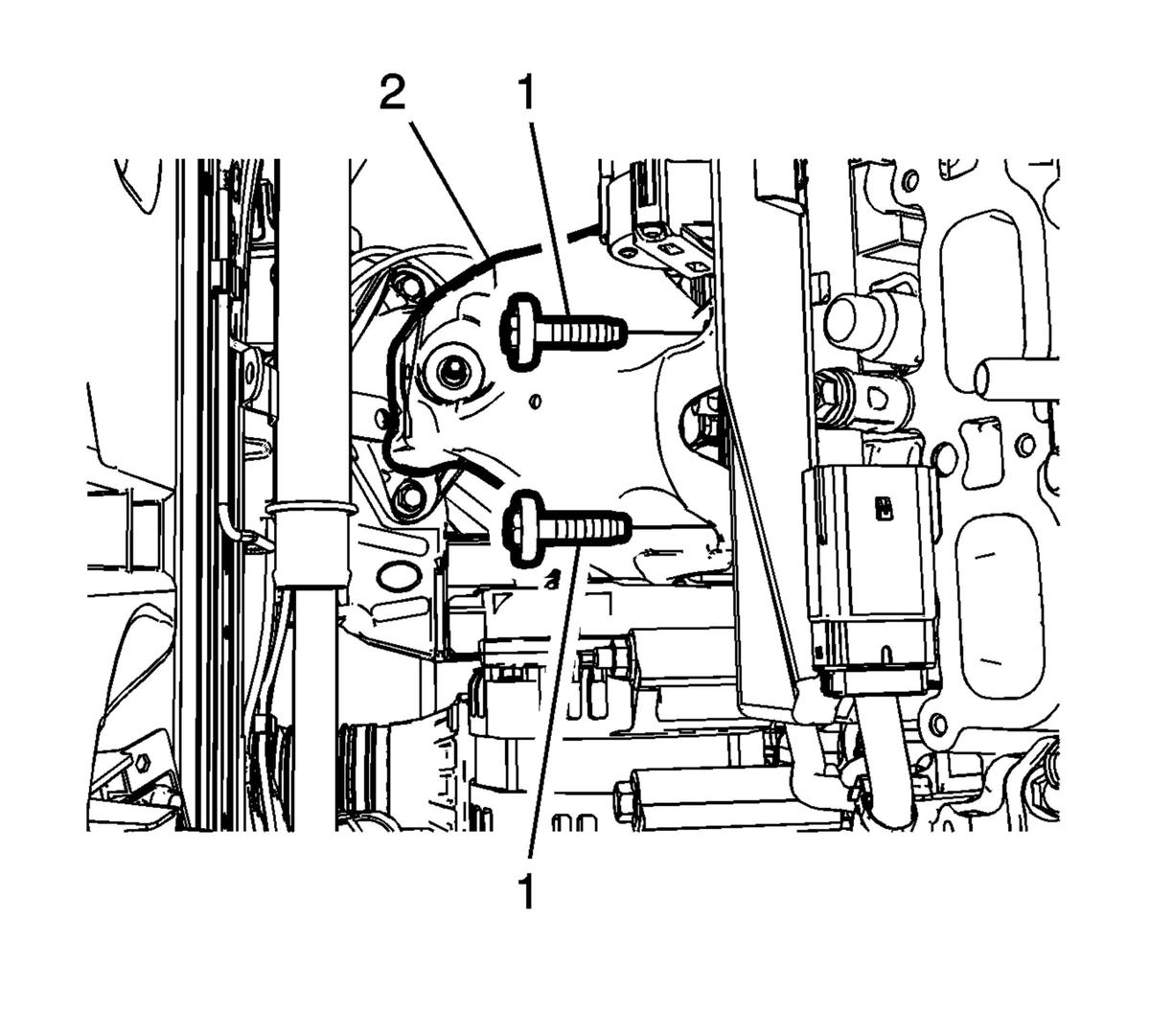

Fig 2: Engine Mount Bracket And Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the engine mount bracket bolts (1).
Remove the engine mount bracket (2).

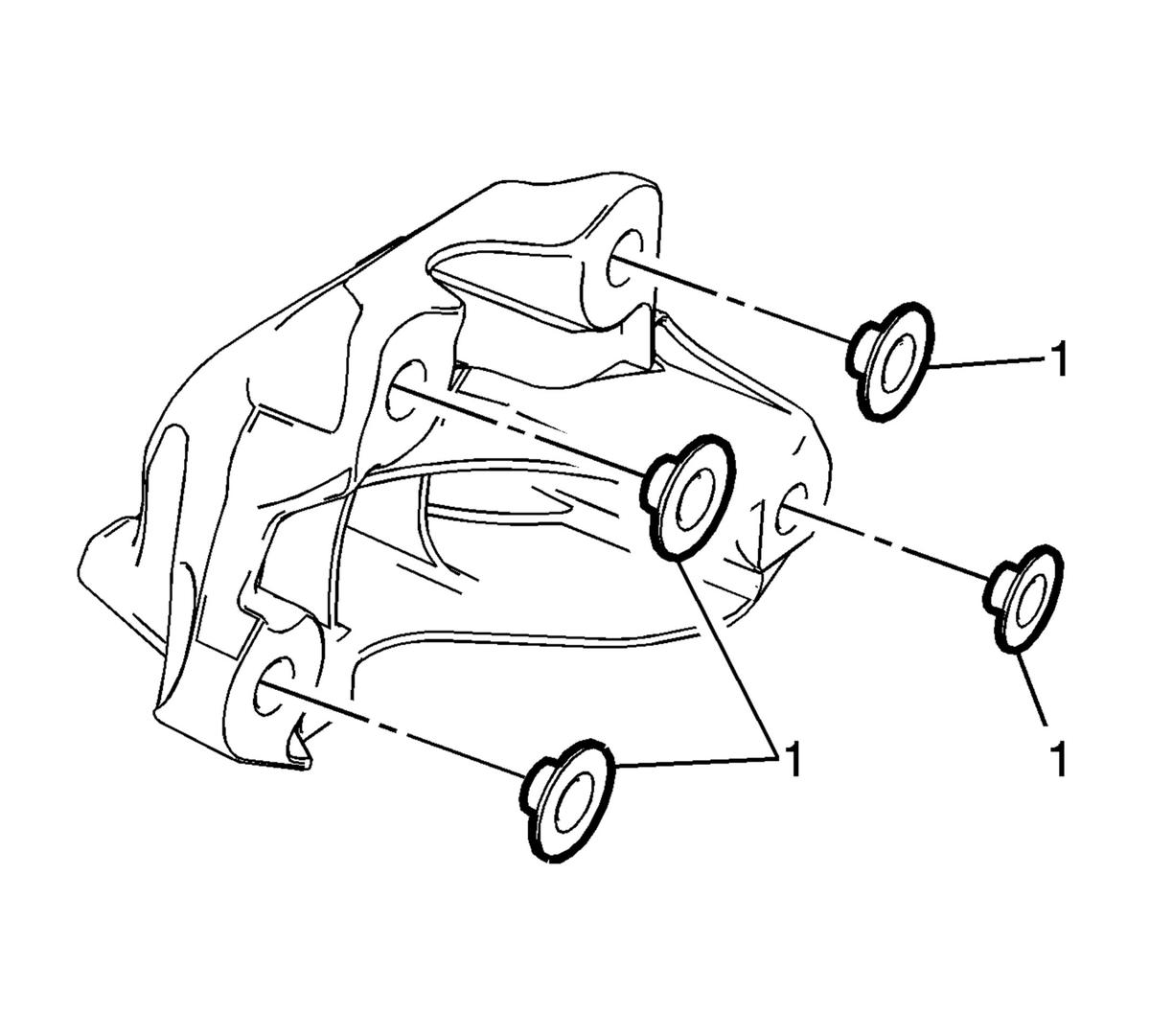

Fig 3: Engine Mount Bracket Pressed On Spacers

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Engine mount brackets are magnesium. To prevent galvanic corrosion, the bracket includes pressed on spacers on the back side. Even though it is highly unlikely, the pressed on spacers may loosen and fall off during engine mount bracket removal. Ensure the spacers are in place before reinstalling an existing bracket.

Engine mount bracket spacers (1).
