Side Window Defogger Outlet Grille Replacement - Left Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

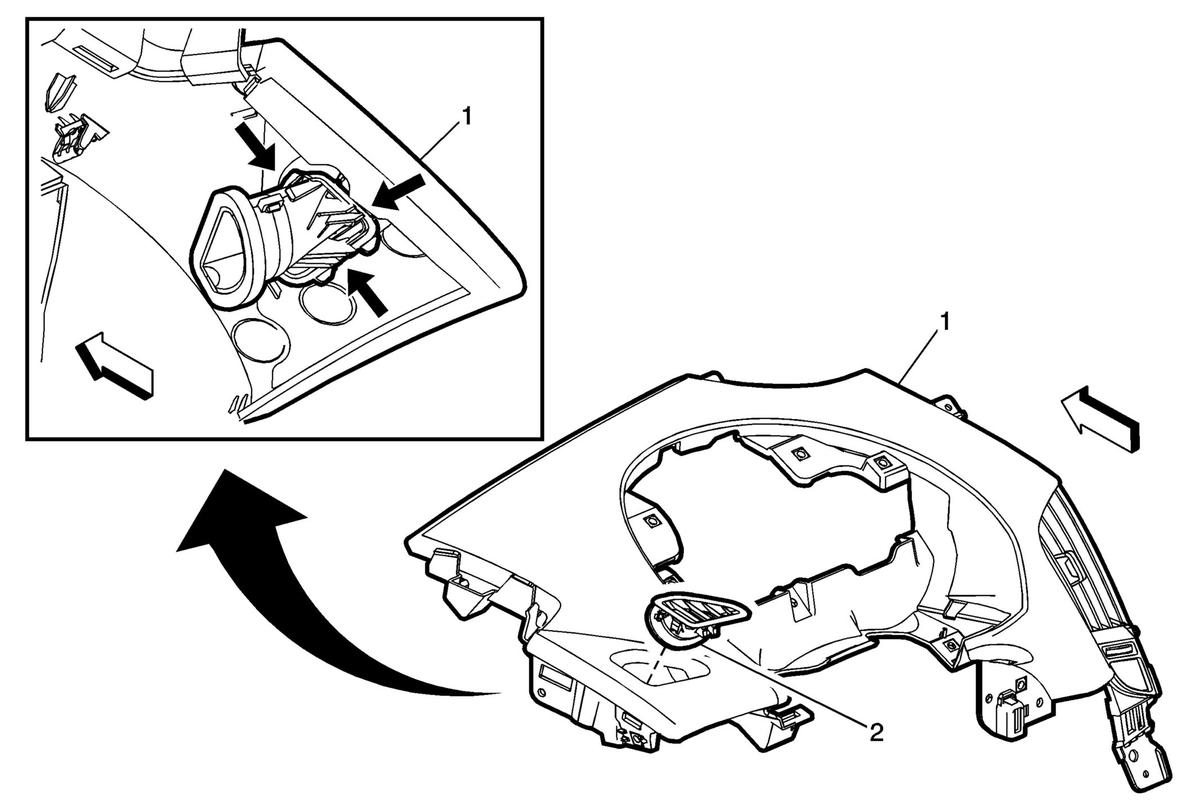

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Upper Trim Panel - Left Side Procedure Refer to Instrument Panel Upper Trim Panel Replacement - Left Side . |
| 2 | Side Window Defogger Outlet Grille - Left Side Procedure Use a suitable tool to release the tabs securing the outlet grille from the instrument panel upper trim panel. |
