Instrument Panel Outer Air Outlet Replacement - Right Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

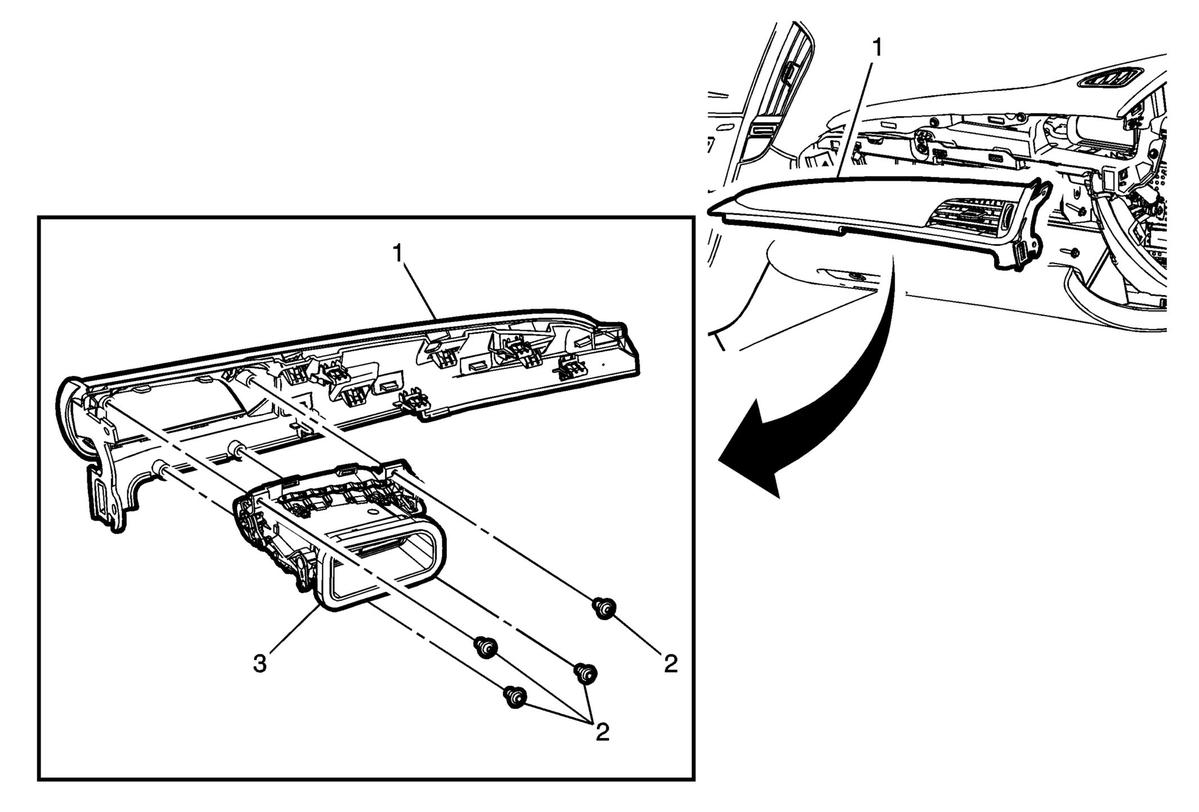

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Trim Plate Applique - Right Side Procedure Refer to Instrument Panel Trim Plate Applique Replacement - Right Side . |
| 2 | Instrument Panel Outer Air Outlet Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 3 | Instrument Panel Outer Air Outlet - Right Side |
