Instrument Panel Compartment Air Duct Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

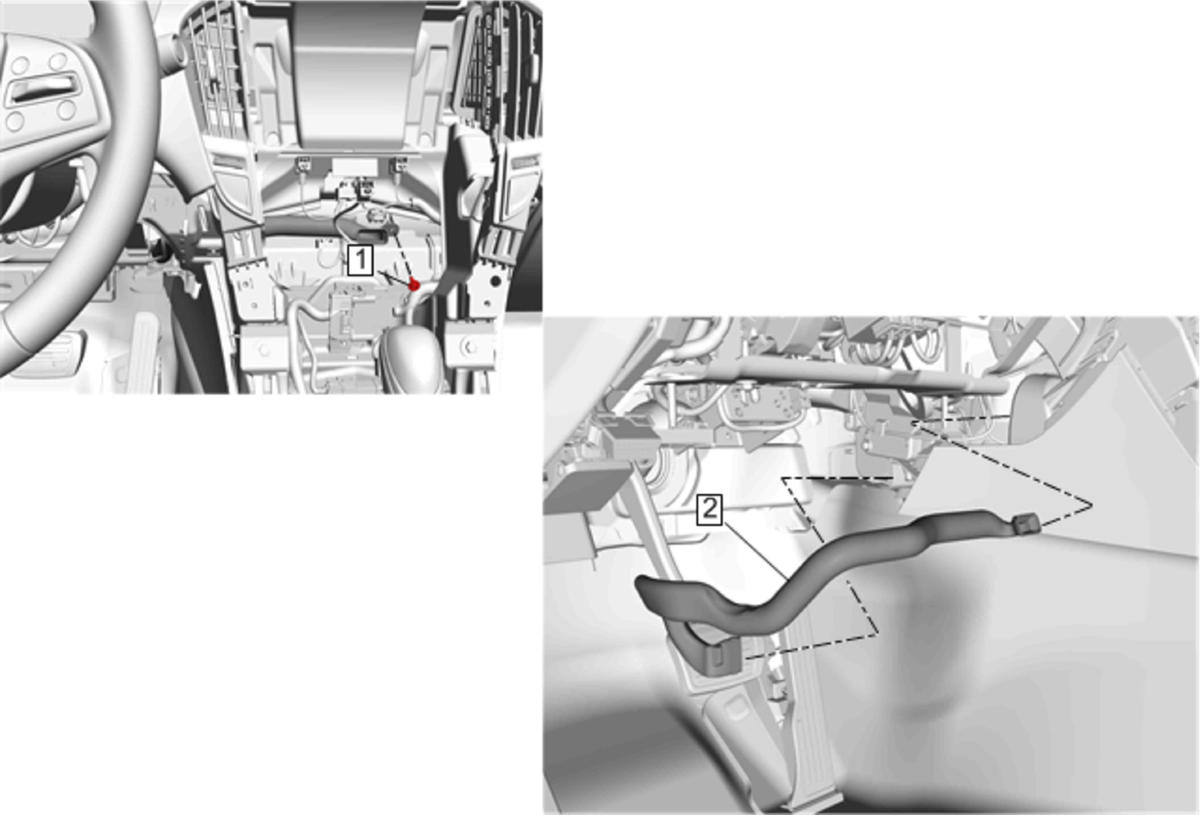

Fig 1: Instrument Panel Compartment Air Duct

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the radio control assembly. Refer to Radio Control Assembly Replacement Remove Floor Front Air Outlet Duct - Left Side. Refer to Floor Front Air Outlet Duct Replacement - Left Side
1	Instrument Panel Compartment Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten to 1.5 N.m (13 lb in)
2	Instrument Panel Compartment Air Duct Procedure Disconnect and maneuver the instrument panel compartment air duct out from behind the instrument panel assembly.

Call out

Component Name

Preliminary Procedures

Remove the radio control assembly. Refer to Radio Control Assembly Replacement
Remove Floor Front Air Outlet Duct - Left Side. Refer to Floor Front Air Outlet Duct Replacement - Left Side

Instrument Panel Compartment Air Duct Bolt

CAUTION:

Refer to Fastener Caution .

Tighten to 1.5 N.m (13 lb in)

Instrument Panel Compartment Air Duct
Procedure
Disconnect and maneuver the instrument panel compartment air duct out from behind the instrument panel assembly.
