Instrument Panel Center Air Outlet Bracket Replacement - Driver Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

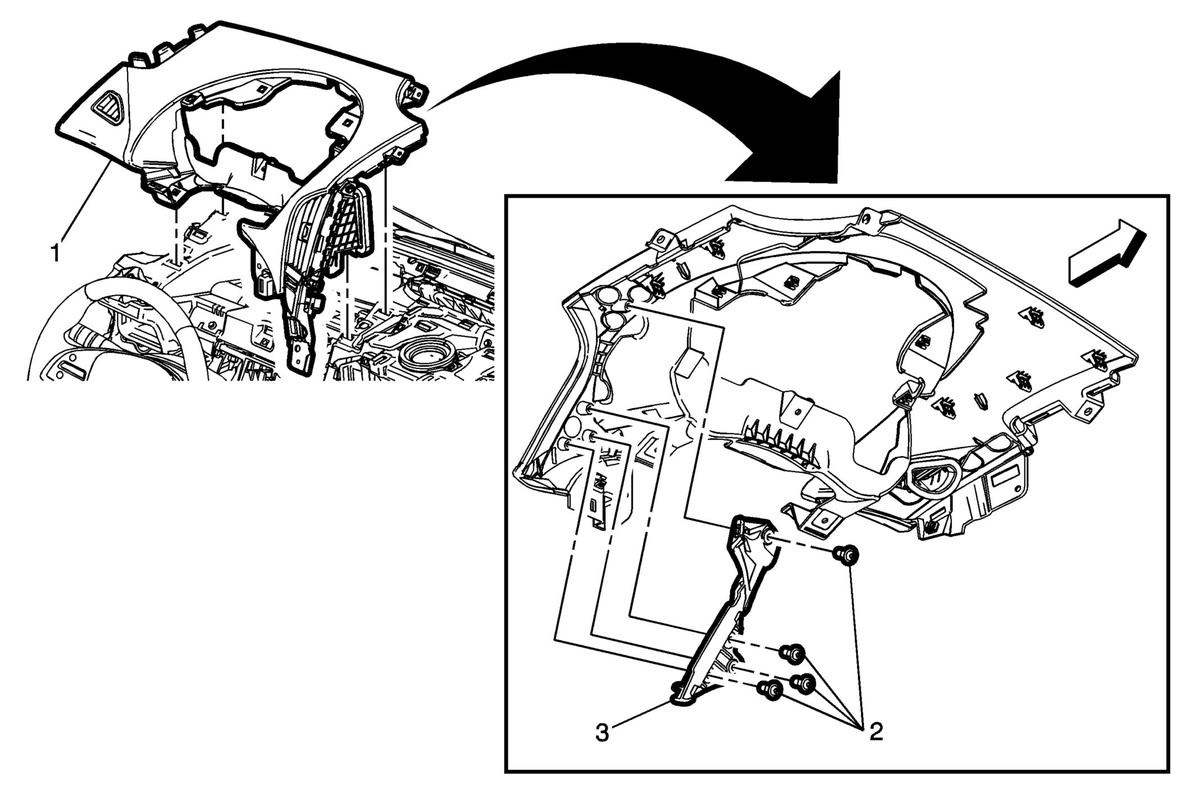

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Upper Trim Panel - Left Side Procedure Refer to Instrument Panel Upper Trim Panel Replacement - Left Side . |
| 2 | Instrument Panel Center Air Outlet Bracket Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 3 | Instrument Panel Center Air Outlet Bracket - Driver Side |
