Heater and Air Conditioning Control Temperature Lever Replacement - Left Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning mode control cam cover assembly. Refer to Mode Control Cam Cover Replacement . |
|

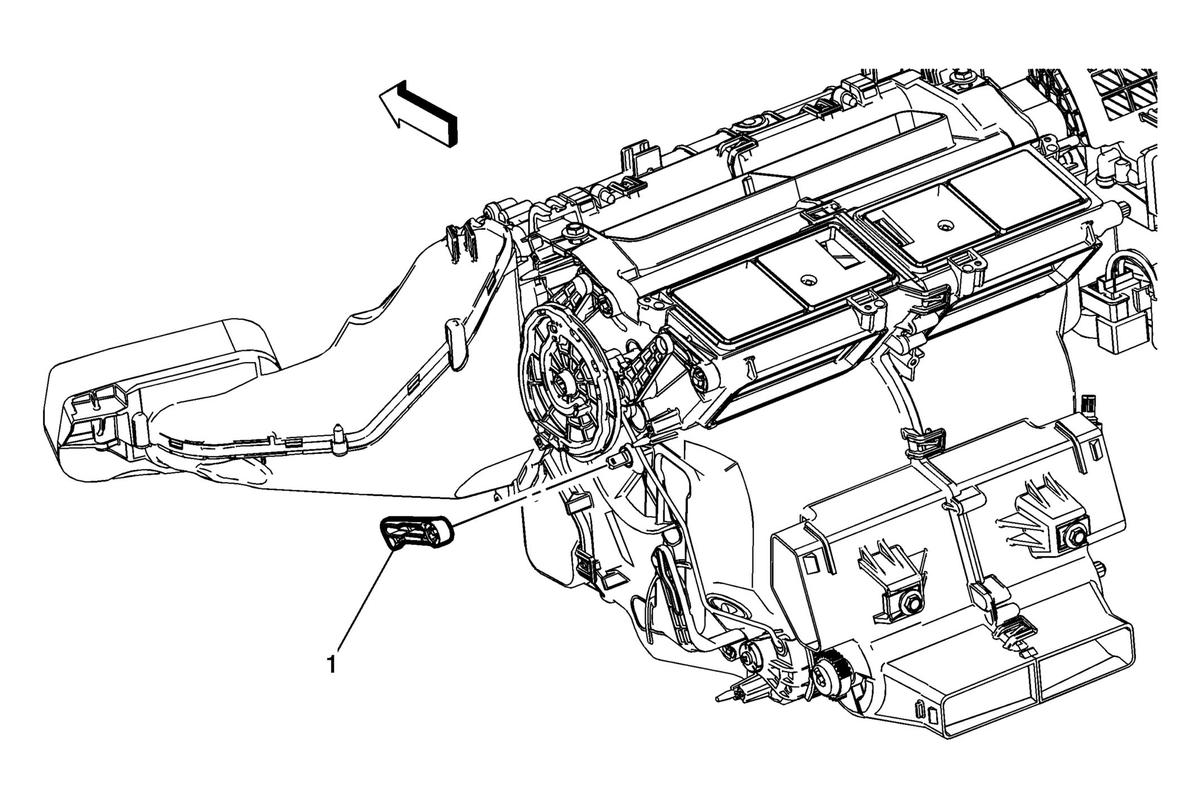

| 1 | Heater and Air Conditioning Control Temperature Valve Actuator Lever - Left Side |
