Heater Water Auxiliary Pump Replacement (LTG with KL9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

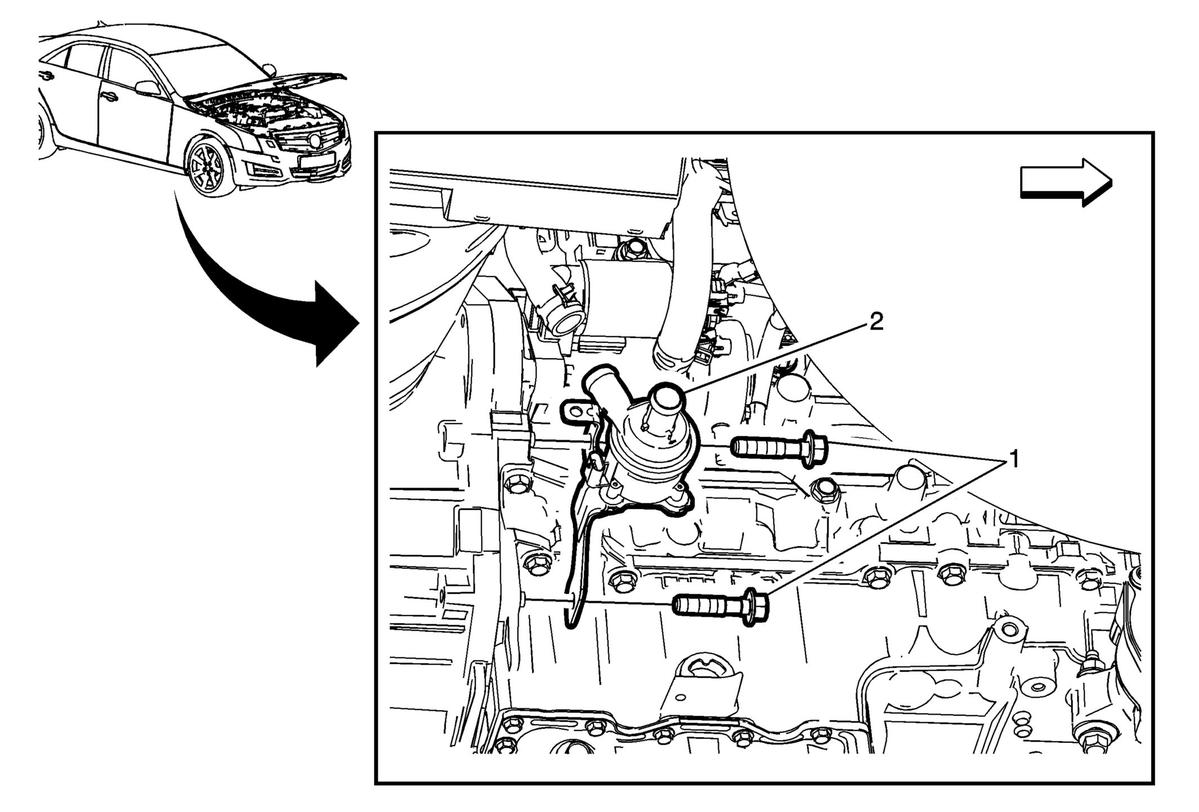

Fig 1: Heater Water Auxiliary Pump & Fasteners (LTG with KL9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716) . Remove auxiliary heater outlet hose from the heater water auxiliary pump. Refer to Auxiliary Heater Outlet Hose Replacement (LTG with M3L, KL9) . Remove heater outlet hose from the heater water auxiliary pump. Refer to Heater Outlet Hose Replacement (LTG with KL9) . Disconnect the electrical connector from the heater water auxiliary pump. Remove the wiring harness retainer from the heater water auxiliary pump bracket.
1	Heater Water Auxiliary Pump Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Heater Water Auxiliary Pump

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716) .
Remove auxiliary heater outlet hose from the heater water auxiliary pump. Refer to Auxiliary Heater Outlet Hose Replacement (LTG with M3L, KL9) .
Remove heater outlet hose from the heater water auxiliary pump. Refer to Heater Outlet Hose Replacement (LTG with KL9) .
Disconnect the electrical connector from the heater water auxiliary pump.
Remove the wiring harness retainer from the heater water auxiliary pump bracket.

Heater Water Auxiliary Pump Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
50 N.m (37 lb ft)

Heater Water Auxiliary Pump
