Heater Core Tube Bracket Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

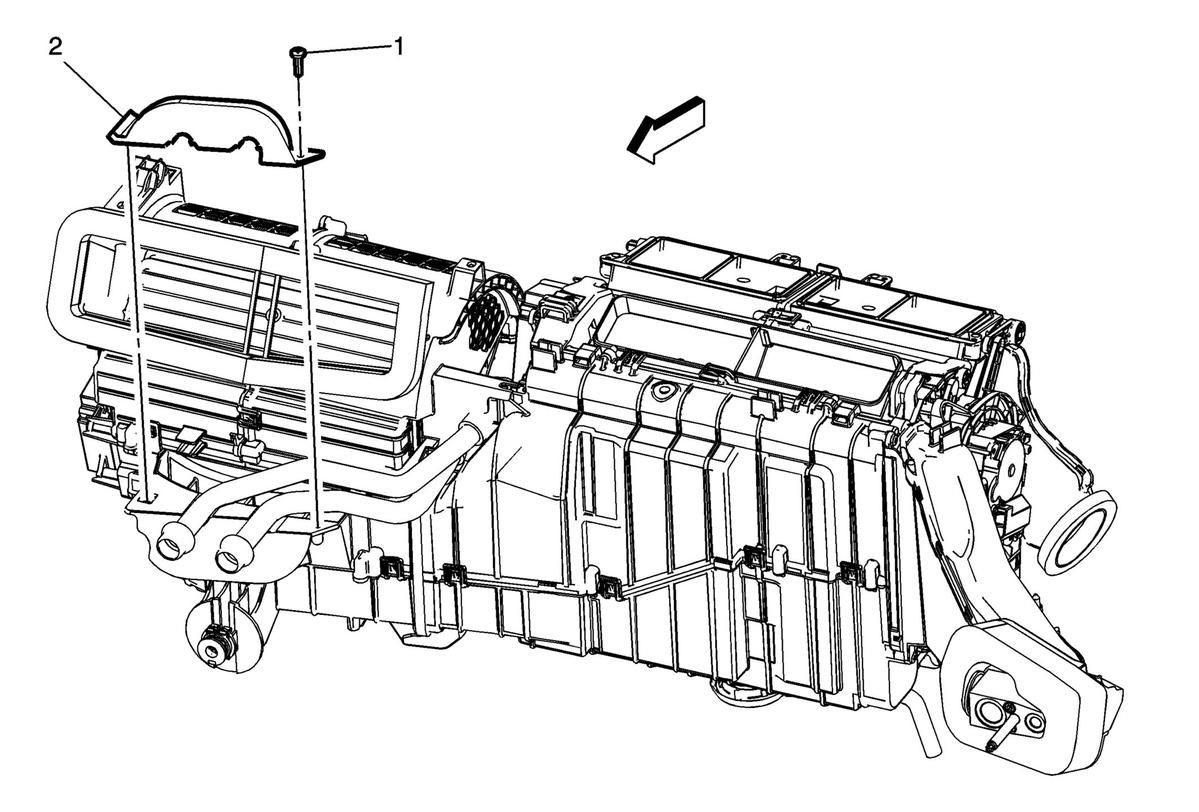

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . |
|
| 1 | Heater Core Tube Bracket Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Heater Core Tube Bracket |
