Front Floor Console Rear Air Outlet Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

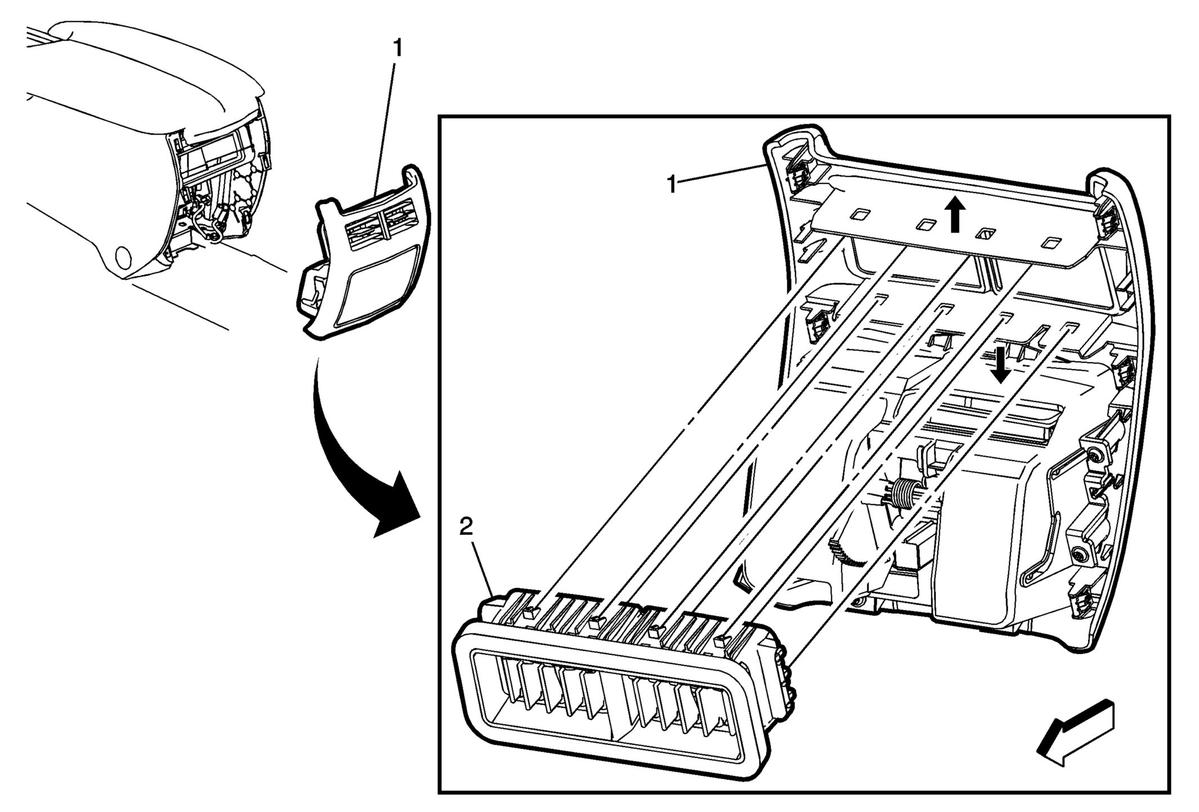

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Rear Trim Panel Procedure Refer to Front Floor Console Rear Trim Panel Replacement . |
| 2 | Front Floor Console Rear Air Outlet Procedure Use a flat-bladed plastic trim tool to remove the air outlet from the trim panel. |
