Floor Rear Air Outlet Duct Replacement - Right Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

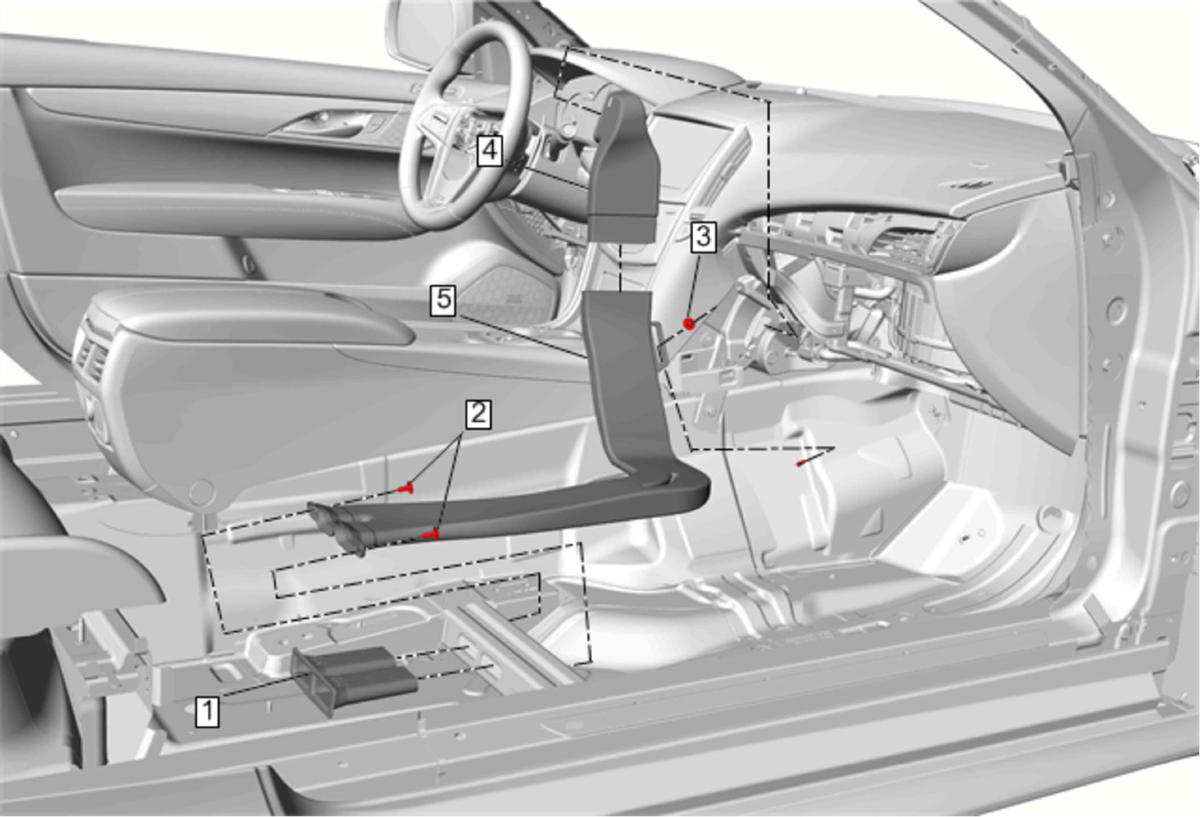

Fig 1: Floor Rear Air Outlet Duct - Right Side

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove Instrument Panel Lower Trim Panel Insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement Remove Front Floor Panel Carpet Replacement - Right Side. Refer to Front Floor Panel Carpet Replacement - Right Side (Sedan)Front Floor Panel Carpet Replacement - Right Side (Coupe)
1	Floor Rear Air Outlet Duct - Right Side Insert
2	Floor Rear Air Outlet Duct Retainer - Right Side (Qty: 2)
3	Floor Rear Air Outlet Duct Nut CAUTION: Refer to Fastener Caution . Tighten to 5 N.m (44 lb in)
4	Floor Rear Air Outlet Duct Adapter - Right Side Procedure After removing the floor rear air outlet duct as an assembly, separate the adapter from the duct.
5	Floor Rear Air Outlet Duct - Right Side Procedure Remove the floor rear air outlet duct and the floor rear air outlet adapter as an assembly.
