Floor Rear Air Outlet Duct Replacement - Left Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

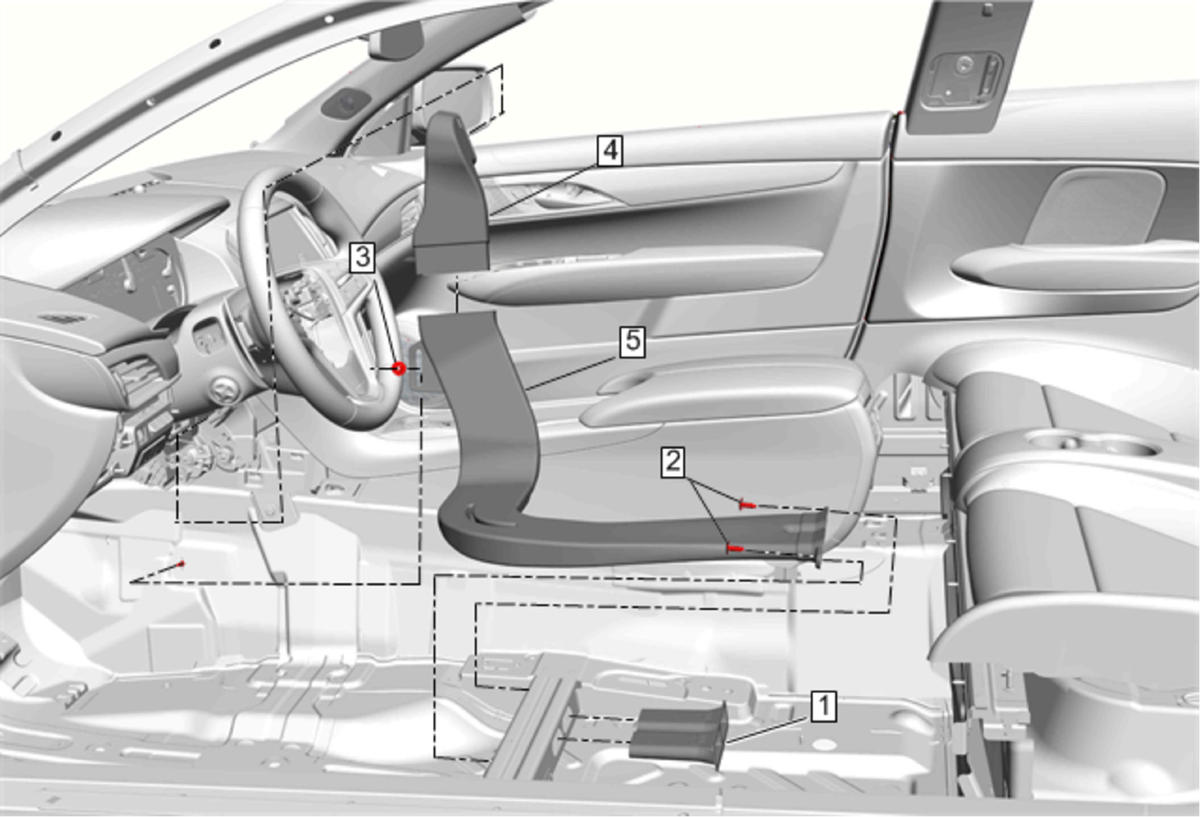

Fig 1: Floor Rear Air Outlet Duct - Left Side

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove Instrument Panel Lower Trim Panel Insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) Remove Instrument Panel Knee Bolster. Refer to Instrument Panel Knee Bolster Replacement Remove Front Floor Panel Carpet - Left Side. Refer to Front Floor Panel Carpet Replacement - Left Side (Sedan)Front Floor Panel Carpet Replacement - Left Side (Coupe)
1	Floor Rear Air Outlet Duct - Left Side Insert
2	Floor Rear Air Outlet Duct Retainer - Left Side (Qty: 2)
3	Floor Rear Air Outlet Duct Nut CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
4	Floor Rear Air Outlet Duct Adapter - Left Side Procedure After removing the floor rear air outlet duct as an assembly, separate the adapter from the duct.
5	Floor Rear Air Outlet Duct - Left Side Procedure Remove the floor rear air outlet duct and the floor rear air outlet adapter as an assembly.
