Blower Motor Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

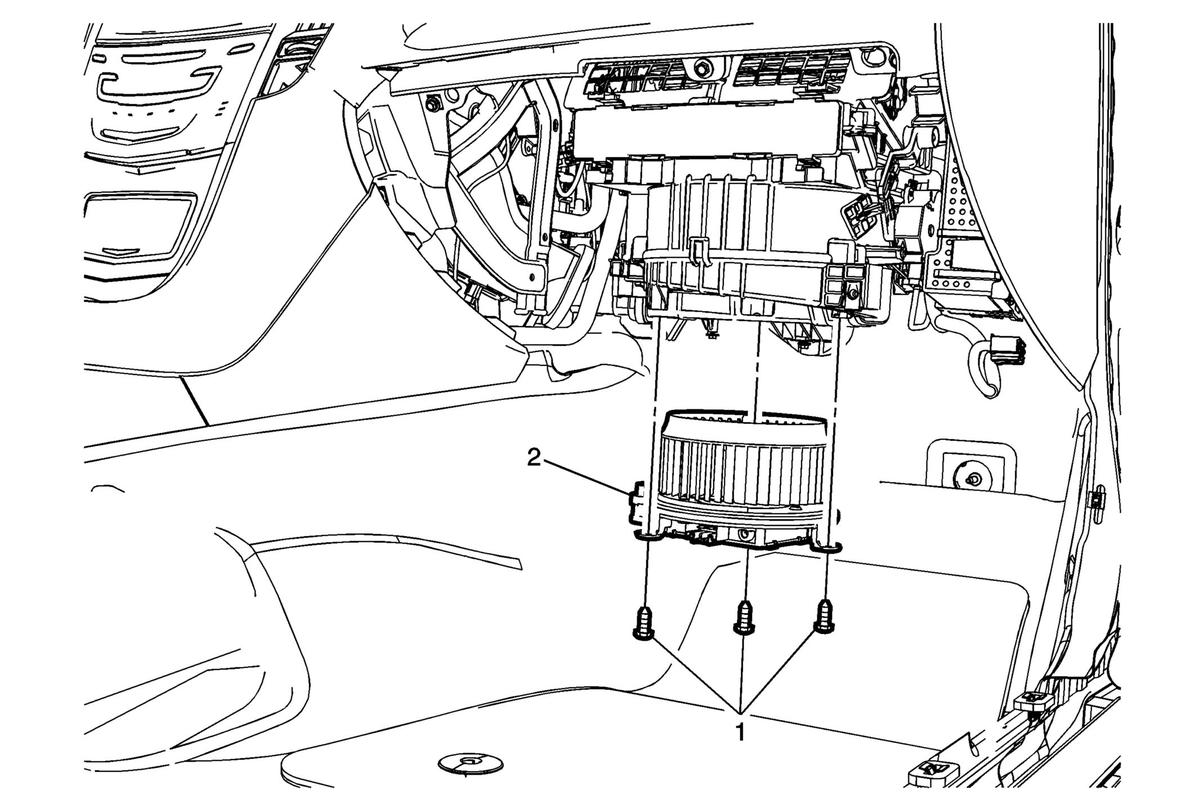

Fig 1: Blower Motor

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the right side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Right Side . Remove the passenger side inflatable restraint instrument panel lower module assembly. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side . Remove the harness retaining screw form the blower motor and reposition the wiring harness out of the way.
1	Blower Motor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Blower Motor Assembly Procedure Disconnect the blower motor connector.

Call out

Component Name

Preliminary Procedures

Remove the right side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
Remove the passenger side inflatable restraint instrument panel lower module assembly. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
Remove the harness retaining screw form the blower motor and reposition the wiring harness out of the way.

Blower Motor Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Blower Motor Assembly
Procedure
Disconnect the blower motor connector.
