Air Conditioning Refrigerant Desiccant Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

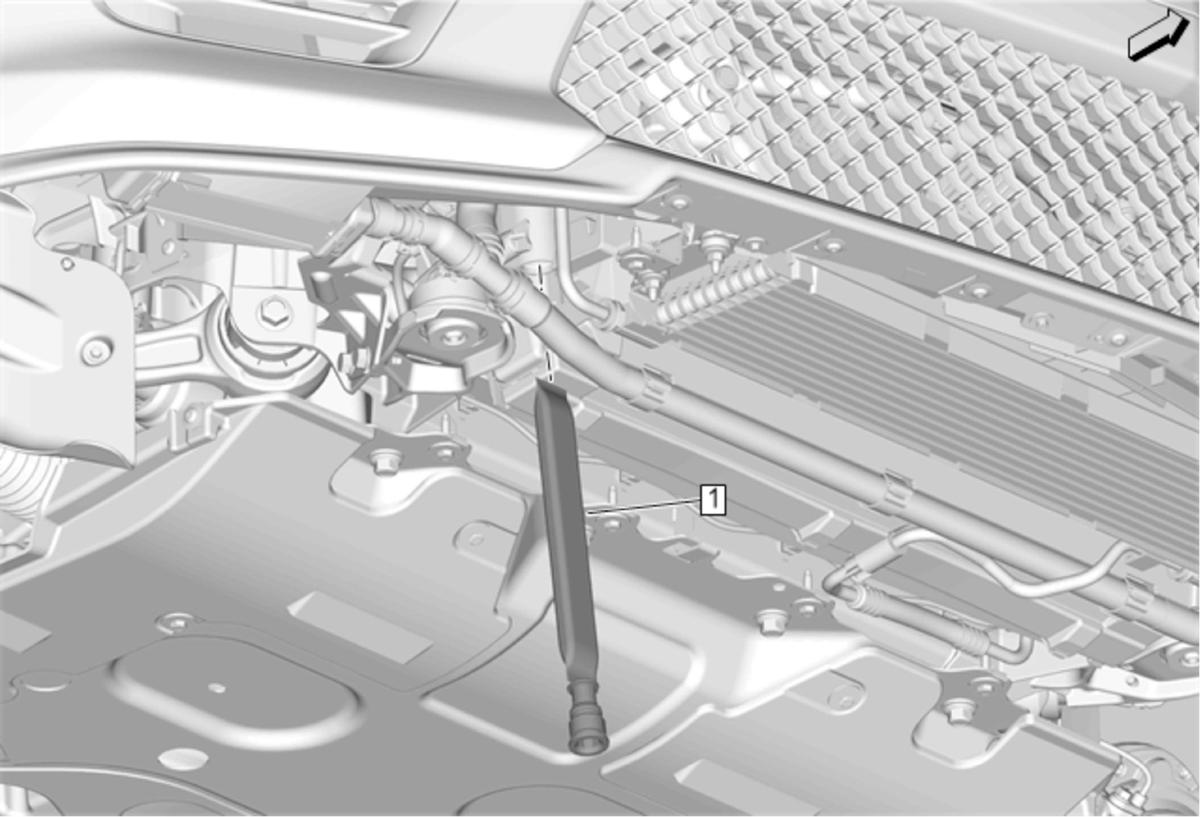

Fig 1: Air Conditioning Refrigerant Desiccant

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) . Remove Front Compartment Air Deflector. Refer to Front Compartment Air Deflector Replacement (V Series)
1	Air Conditioning Refrigerant Desiccant CAUTION: Refer to Component Fastener Tightening Caution . Tighten 12.5 N.m (9 lb ft)

Callout

Component Name

Preliminary Procedure

Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
Remove Front Compartment Air Deflector. Refer to Front Compartment Air Deflector Replacement (V Series)

Air Conditioning Refrigerant Desiccant

CAUTION:

Refer to Component Fastener Tightening Caution .

Tighten
12.5 N.m (9 lb ft)
