Air Conditioning Refrigerant Desiccant Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

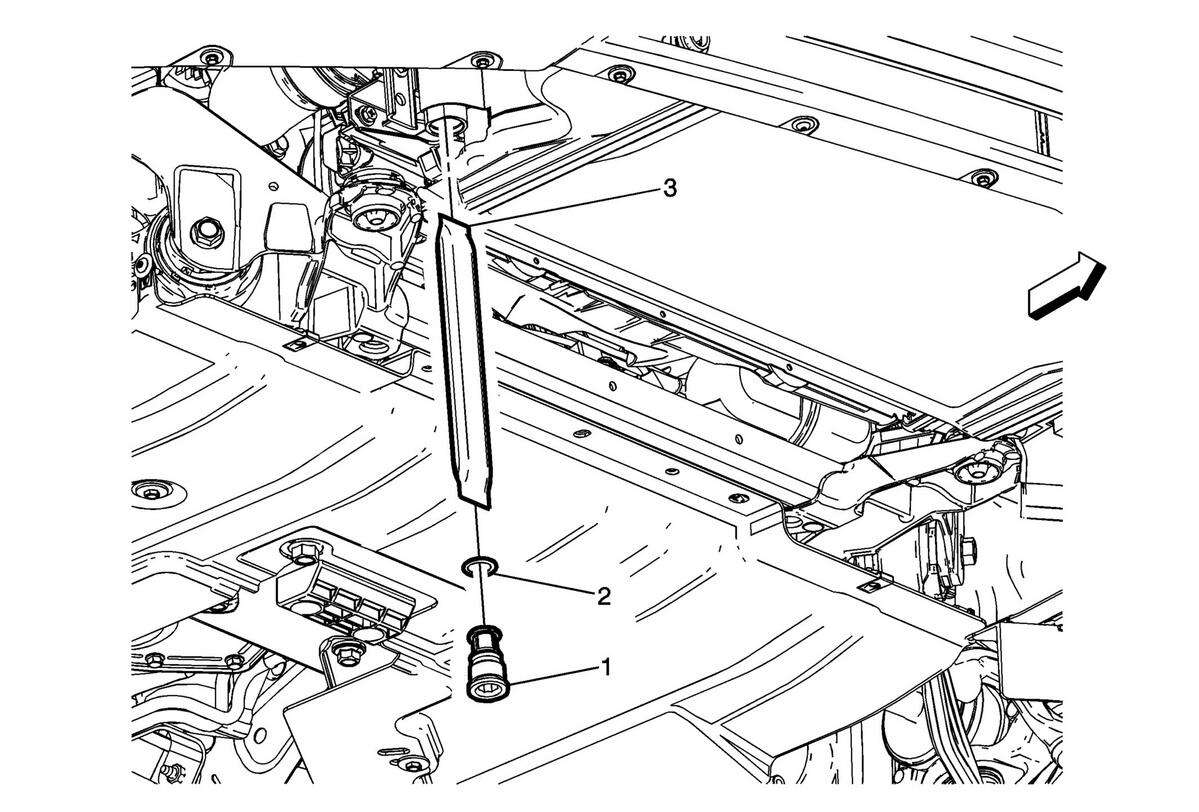

Fig 1: Air Conditioning Refrigerant Desiccant (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) Remove the front compartment air deflector. Refer to Front Compartment Air Deflector Replacement (V Series)
1	Air Conditioning Receiver and Dehydrator Plug CAUTION: Refer to Fastener Caution . Tighten 12 N.m (9 lb ft)
2	Air Conditioning Receiver and Dehydrator Cover Seal NOTE: Remove and discard the old O-ring and replace with a NEW O-ring. Refer to Air Conditioning O-Ring Seal Replacement
3	Air Conditioning Refrigerant Desiccant
