Air Conditioning Evaporator and Blower Case Drain Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

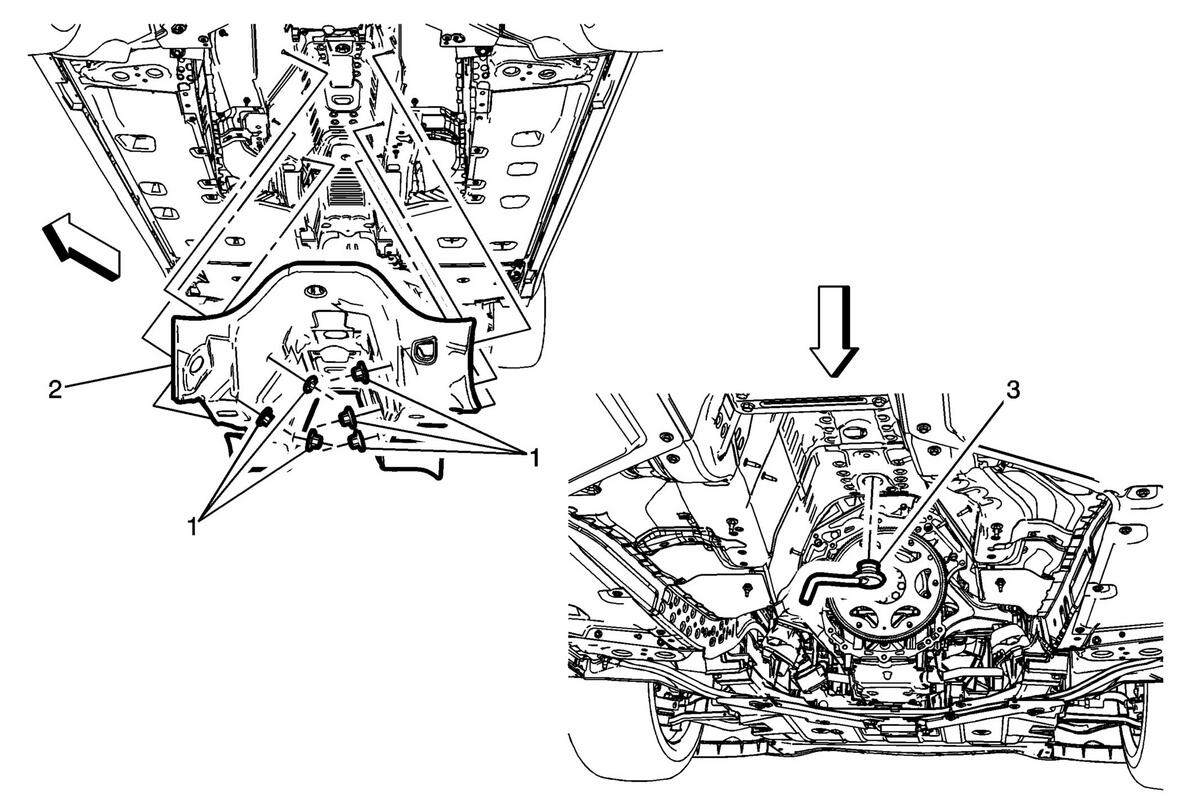

Fig 1: Air Conditioning Evaporator and Blower Case Drain

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right and left front body exhaust heat shield. Refer to Front Body Exhaust Heat Shield Replacement (Right)Front Body Exhaust Heat Shield Replacement (Left) . Remove the transmission assembly. Refer to Transmission Replacement (M5U with LF4 Engine)Transmission Replacement (M5N with LGX Engine)Transmission Replacement (M5N with LTG Engine)Transmission Replacement (M5T with LCV Engine) , or Transmission Replacement (M3L)Transmission Replacement (MG9) .
1	Floor Panel Tunnel Panel Outer Insulator Nut (Qty: 6) CAUTION: Refer to Fastener Caution .
2	Floor Panel Tunnel Panel Outer Insulator
3	Air Conditioning Evaporator and Blower Case Drain
