Air Conditioning Evaporator Thermal Expansion Valve Replacement (LTG)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

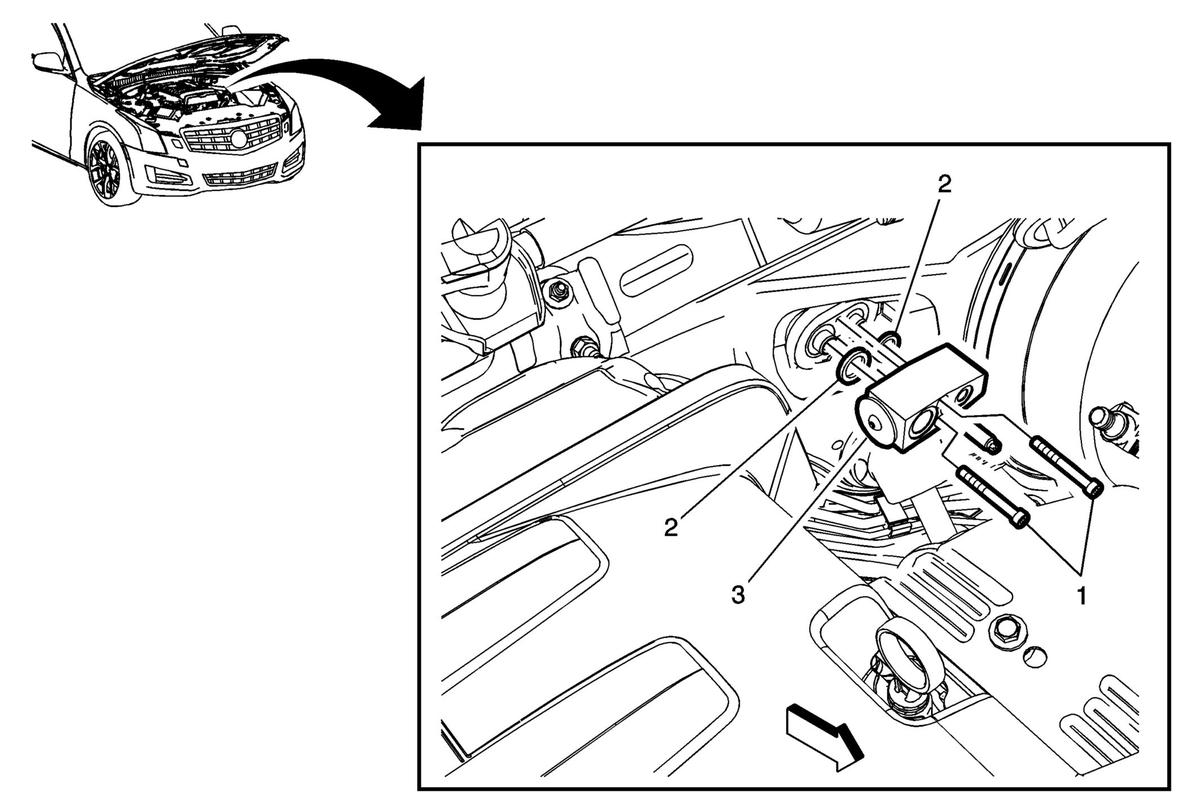

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) . Remove the air conditioning evaporator hose assembly from the thermal expansion valve. Refer to Air Conditioning Evaporator Hose Assembly Replacement (LCV, LTG) .
1	Air Conditioning Evaporator Thermal Expansion Valve Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Sealing Washer (Qty: 2) NOTE: Remove and discard the old sealing washers. Replace with NEW sealing washers. Refer to Air Conditioning System Seal Replacement .
3	Air Conditioning Evaporator Thermal Expansion Valve
