Air Conditioning Evaporator Thermal Expansion Valve Replacement (LF4, LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

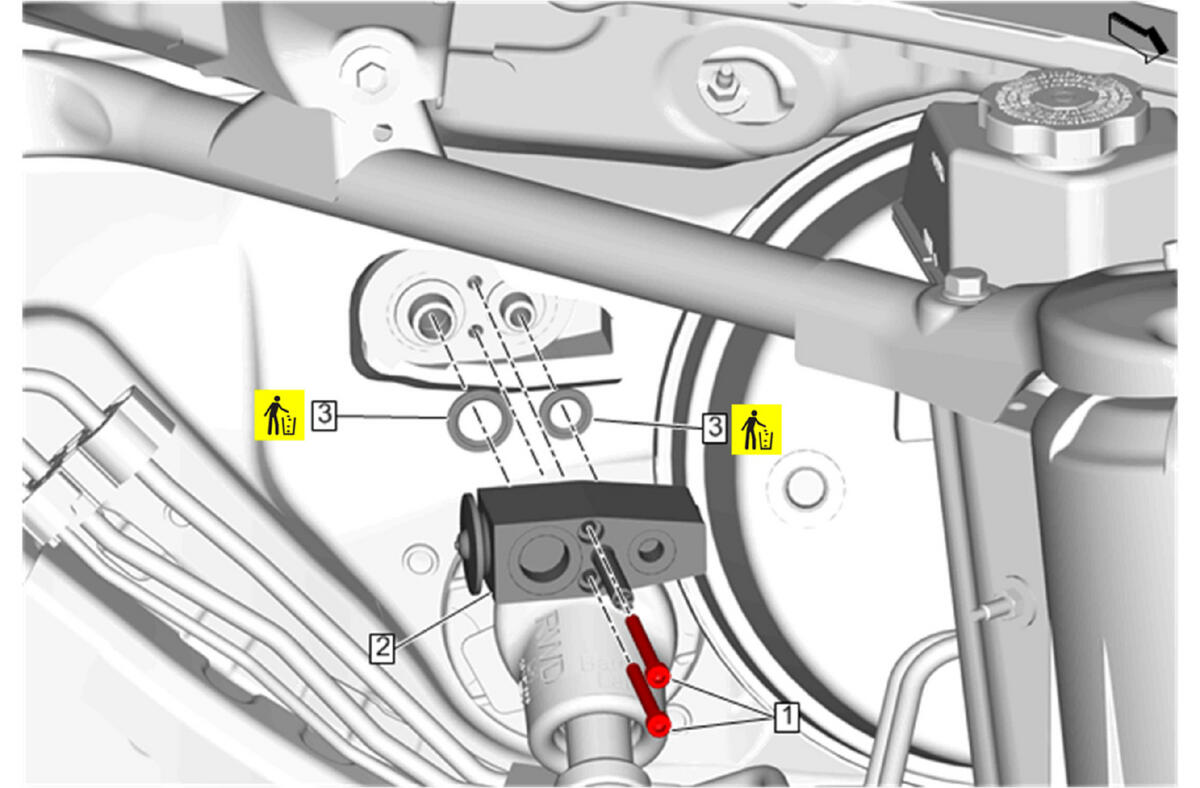

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve (LF4, LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) . Remove Air Conditioning Evaporator Hose Assembly. Refer to Air Conditioning Evaporator Hose Assembly Replacement (LF4, LGX)
1	Air Conditioning Evaporator Thermal Expansion Valve Bolt (Qty: 2) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 6 N.m (53 lb in)
2	Air Conditioning Evaporator Thermal Expansion Valve
3	Air Conditioning Evaporator Thermal Expansion Valve Seal (Qty: 2) Procedure Remove and DISCARD the sealing washer. Refer to Air Conditioning System Seal Replacement
