Air Conditioning Condenser Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

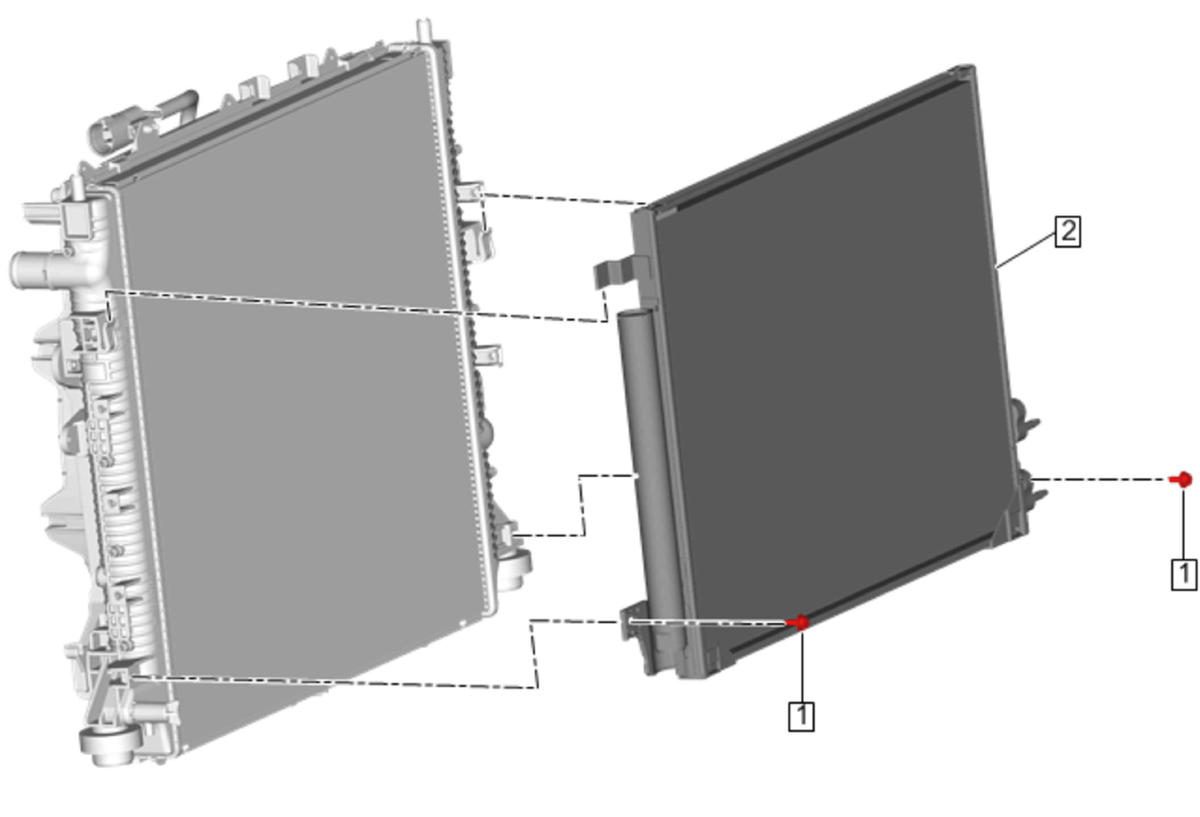

Fig 1: Air Conditioning Condenser (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) . Remove Radiator. Refer to Radiator Replacement (LF4)
1	Air Conditioning Condenser Brace Bolt CAUTION: Refer to Component Fastener Tightening Caution . Tighten 6 N.m (53 lb in)
2	Air Conditioning Condenser

Callout

Component Name

Preliminary Procedure

Recover the air conditioning system refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
Remove Radiator. Refer to Radiator Replacement (LF4)

Air Conditioning Condenser Brace Bolt

CAUTION:

Refer to Component Fastener Tightening Caution .

Tighten
6 N.m (53 lb in)

Air Conditioning Condenser
