Air Conditioning Clutch Assembly Replacement (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

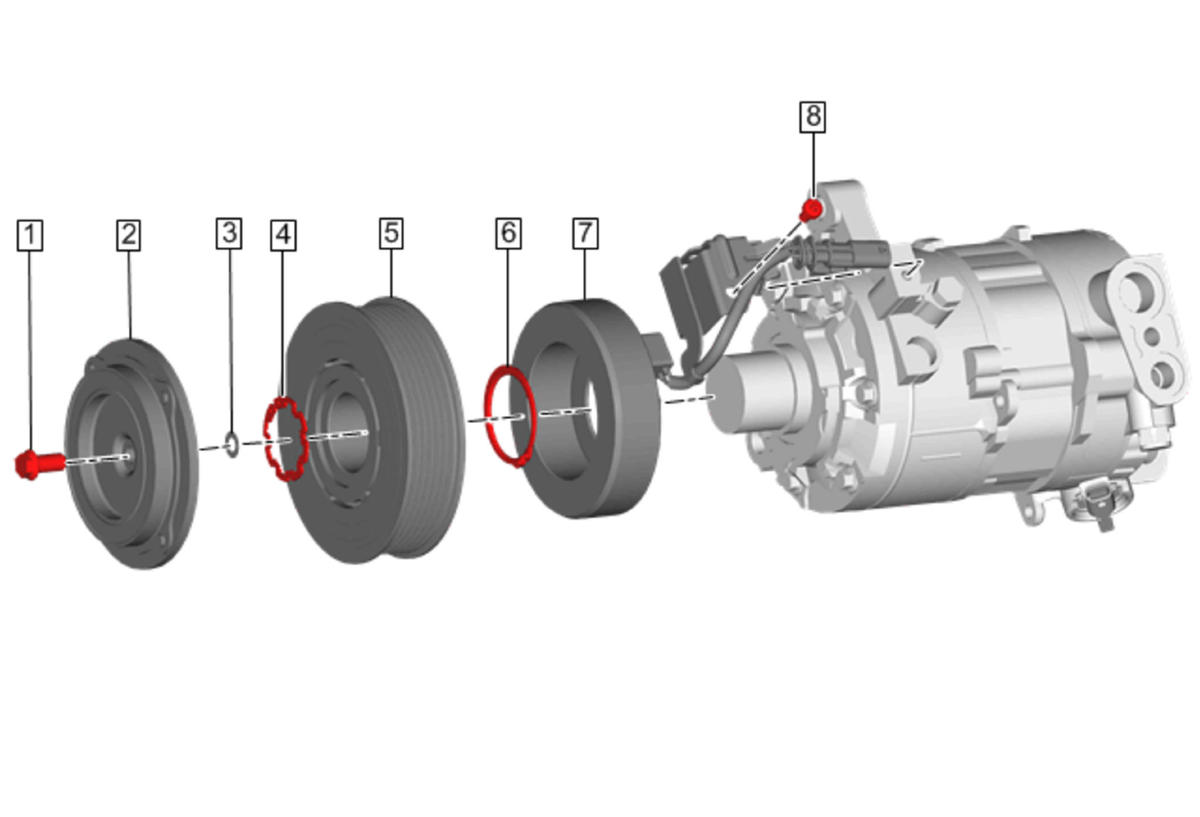

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Air Conditioning Compressor. Refer to Air Conditioning Compressor Replacement (LF4) |
|
| 1 | Air Conditioning Compressor Pulley Bolt
CAUTION:
Refer to Fastener Caution . Procedure Use the CH-37872 universal spanner wrench to hold the compressor clutch plate from turning when removing the nut. Tighten 18 N.m (13 lb ft) Special Tools CH-37872 Universal Spanner Wrench Special Tools . |
| 2 | Air Conditioning Compressor Clutch Procedure Measure and adjust the air conditioning clutch. Refer to Air Conditioning Clutch Drive Plate Adjustment (LCV, LTG) . |
| 3 | Air Conditioning Compressor Pulley Washer (Qty: 3) |
| 4 | Retaining Ring |
| 5 | Air Conditioning Compressor Pulley |
| 6 | Retaining Ring |
| 7 | Air Conditioning Compressor Clutch Coil |
| 8 | Air Conditioning Compressor Bracket Bolt |
