Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LTG)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

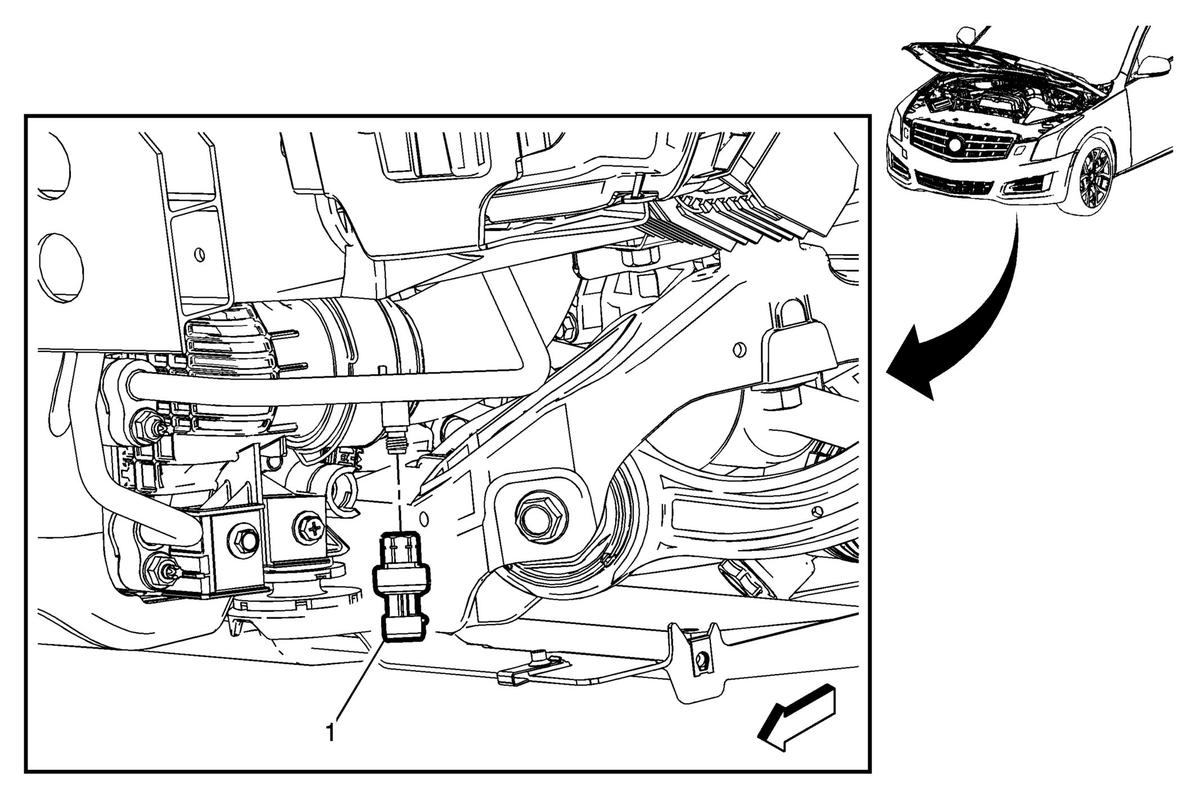

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series) . Disconnect the electrical connector from the air conditioning refrigerant pressure sensor.
1	Air Conditioning Refrigerant Pressure Sensor CAUTION: Refer to Fastener Caution . NOTE: Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement . Tighten 7 N.m (62 lb in)

Callout

Component Name

Preliminary Procedures

Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series) .
Disconnect the electrical connector from the air conditioning refrigerant pressure sensor.

Air Conditioning Refrigerant Pressure Sensor

CAUTION:

Refer to Fastener Caution .

NOTE:

Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement .

Tighten
7 N.m (62 lb in)
