Front Side Door Trim Panel Applique Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

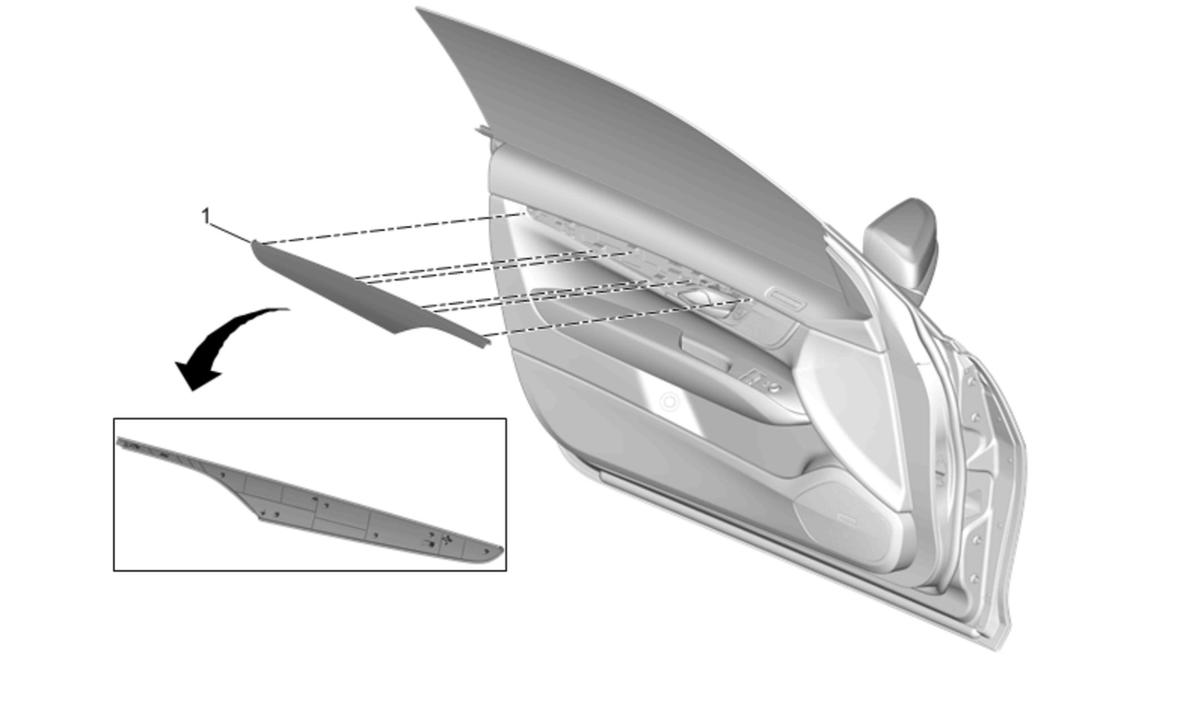

| Callout | Component Name |
|---|---|
| 1 | Front Side Door Trim Panel Applique Assembly Procedure Using a flat-bladed plastic trim tool, start at the rear of the door trim panel applique and gently insert trim tool to lift the front side door trim panel applique from the door trim assembly. Pull rearward to disengage foot on the front of the front side door trim panel applique. |
