Body Pressure Relief Valve Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Call out | Component Name |
|---|---|
| Preliminary Procedure Refer to Rear Bumper Fascia Replacement |
|

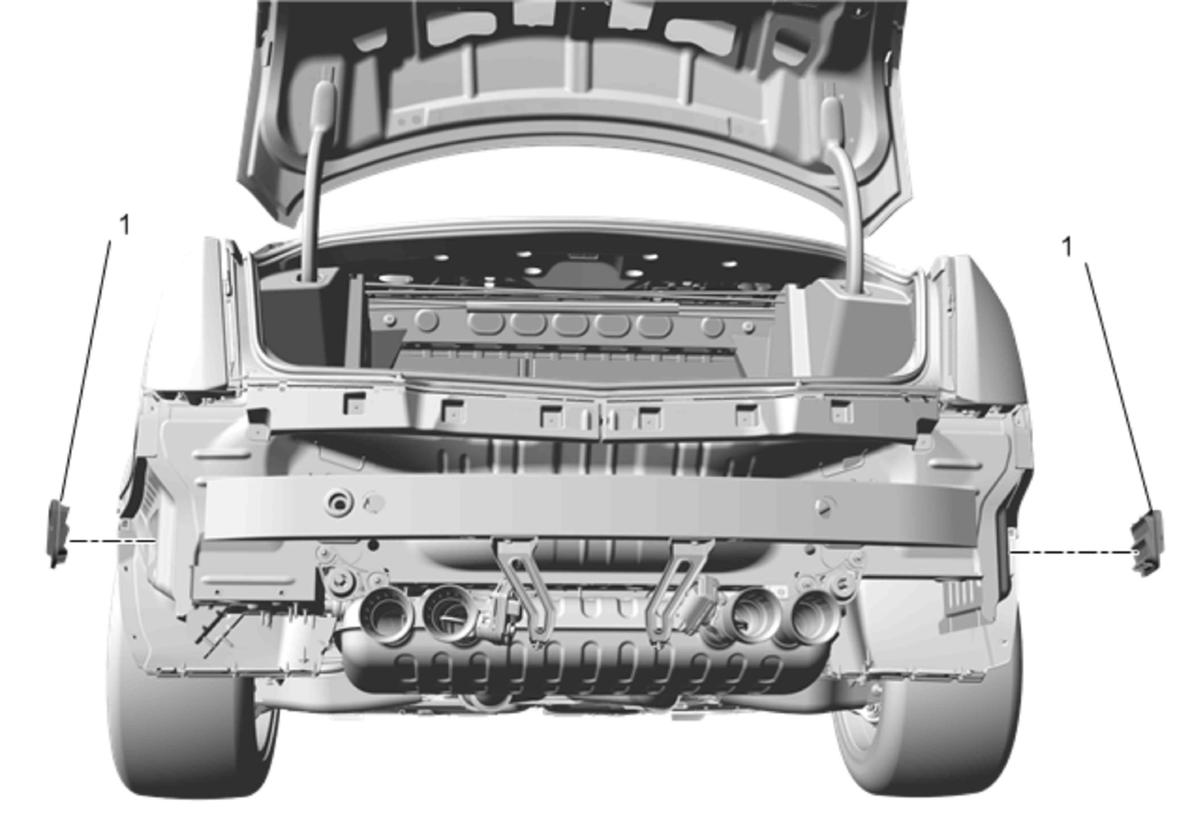

| 1 | Body Pressure Relief Valve Procedure Using the appropriate flat blade tool, release the tabs attaching the valves to the rear end panel to remove the body pressure relief valve. |
