Rear Side Door Weatherstrip Replacement - Door Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

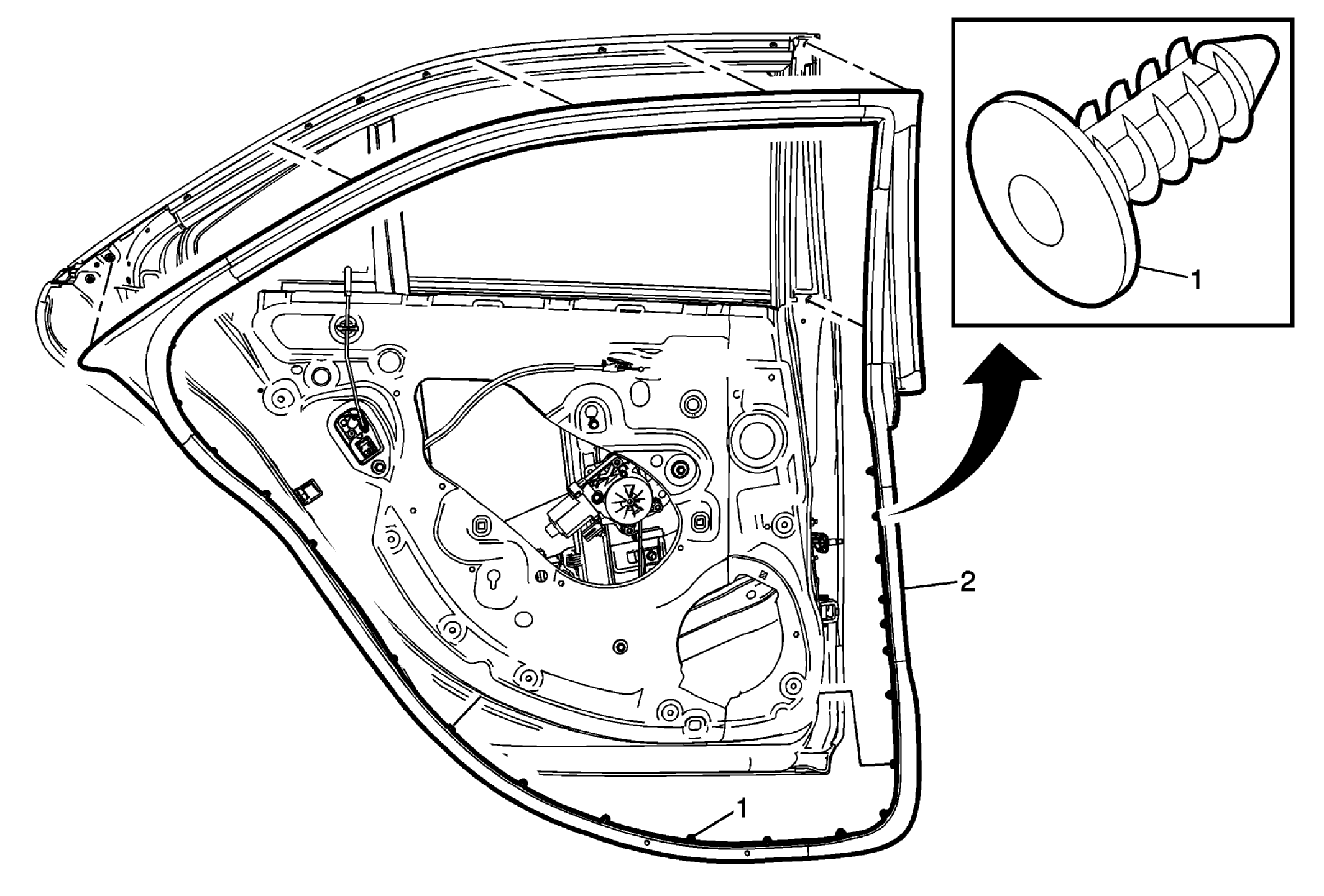

Fig 1: Rear Side Door Weatherstrip & Retainers - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Weatherstrip Retainer (Qty: 34) Procedure Open the rear side door fully. Remove the checklink bolt to the pillar. Refer to Rear Side Door Check Link Replacement . Using a suitable tool, remove the retainers from around the door. After removing the weatherstrip and retainers, clean the inside door edge surface with a 50/50 mixture of isopropyl alcohol and clean water by volume on a dampened lint free cloth.
2	Rear Side Door Weatherstrip NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Rear Side Door Weatherstrip Retainer (Qty: 34)

Procedure

Open the rear side door fully.
Remove the checklink bolt to the pillar. Refer to Rear Side Door Check Link Replacement .
Using a suitable tool, remove the retainers from around the door.
After removing the weatherstrip and retainers, clean the inside door edge surface with a 50/50 mixture of isopropyl alcohol and clean water by volume on a dampened lint free cloth.

Rear Side Door Weatherstrip

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
