Rear Side Door Upper Hinge and Lower Hinge Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

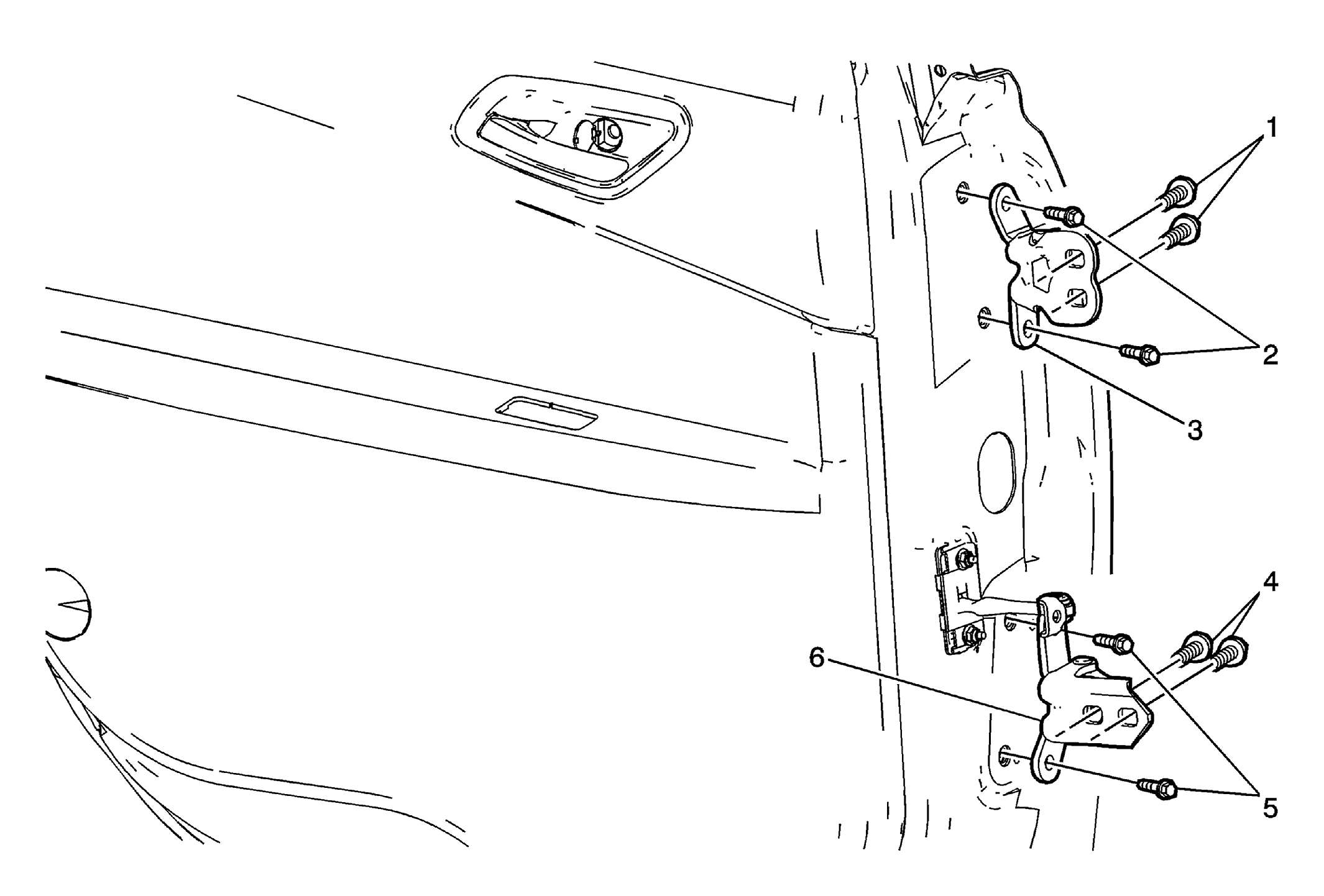

Fig 1: Rear Side Door Upper Hinge and Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Upper Hinge to Body Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Do not remove the door from the vehicle to do this procedure. Keep the rear door in the closed position to replace the hinge Mark the location of the hinge before removing the bolts with a grease pencil. Tighten 32 N.m (24 lb ft)
2	Rear Side Door Upper Hinge to Door Bolts (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Rear Side Door Upper Hinge Assembly Procedure Check the door for proper alignment, adjust as necessary.
4	Rear Side Door Lower Hinge to Body Bolts (Qty: 2) Tighten 32 N.m (24 lb ft)
5	Rear Side Door Lower Hinge to Door Bolts (Qty: 2) Tighten 25 N.m (18 lb ft)
6	Rear Side Door Lower Hinge Assembly Procedure Check the door for proper alignment, adjust as necessary. Refer to Rear Side Door Adjustment .
