Rear Side Door Lower Weatherstrip Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

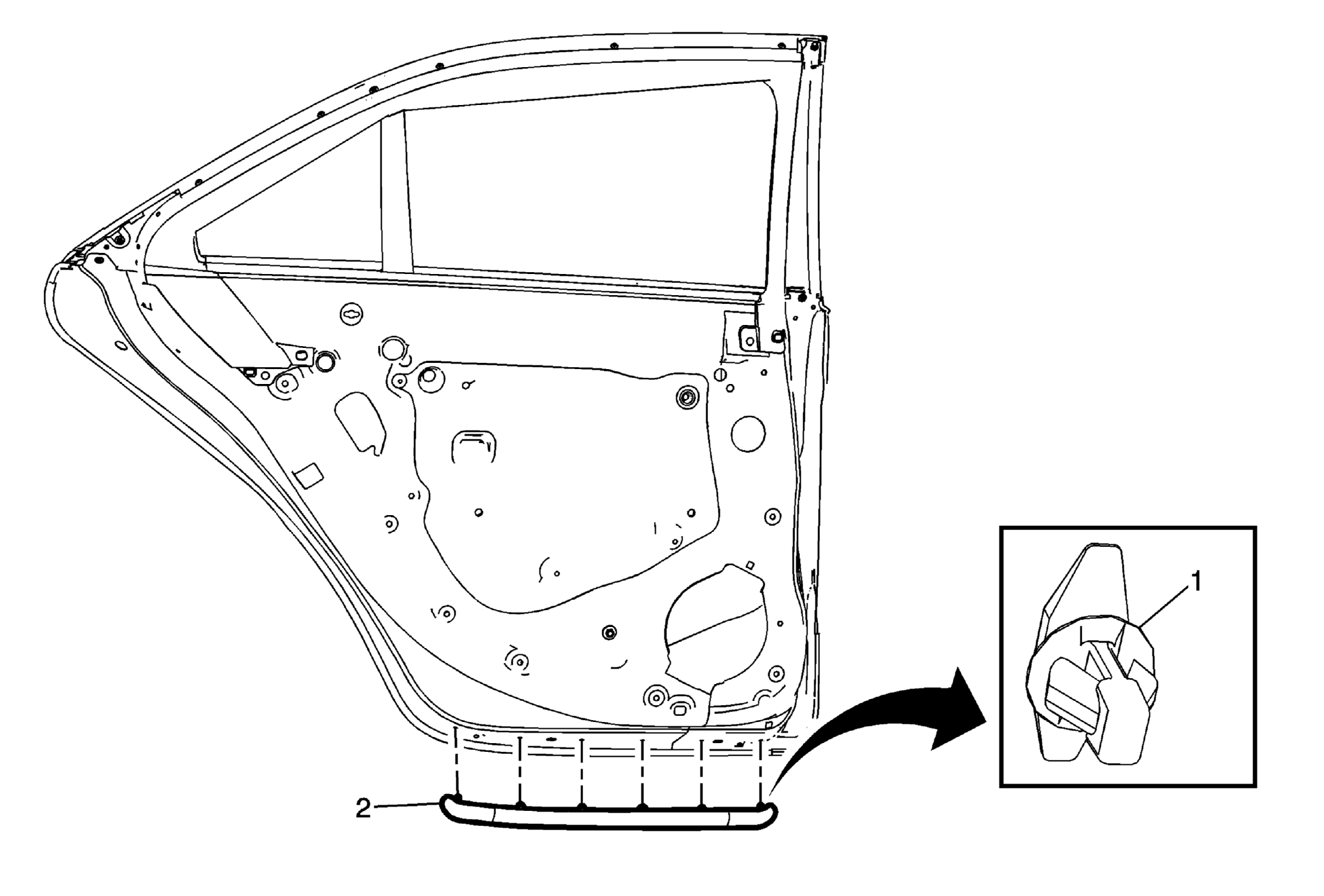

Fig 1: Rear Side Door Lower Weatherstrip & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Lower Weatherstrip Retainer (Qty: 6) Procedure Open the rear side door fully. Using a suitable tool, remove the weatherstrip retainers from around the door. After removing the weatherstrip, clean the door edge surface with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
2	Rear Side Door Lower Weatherstrip NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Rear Side Door Lower Weatherstrip Retainer (Qty: 6)

Procedure

Open the rear side door fully.
Using a suitable tool, remove the weatherstrip retainers from around the door.
After removing the weatherstrip, clean the door edge surface with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.

Rear Side Door Lower Weatherstrip

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
