Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

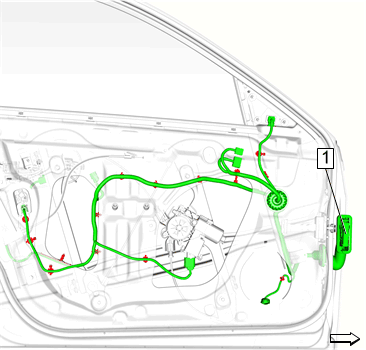

    Fig 1: Front Side Door Wiring Harness
    GM4607148Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Side Door Wiring Harness (1).

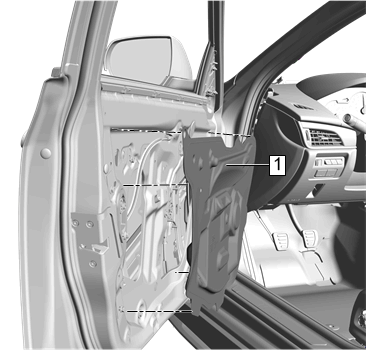

    2. Fig 2: Front Side Door Water Deflector
    GM4607138Courtesy of GENERAL MOTORS COMPANY
  2. Install Front Side Door Water Deflector (1).

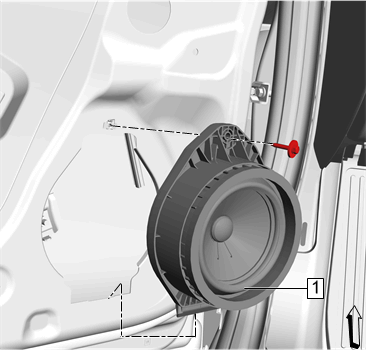

    3. Fig 3: Radio Front Side Door Speaker
    GM4607127Courtesy of GENERAL MOTORS COMPANY
  3. Install Radio Front Side Door Speaker (1). Refer to Radio Front Side Door Speaker Replacement (Sedan)
