Front Side Door Front Auxiliary Weatherstrip Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

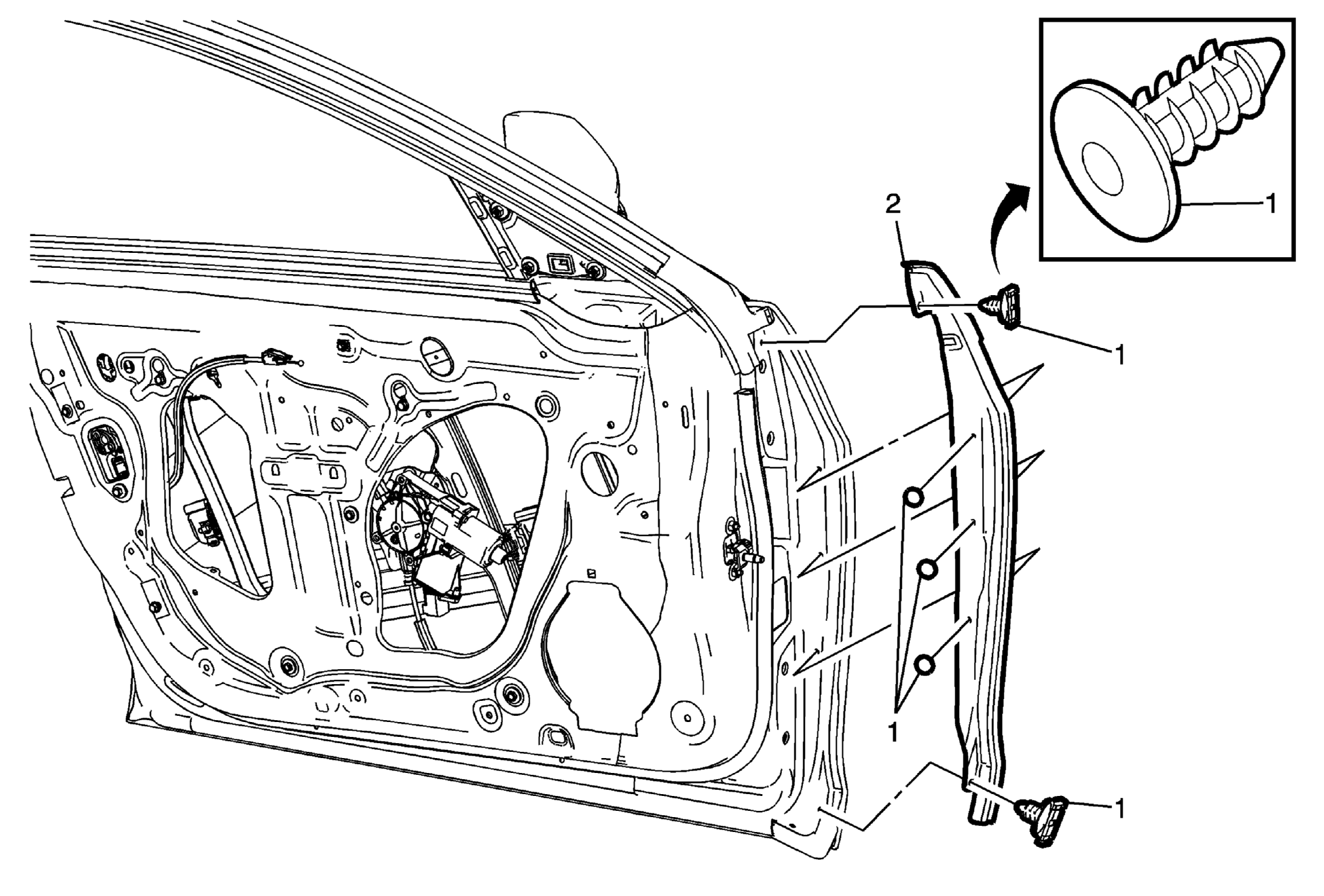

Fig 1: Front Side Door Front Auxiliary Weatherstrip (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Front Auxiliary Weatherstrip Retainer (Qty: 5) Procedure Open the front side door fully. Using a suitable tool, remove both upper and lower retainers first, then release the center retainer. After removing the weatherstrip, clean the door edge surface with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
2	Front Side Door Front Auxiliary Weatherstrip NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Front Side Door Front Auxiliary Weatherstrip Retainer (Qty: 5)

Procedure

Open the front side door fully.
Using a suitable tool, remove both upper and lower retainers first, then release the center retainer.
After removing the weatherstrip, clean the door edge surface with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.

Front Side Door Front Auxiliary Weatherstrip

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
