Section 180 (Battery, Charging System And Starting System)
>>
Schematic Wiring Diagrams
>>
Starting and Charging Wiring Schematics (KL9 with M3L)
>>
Stop/Start System
Stop/Start System
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

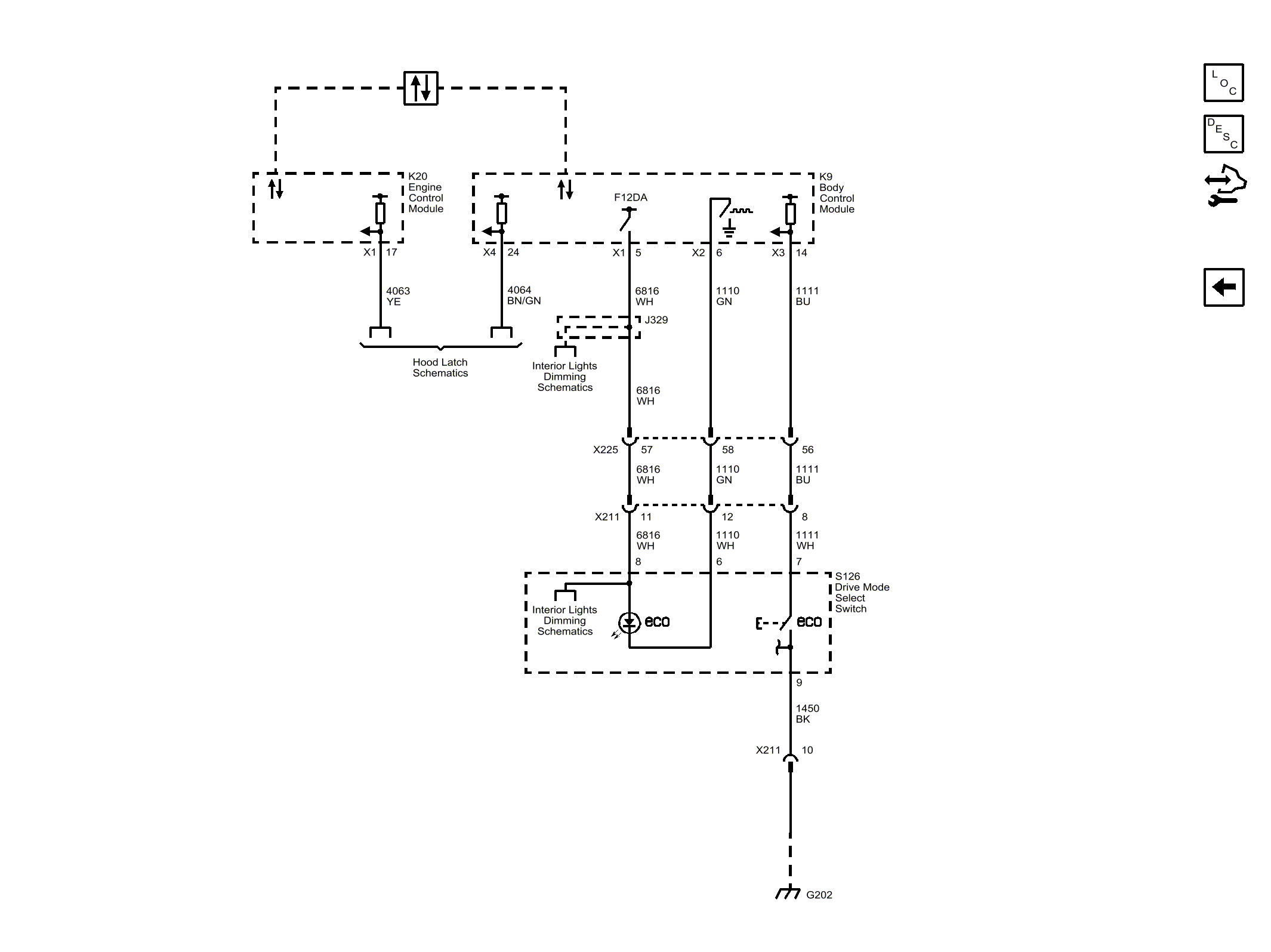

Fig 1: Stop/Start System
Courtesy of GENERAL MOTORS COMPANY
