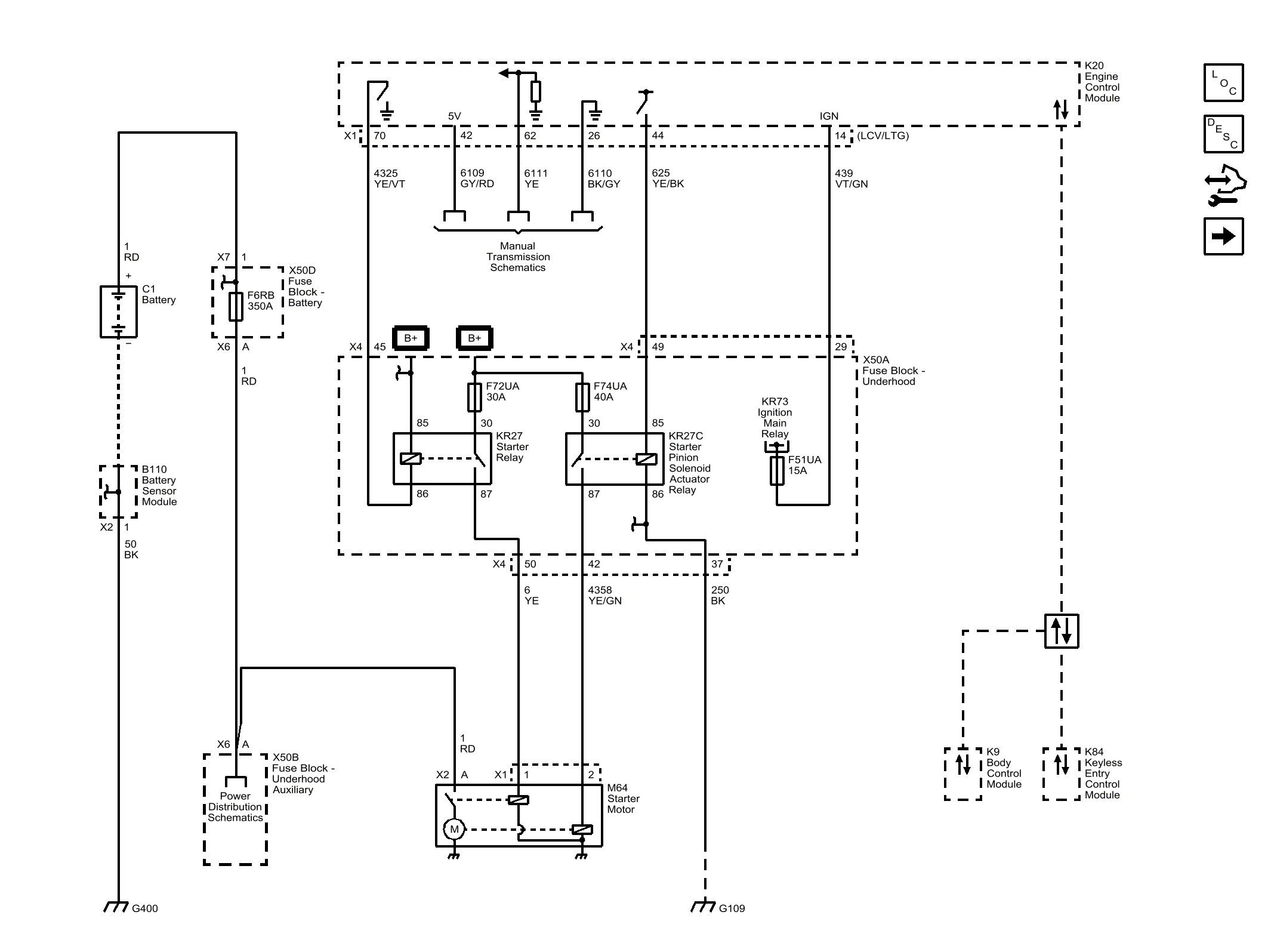

Starting and Charging Wiring Schematics (KL9 with M3L): Starting

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
