Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Pre-Fuse Block
    GM2829735Courtesy of GENERAL MOTORS COMPANY
  1. Attach the following to the pre-fuse block:
    • Starter Solenoid Cable (5)
    • Battery Positive Cable (4)
      • CAUTION:

      Refer to Fastener Caution .

    • Battery Positive Barrel Fastener (3). Tighten to 12 N.m (106 lb in).
    • Pre-Fuse Block Cover (2)
    • Battery Jumper Post Cover (1)

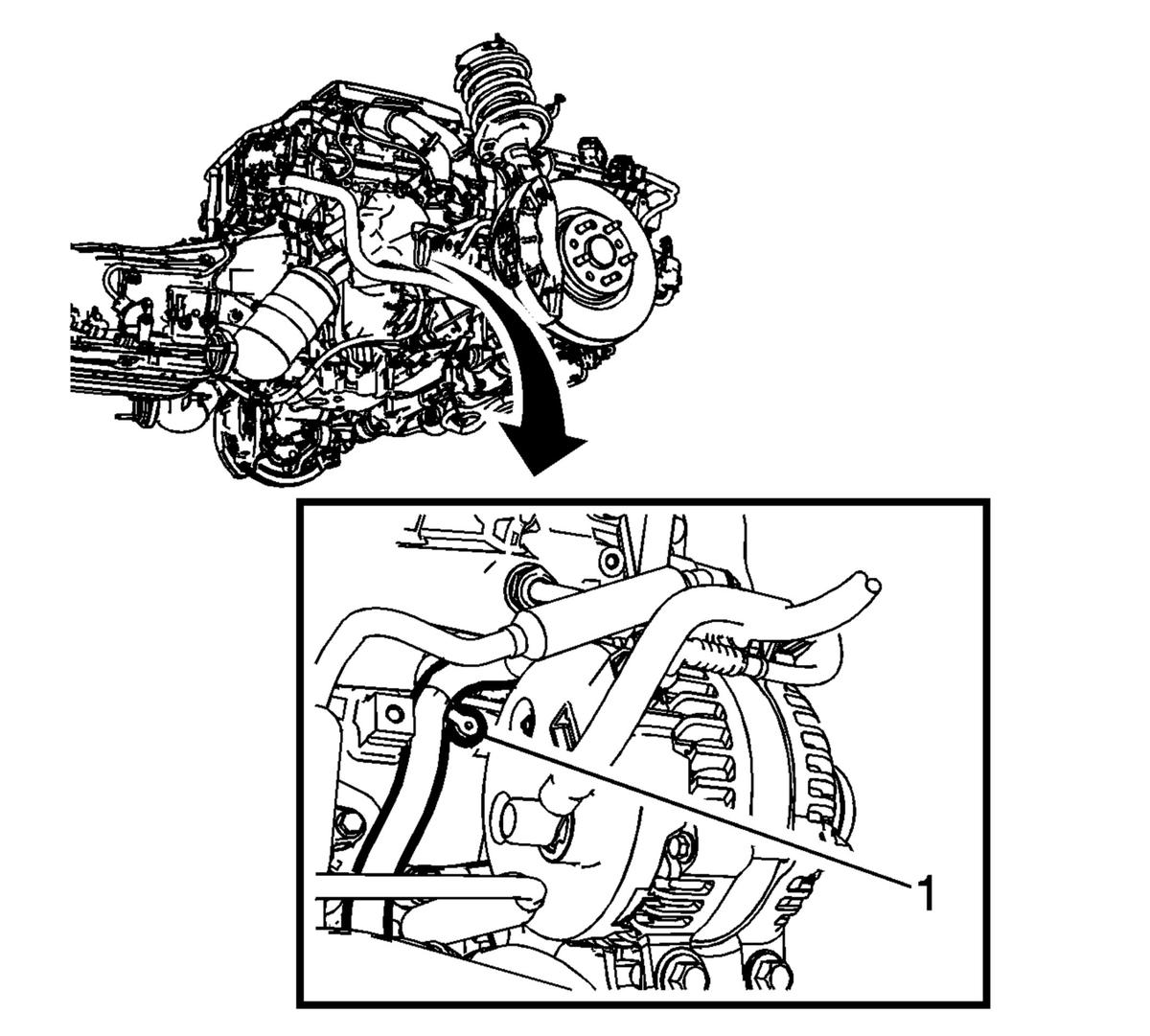

    2. Fig 2: Starter Solenoid Cable Retainer Behind Generator
    GM3556456Courtesy of GENERAL MOTORS COMPANY
  2. Engage Wiring Harness Retainer (1)

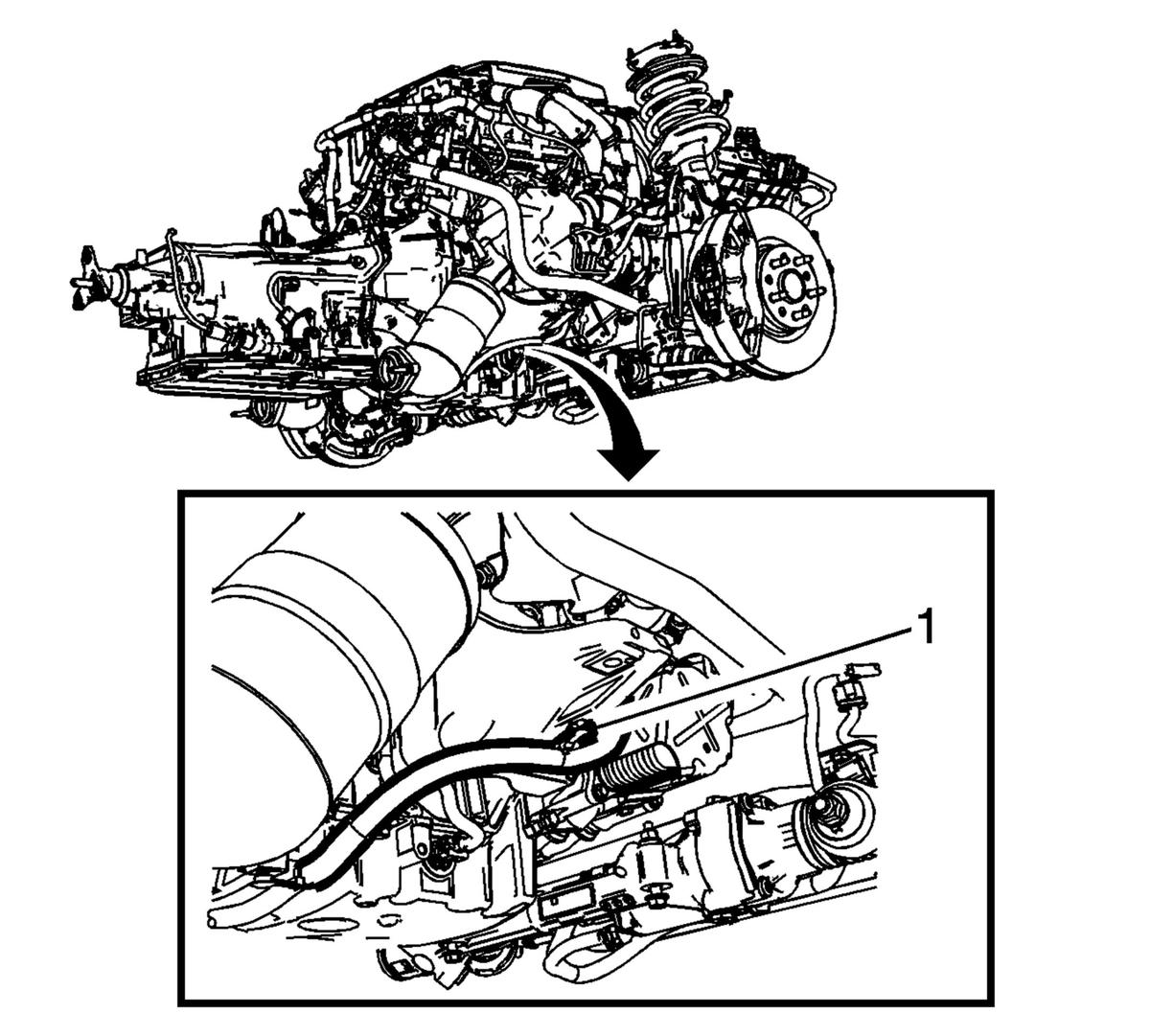

    3. Fig 3: Starter Solenoid Cable Retainer
    GM3556460Courtesy of GENERAL MOTORS COMPANY
  3. Engage Wiring Harness Retainer (1)

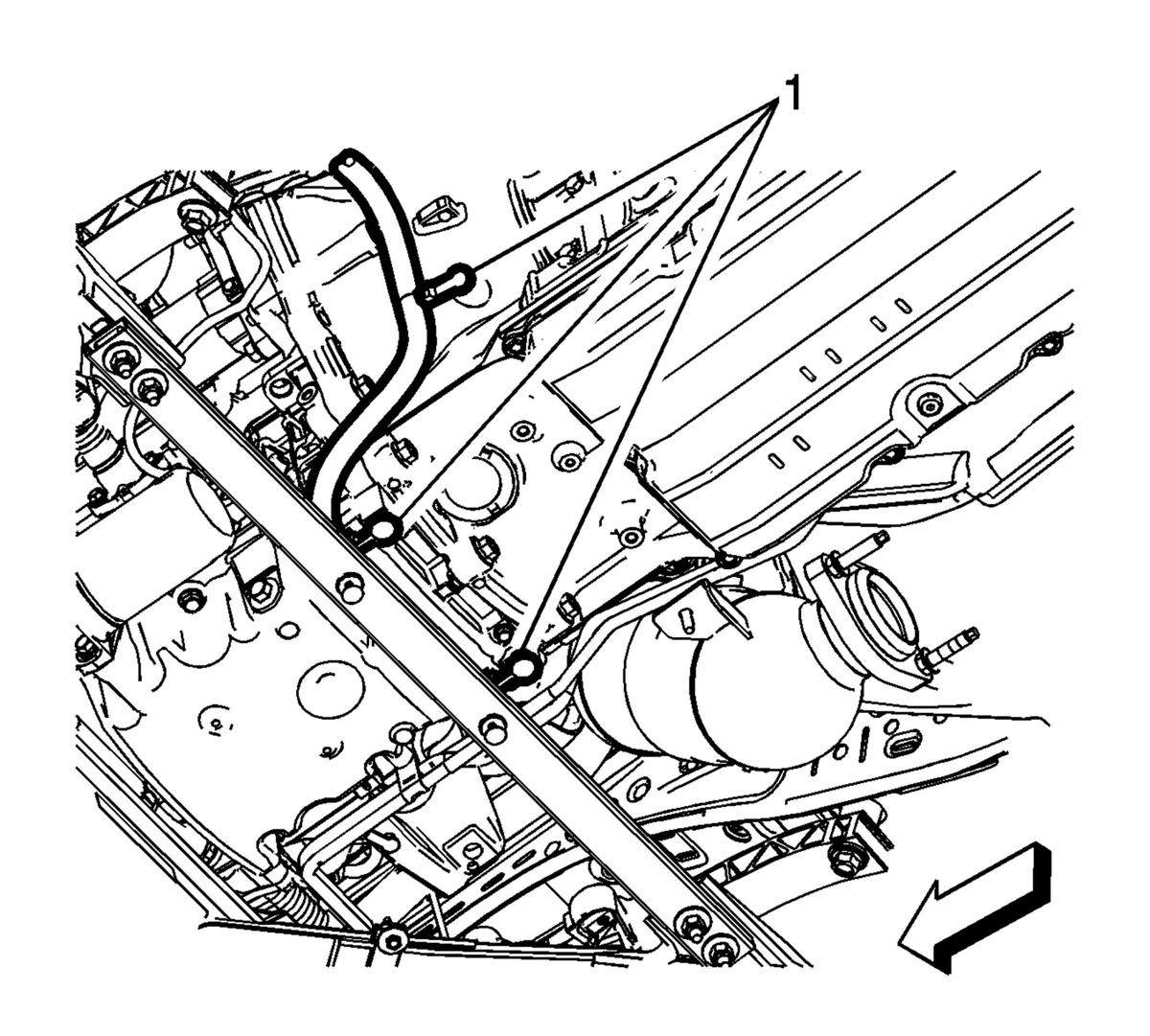

    4. Fig 4: Starter Solenoid Cable Retainers Around Transmission Housing
    GM3556461Courtesy of GENERAL MOTORS COMPANY
  4. Engage Wiring Harness Retainer (1) (Qty: 3)

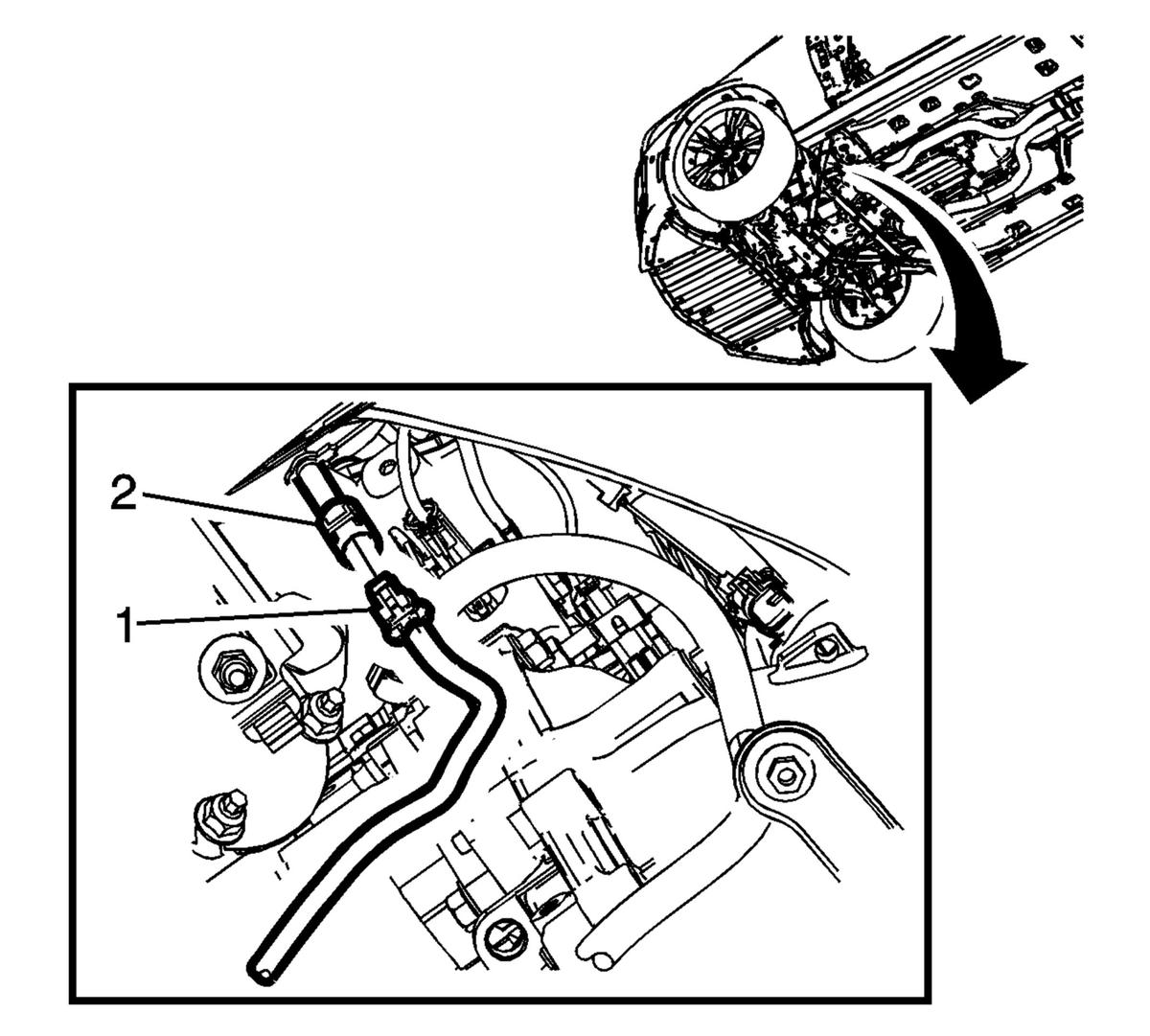

    5. Fig 5: Starter Solenoid Cable
    GM3556462Courtesy of GENERAL MOTORS COMPANY
  5. Connect the starter solenoid cable connector (1) to the engine harness connector (2).

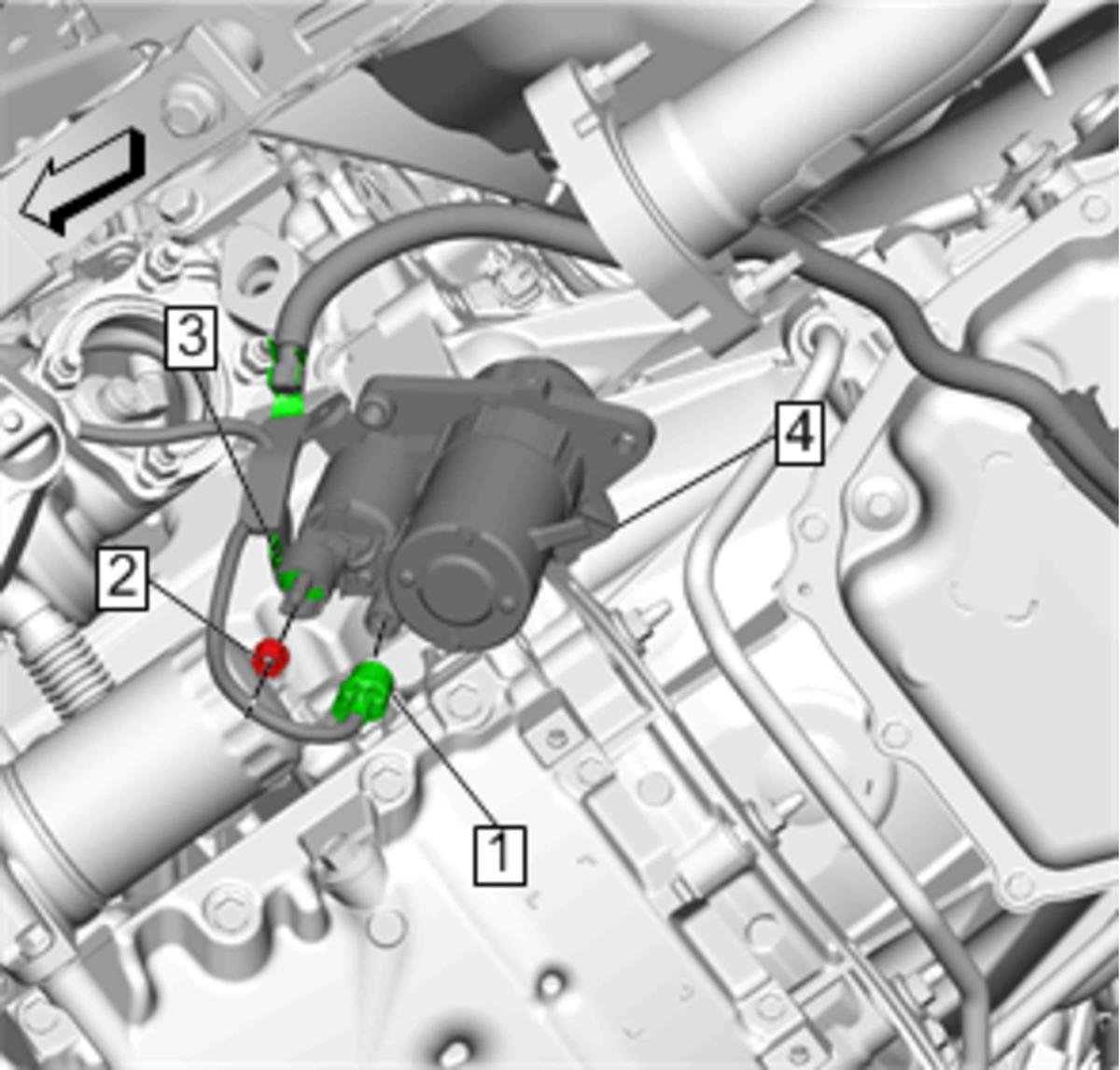

    6. Fig 6: Starter Solenoid Connector
    GM4277291Courtesy of GENERAL MOTORS COMPANY
  6. Connect Starter Solenoid Connector (1)
  7. Install Starter Solenoid Cable (3)
  8. Install and tighten Starter Solenoid Cable Nut (2) to 12.5 N.m (111 lb in)
  9. Install Starter (4). Refer to Starter Replacement (LF4 - Manual Transmission) Starter Replacement (LF4 - Automatic Transmission)
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
